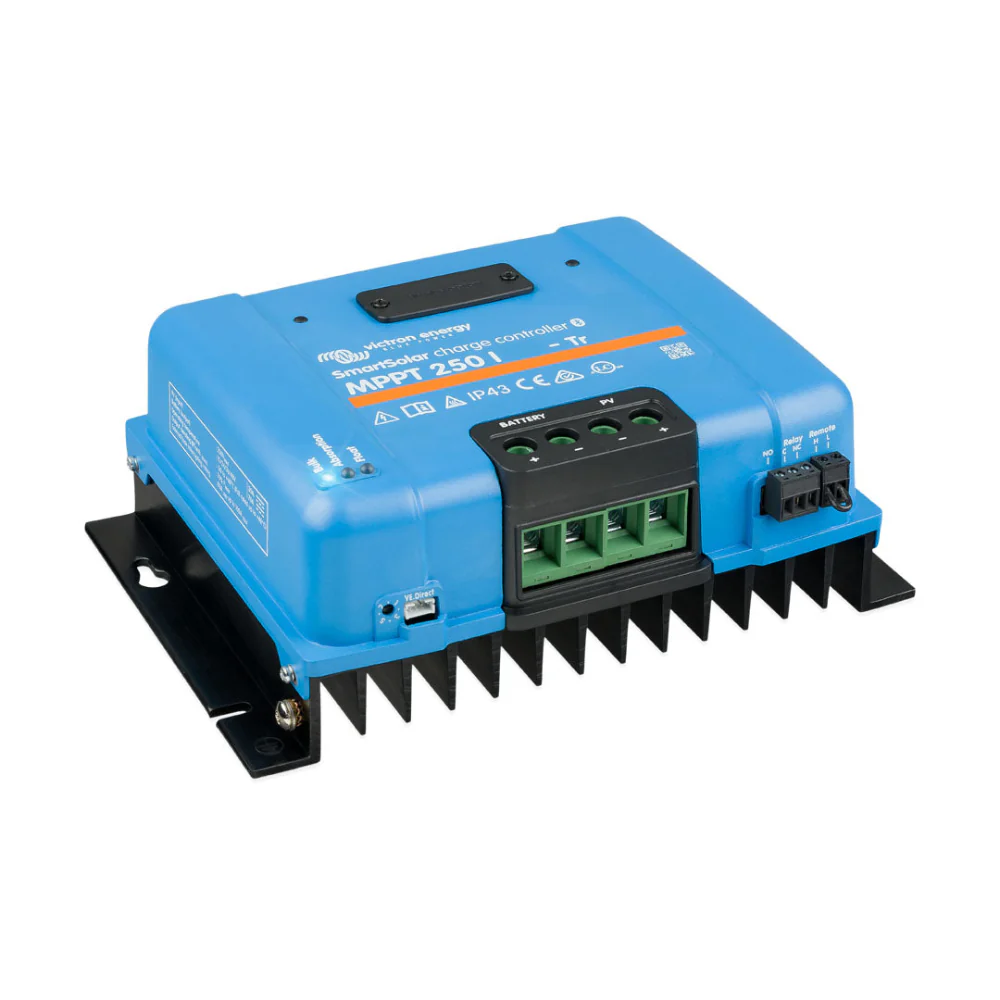

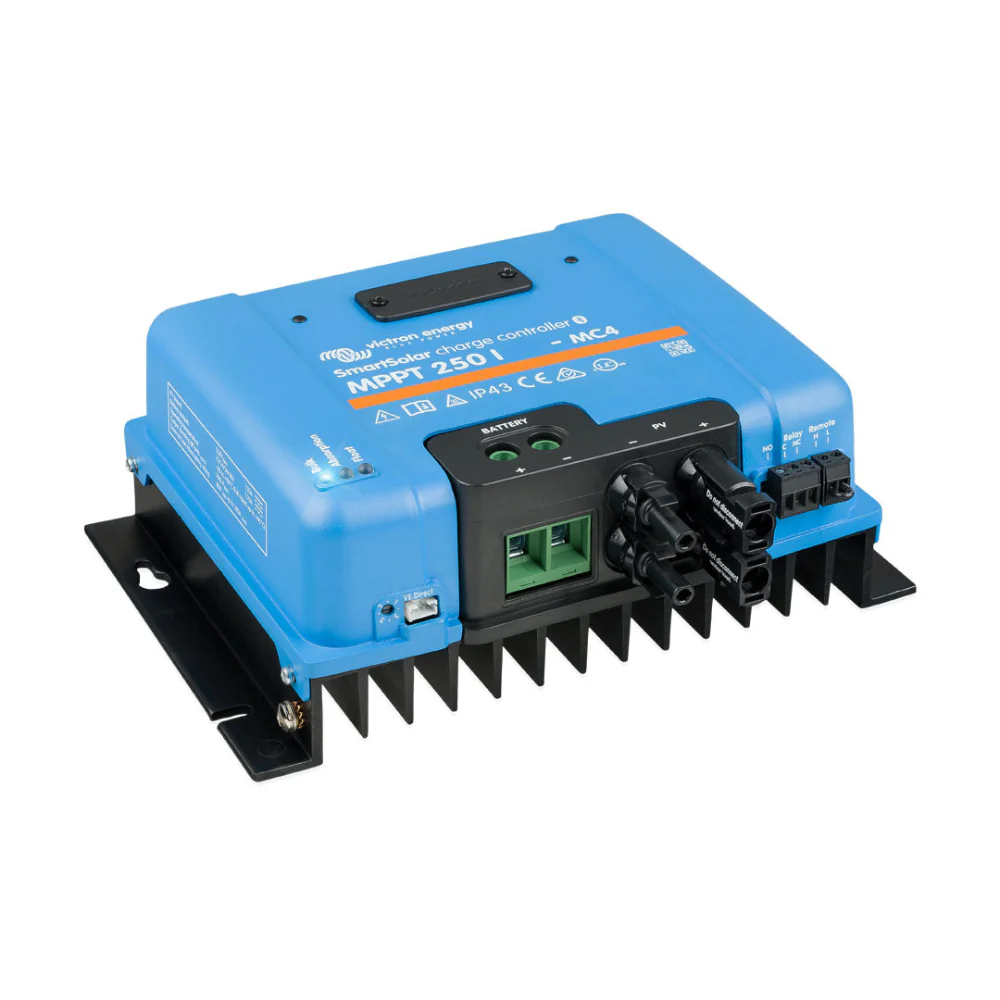

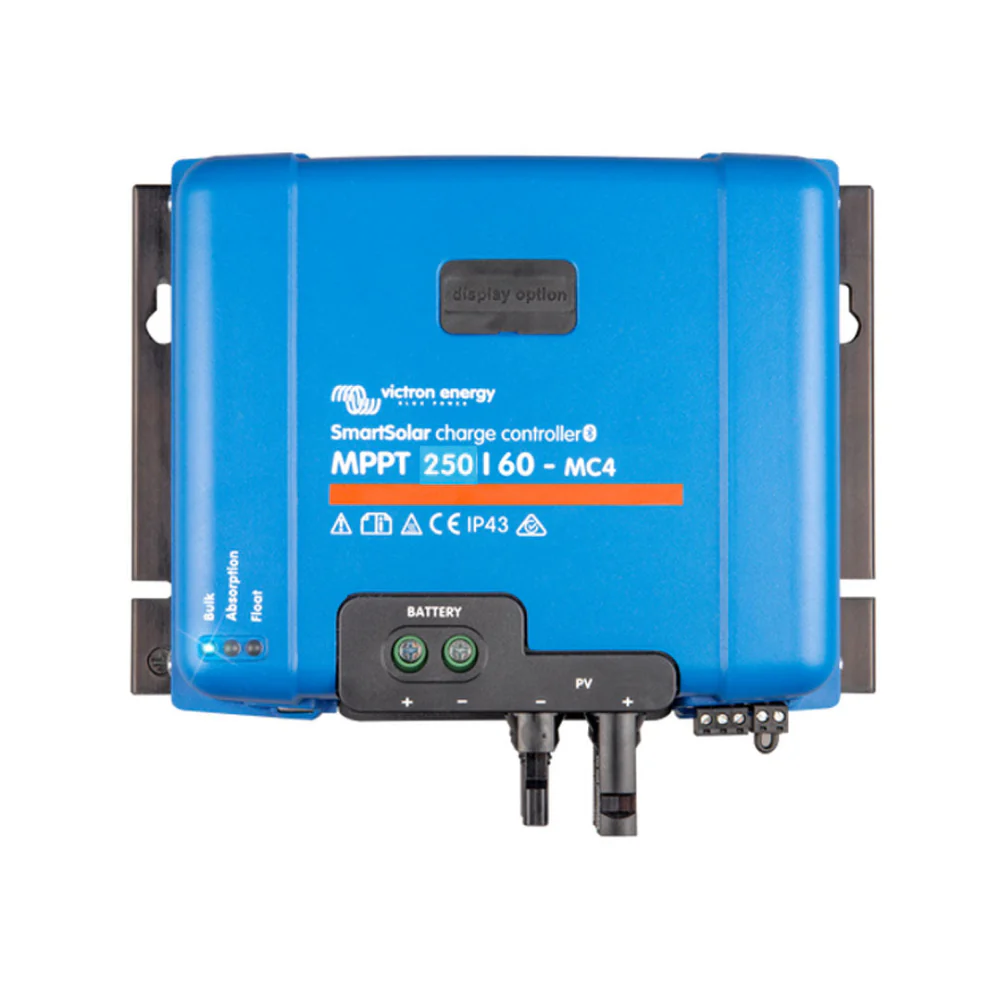

Victron SmartSolar MPPT 250/60 Charge Controller - Tr and MC4 models

Designed to enhance solar energy performance, the Victron SmartSolar MPPT 250/60 Charge Controller features ultra-fast tracking to increase energy harvest, especially in variable lighting conditions.

These Victron Smartsolar controllers can be paired with 12V, 24V, 36V or 48V battery systems and offer automatic voltage detection (36v manual) for flexible use across multiple applications.

Built with efficiency and protection in mind, the SmartSolar range exceeds 99% conversion efficiency and operates without a cooling fan. Integrated Bluetooth enables wireless setup, monitoring and updates.

Available Options:

Main Features

Ultra-fast MPPT tracking boosts energy harvest by up to 30%
Bluetooth is built in for remote configuration and monitoring
Fully programmable charging algorithm with 8 presets
An optional plug-in LCD for direct feedback
Synchronised charging with up to 25 units via VE.Can

Quick Specs

• Max charge current: 70A | Max PV voltage: 250V

• Supported battery voltages: 12/24/36 (manual)/48V

• Max PV power (48V system): 4000W

• Efficiency: up to 99% | Operating temp: -30°C to +60°C

• Weight: 3 kg | Size: 185 x 250 x 95 mm

Pain Points Solved

• Recovers fully discharged lithium batteries

• Simplifies system expansion with parallel syncing

• Operates quietly with passive cooling (no fan)

• Handles harsh environments with IP43 protection

Use Cases

Perfect for off-grid cabins, backup systems, marine setups and remote solar installations needing reliable charge regulation and scalable performance.

Specifications

Victron SmartSolar Charge Controllers DATASHEET

Manual

Victron SmartSolar Charge Controllers MANUAL
