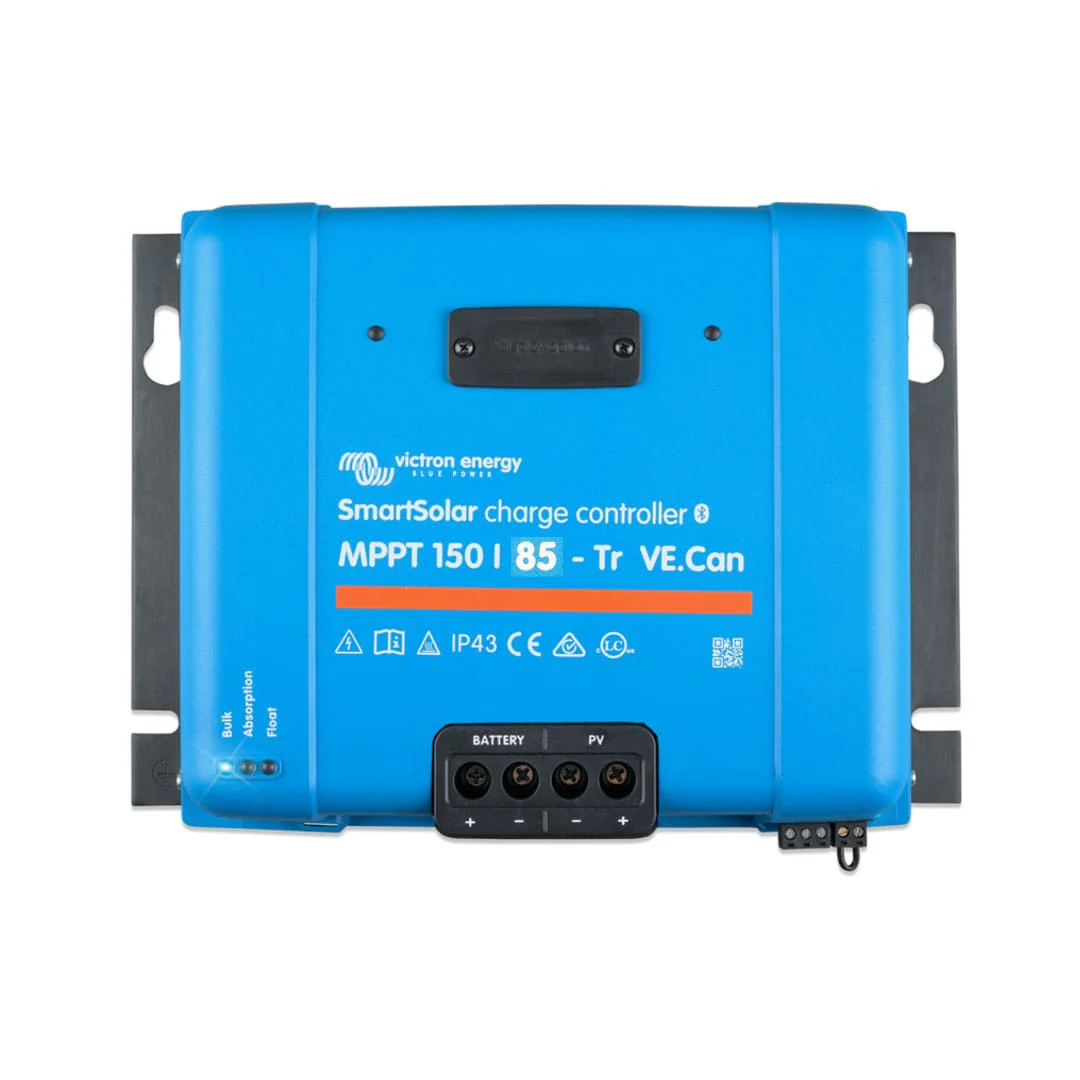

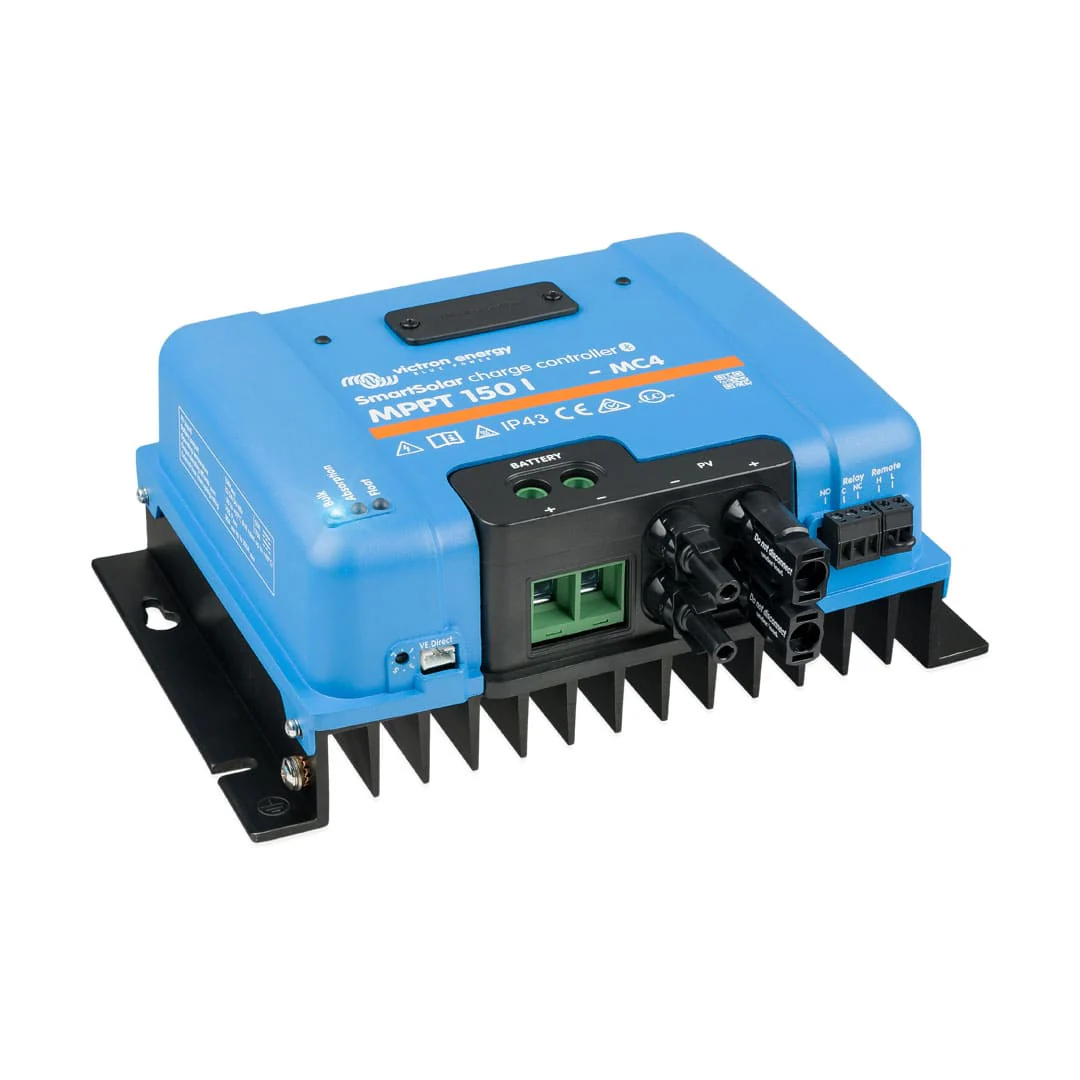

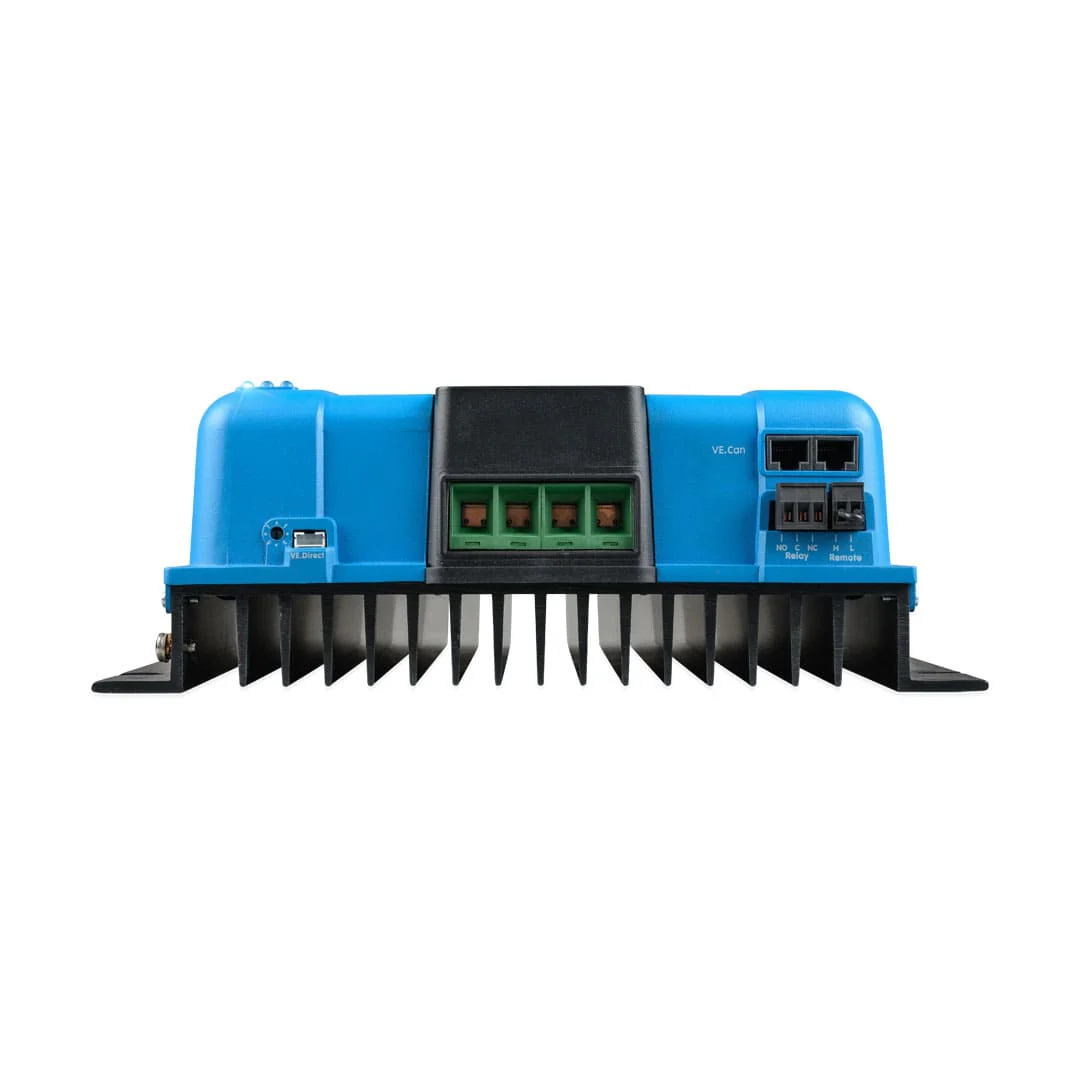

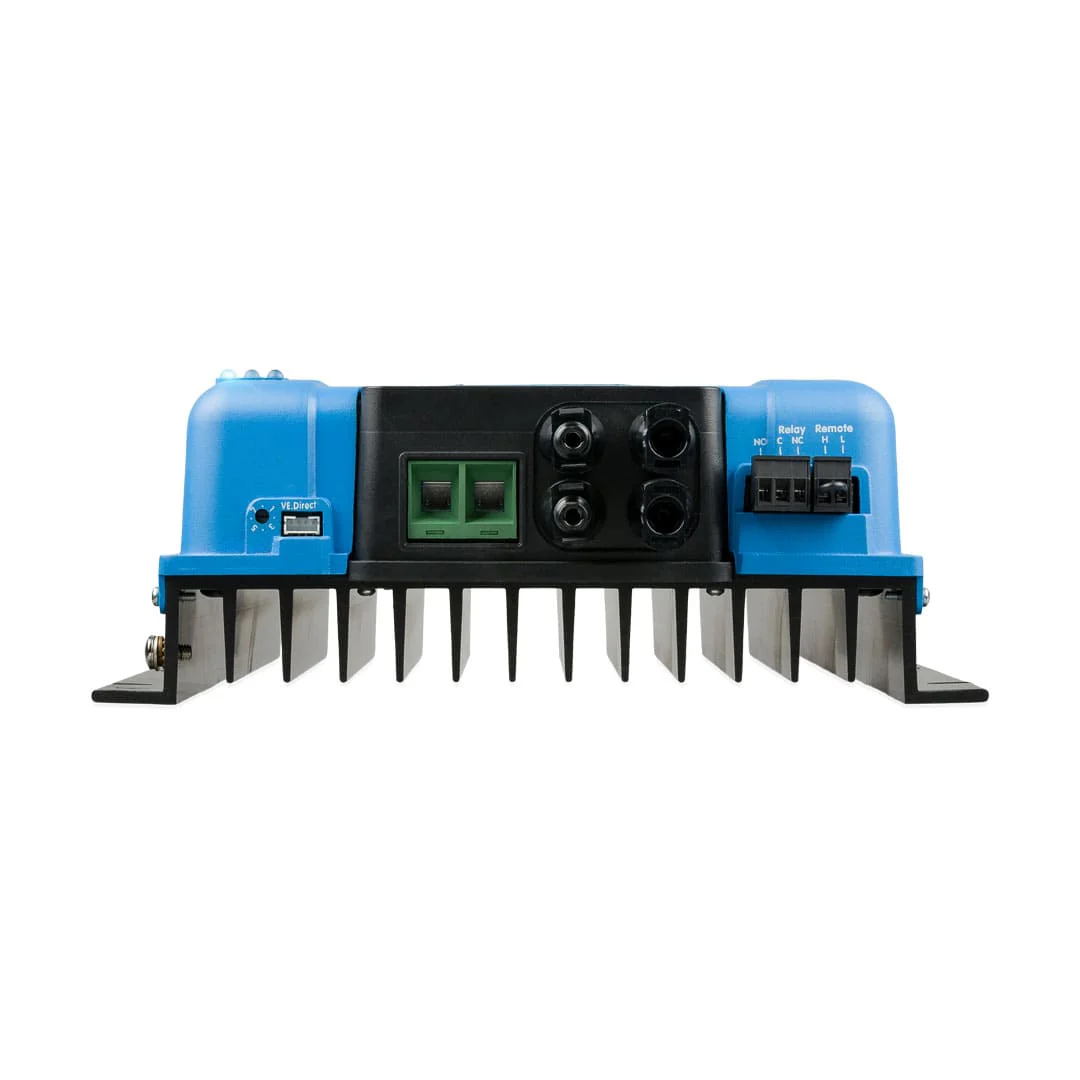

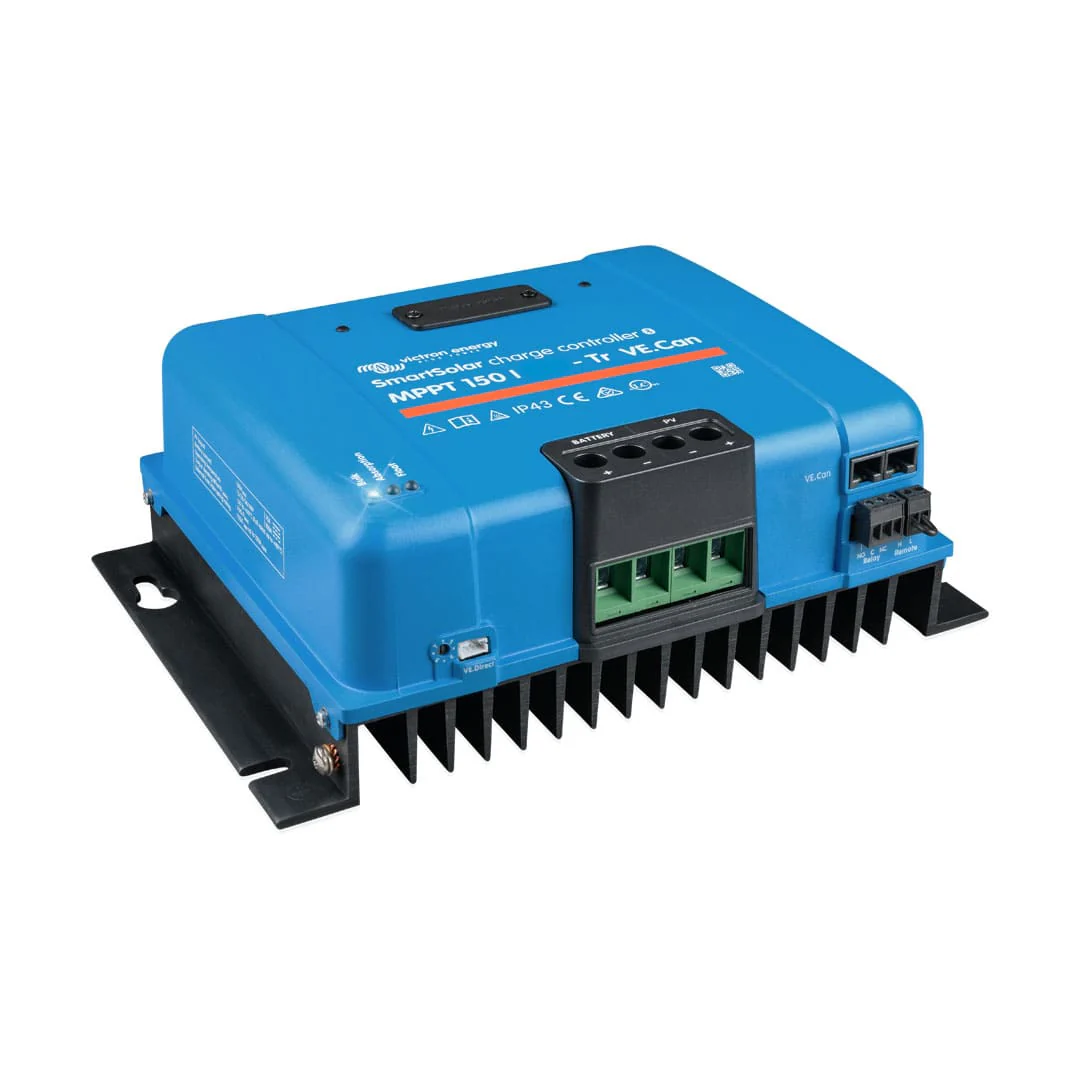

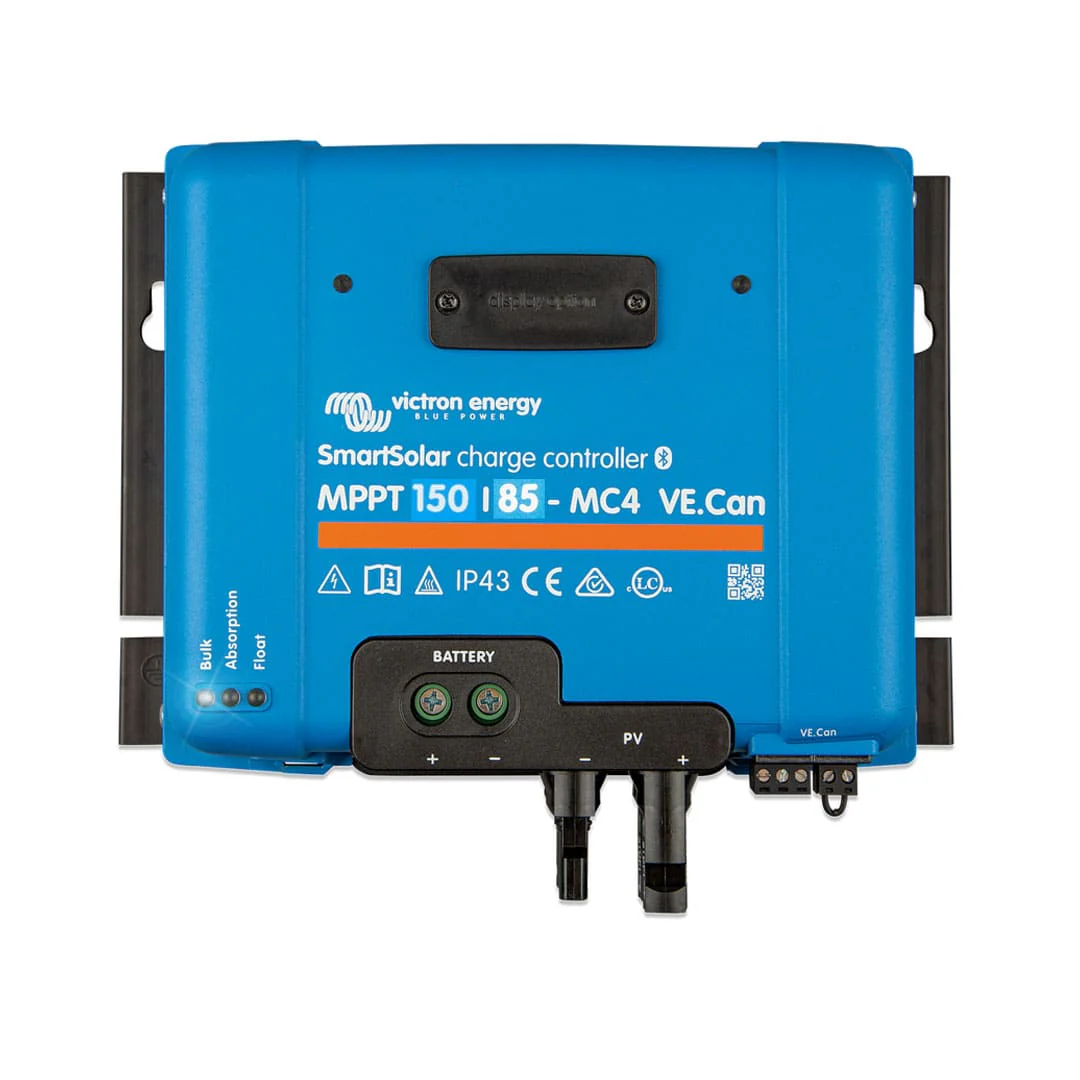

Victron SmartSolar MPPT 150/85 VE.Can

The Victron SmartSolar MPPT 150/85- VE. Can features ultra-fast Maximum Power Point Tracking (MPPT) to enhance energy harvest by up to 30% compared to PWM controllers and 10% over slower MPPTs, particularly under rapidly changing light conditions.
Its advanced MPPT detects multiple power points during partial shading, ensuring optimal energy capture by targeting the best MPP.

Choose Your Connection Type (use drop down selector):

Main Features:

Efficiency: Exceptional conversion rate over 99%, achieved without a cooling fan.
Flexible Charging: Offers a fully programmable charge algorithm and eight pre-set options, changeable via a rotary switch.
Protection: Includes extensive electronic safeguards such as over-temperature protection, PV short circuit, reverse polarity, and reverse current protections.
Connectivity And Monitoring: Built-in Bluetooth Smart enables setup, monitoring, updates, and synchronisation. Compatible with Smart Battery Sense, BMV-712 Smart Battery Monitor or SmartShunt for comprehensive battery parameter tracking.
Data Integration: Supports VE.Direct or VE.Can be for wired connections to various devices and systems, allowing up to 25 units to sync via VE. Can.
Battery Recovery: Capable of reviving fully discharged batteries, including reconnecting to discharged Li-ion batteries with an integrated disconnect function.
Additional Controls: Features remote on-off capability, a programmable relay for triggering alarms or events, and an optional SmartSolar pluggable LCD for direct controller interfacing.

Specifications

Click Here To View The Victron SmartSolar MPPT 150/85 VE. Can DATASHEET

User manual

Click Here To View The Victron SmartSolar MPPT 150/85 VE. Can MANUAL

Warranty

Click Here To View The Victron Energy Limited Warranty Policy DOCUMENT
