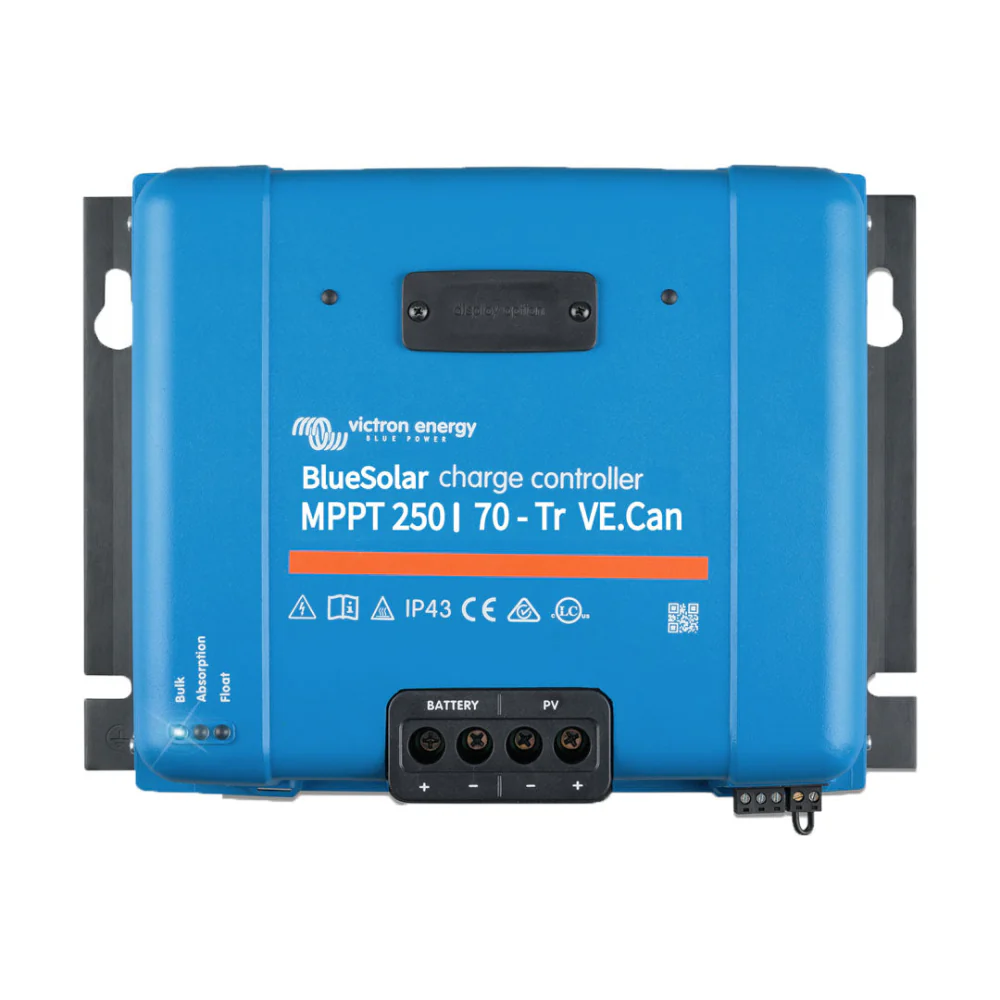

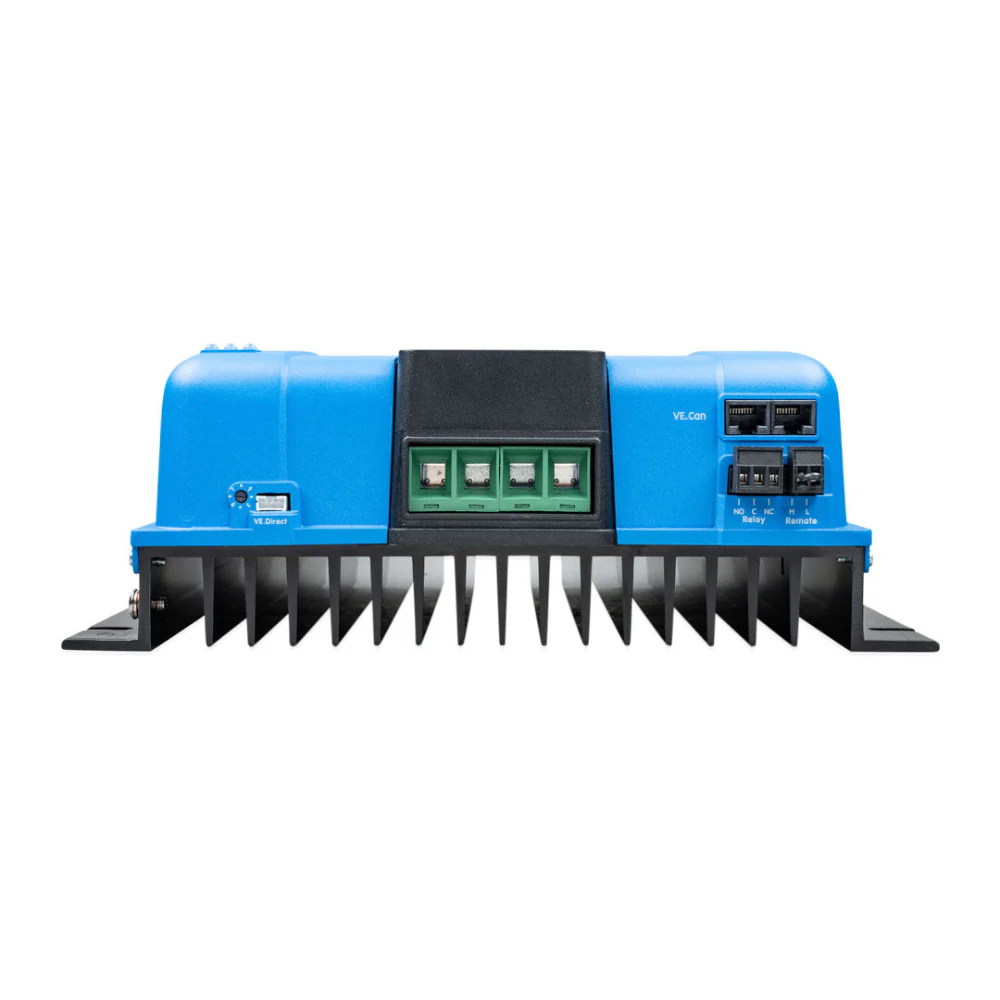

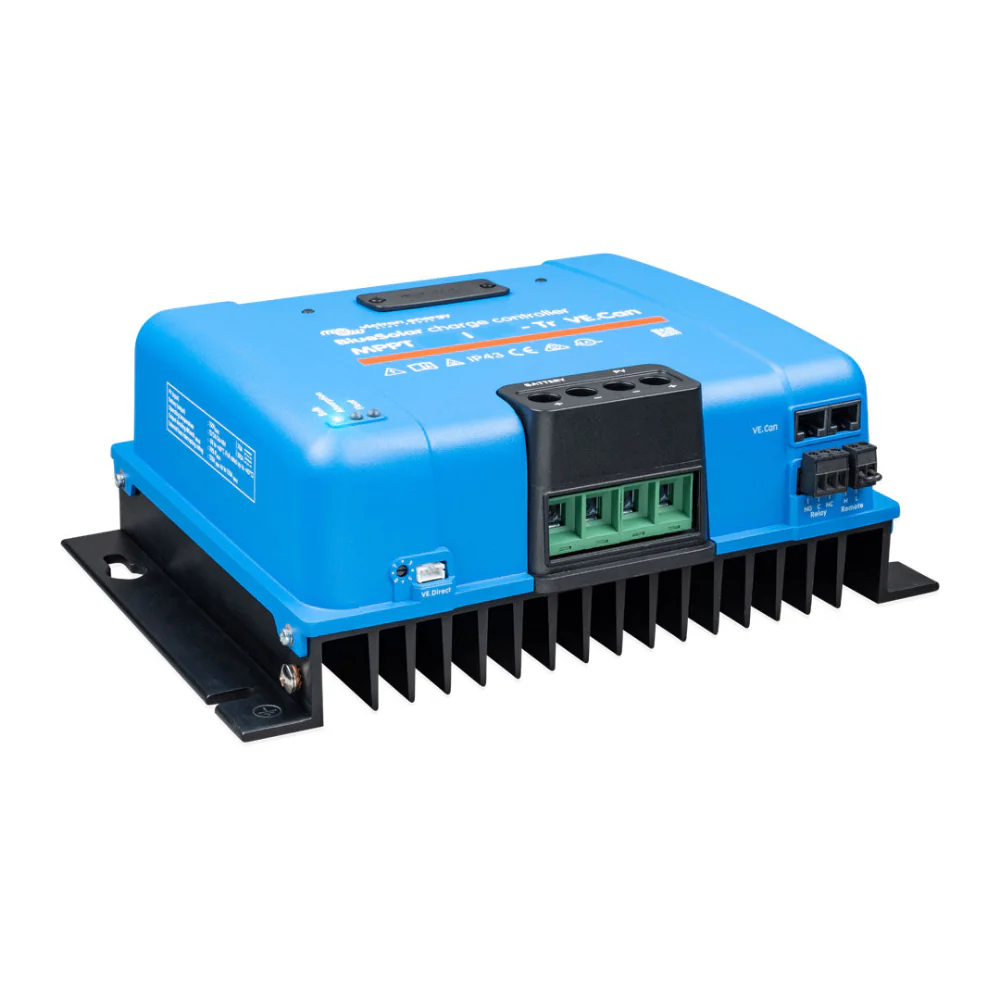

Victron BlueSolar MPPT 250/70-Tr VE.Can Charge Controller - SCC125070441

The Victron BlueSolar MPPT 250/70-Tr VE.Can offers ultra-fast MPPT tracking to enhance solar energy yield, particularly in unstable light conditions.

The ability to operate efficiently across 12V to 48V battery systems makes Victron Bluesolar MPPT's ideal for both residential and commercial installations that demand reliability and adaptability. It is truly designed for robust performance in various solar setups.

This MPPT controller supports up to 4000W PV input at 48V and its wide 250V open-circuit voltage range allows greater design flexibility. With a high peak efficiency of 99%, this unit also ensures low power loss while maintaining durability even in high-heat environments without requiring active cooling.

Main Features

Ultra-fast MPPT for optimal energy harvest
Handles up to 4000W PV at 48V
Built-in VE.Can and VE.Direct for communication and monitoring
Programmable charge settings with 8 selectable algorithms
Parallel operation of up to 25 units via VE.Can

Quick Specs

• Battery Voltage: 12/24/48V auto-select (36v requires software tool)

• Max. PV Voltage: 250V

• Rated Charge Current: 70A

• Weight: 3 kg

• Size: 185 x 250 x 95 mm

• Protection: IP43 (electronics), IP22 (connections)

Pain Points Addressed

• No cooling fan reduces maintenance concerns

• Handles partial shading effectively with advanced MPP detection

• Prevents overcharge, reverse polarity and overheating

Use Cases

• Off-grid solar setups

• Backup systems for homes and cabins

• RV and marine solar applications requiring consistent power

Specifications

Victron BlueSolar MPPT 250/70 Ve.Can Charge Controllers DATASHEET

Manual

Victron SmartSolar Charge Controllers MANUAL
