Sungrow IDC180E 180kW Isolated Air-Cooling Fast DC Charger

The Sungrow IDC180E is a dependable and efficient 180kW EV DC fast charging solution.

Ideal for public EV charging sites, fleet depots, and other commercial EV infrastructure projects, this Sungrow 180kW DC fast charger offers high efficiency, low maintenance and reliable operation in demanding environments.

Contact Buzz Energy Systems to discuss professional installation of your commercial EV charging infrastructure by our qualified and experienced installation partners. We’ll work with you to design a tailored solution that meets your site’s requirements and complies with all relevant standards.
Investing in EV charging not only supports sustainability goals but also creates long-term revenue opportunities through energy management, customer attraction and future-proofing your property assets.

Main Features

High Charging Efficiency: With up to 96.5% energy efficiency, the IDC180E minimises energy loss, enabling faster and more sustainable EV charging.
User-Centric Interface: Equipped with a 10-inch colour touchscreen, RFID access, and support for multiple payment options, including credit card and plug-and-charge functionality.
Advanced Connectivity: Supports communication via WLAN, Ethernet, and 4G, and is compatible with OCPP 1.6J, with future support planned for OCPP 2.0.1
Durable and Weather-Resistant: Designed to operate in extreme conditions, the charger meets IP65 protection and C5 anti-corrosion standards, with a working temperature range of -35°C to 55°C and smart forced air cooling.

Quick Specs

• Power Output: Up to 180 kW (configurable: 120/150/180 kW)

• Connectors: Dual CCS2 outlets

• Voltage Range: 200–920 V DC

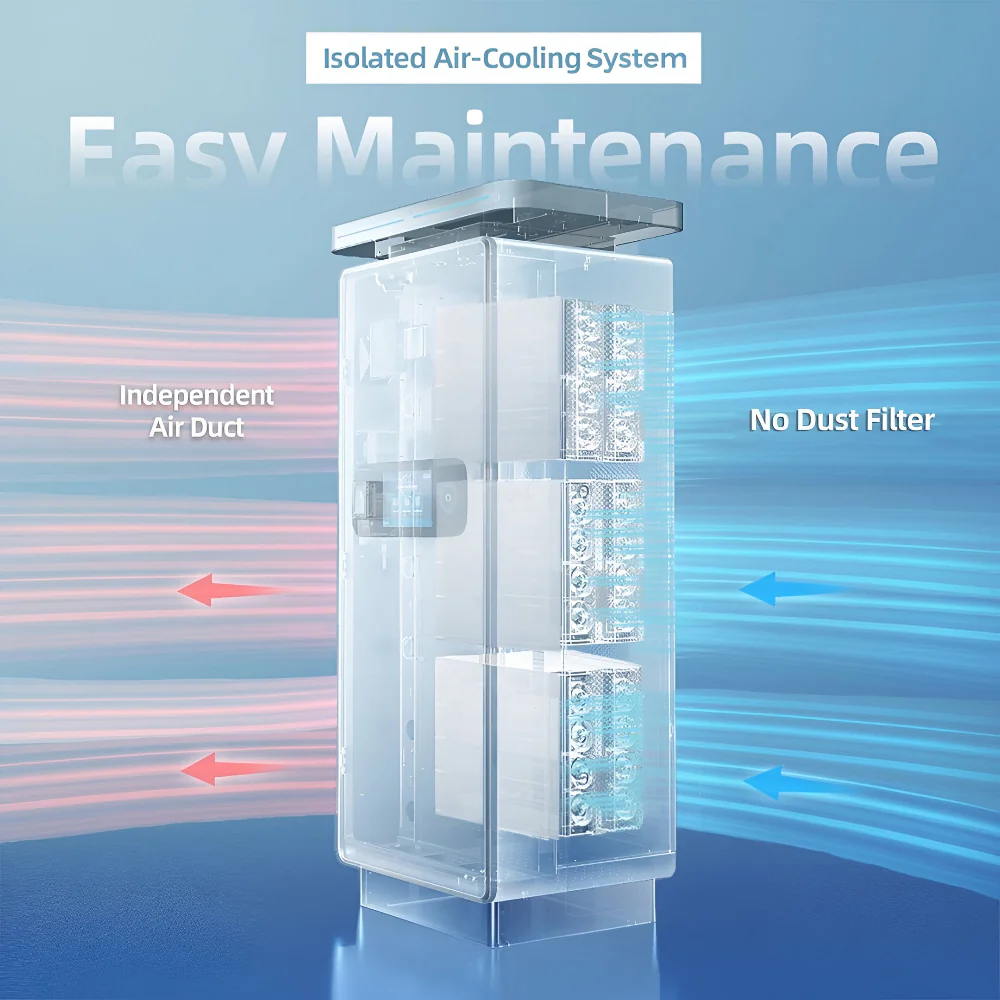

• Cooling: Isolated air-cooling

• Efficiency: Up to 96.5%

• User Interface: 10" color touchscreen

• Authentication: RFID, plug & charge, debit/credit card (optional)

• Protection Rating: IP65, C5 anti-corrosion, IK10 impact resistance

• Operating Temp: –35 °C to +55 °C

• Noise Level: ≤ 65 dB at 1 m

• Communication: OCPP 1.6J (ready for 2.0.1), 4G/Wi-Fi/Ethernet

• Mounting: Floor-mounted

• Certifications: CE, UKCA, MID meter (Eichrecht/PTB optional)

• Warranty: 3 years standard

About The Brand

Sungrow, a global leader in renewable energy technology, has pioneered sustainable power solutions for over 27 years. As of June 2024, Sungrow has installed 605 GW of power electronic converters worldwide. Sungrow Australia's office has been established in Sydney since 2012. With this rapid development, Sungrow Australia has built one of the largest solar inverter manufacturing teams in Australia, covering sales, technical support, projects and after-sales service. The Sales team and technical support team are based in North Sydney, and the Sungrow warehouse is located in Pendle Hills. With over 6 years of local support experience, Sungrow have built national service networks, and their service contractors are ready to help installers or customers with warranty enquiries.

Specifications

Sungrow IDC180E 180kW Isolated Air-Cooling Fast DC Charger DATASHEET

Manual

Sungrow IDC180E 180kW Isolated Air-Cooling Fast DC Charger MANUAL

Warranty

Sungrow IDC180E 180kW Isolated Air-Cooling Fast DC Charger WARRANTY
