Fronius PRIMO GEN24 Plus Hybrid Inverter + BYD HVS Battery Bundle - CEC Approved

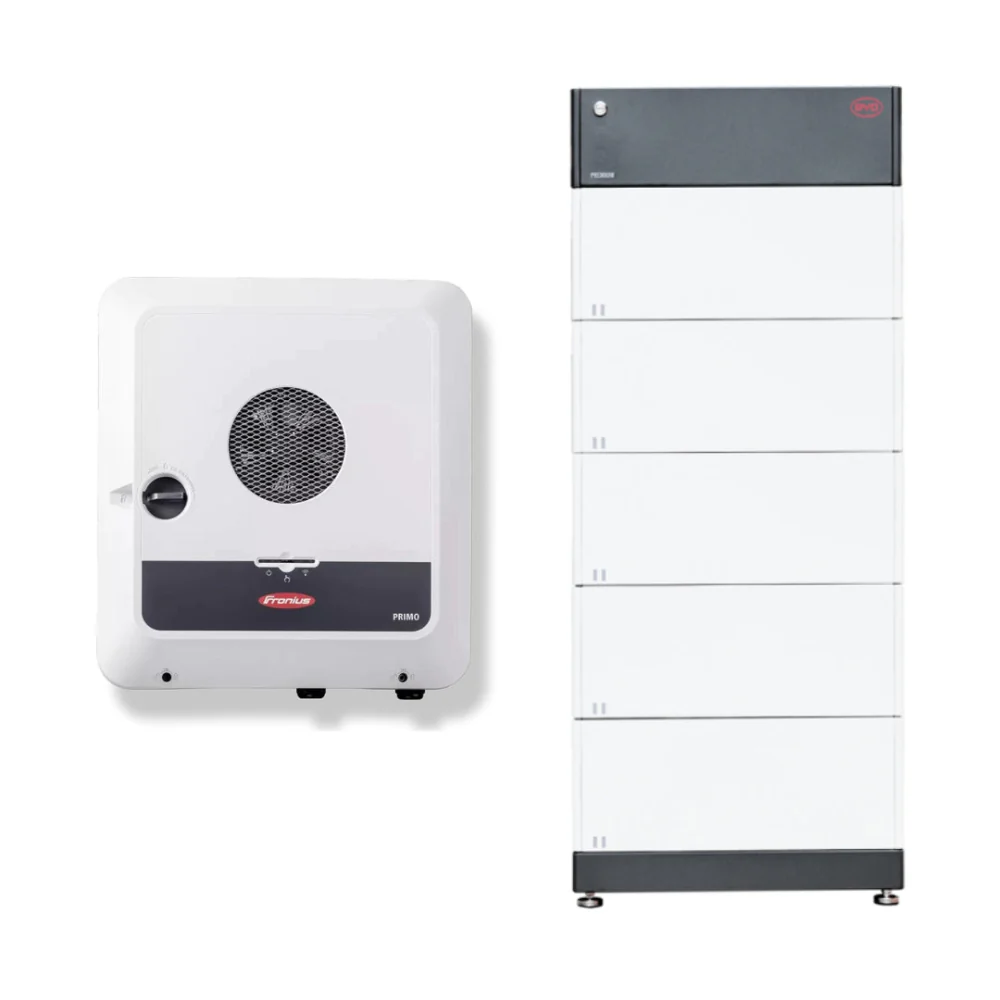

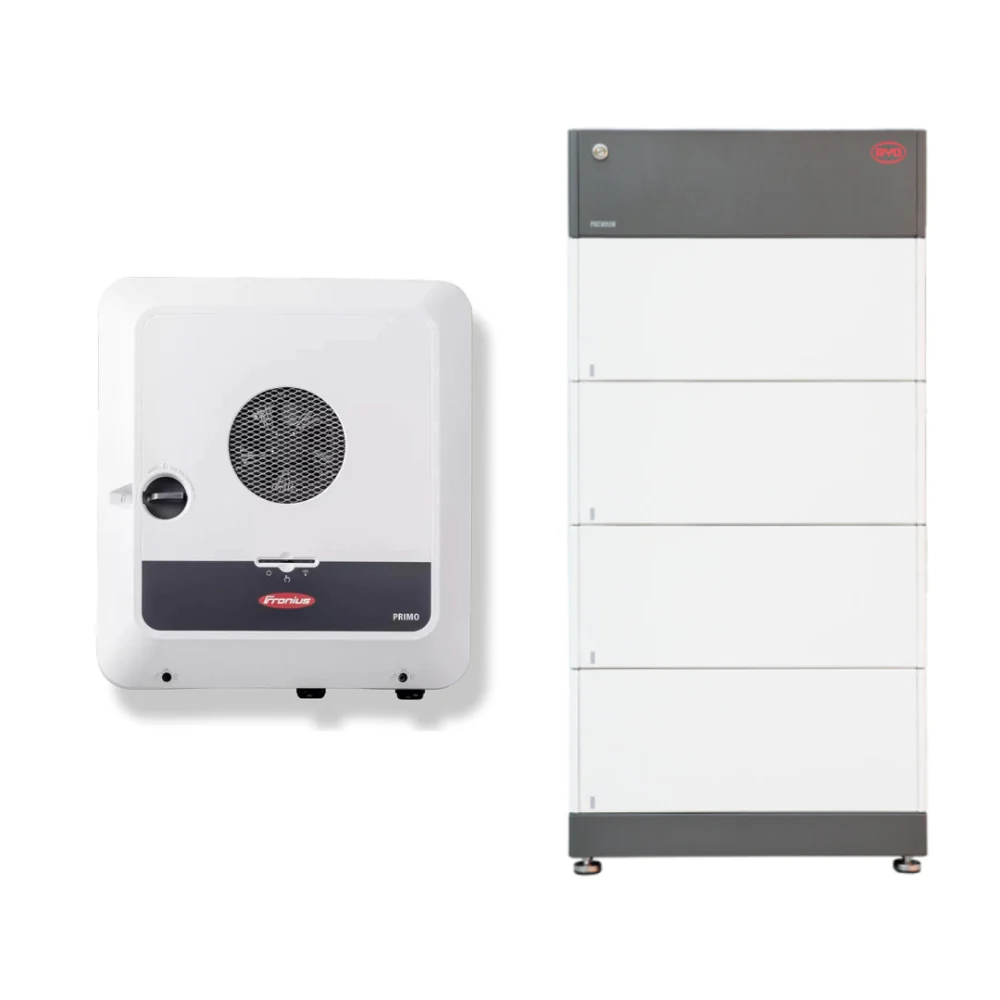

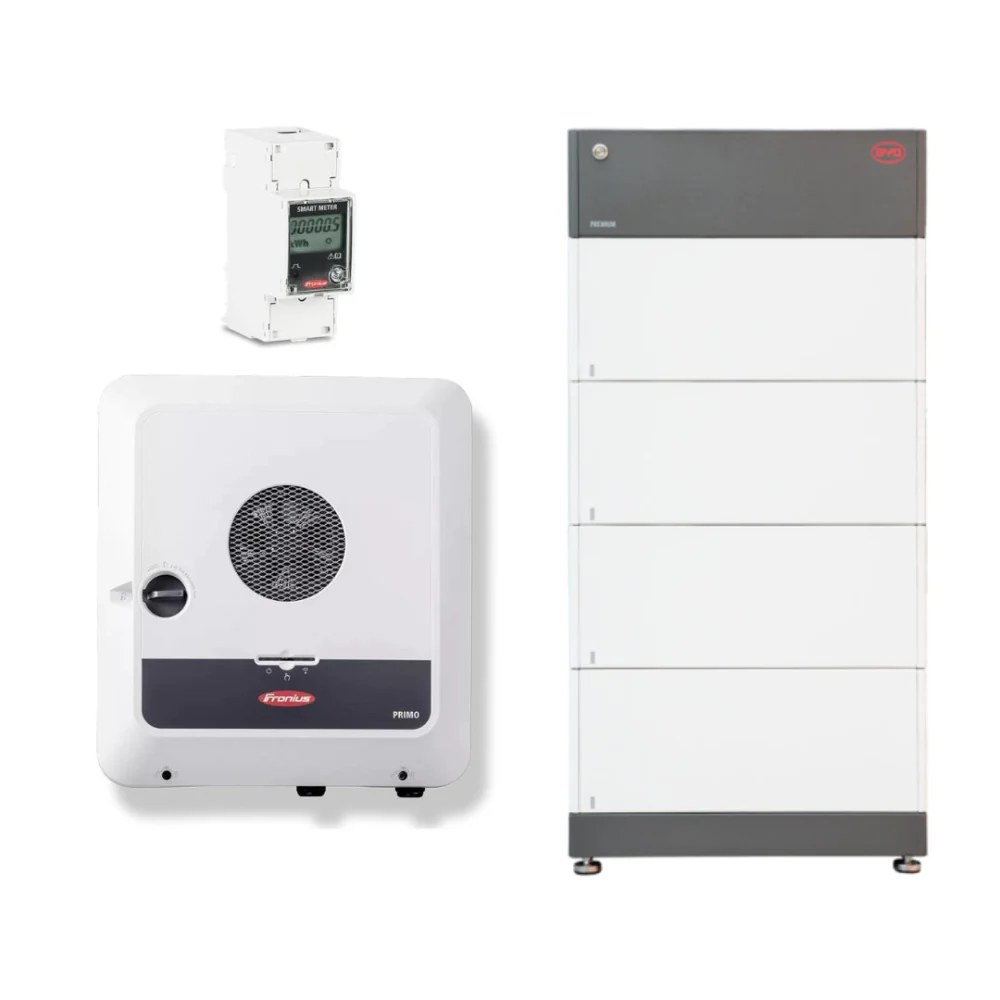

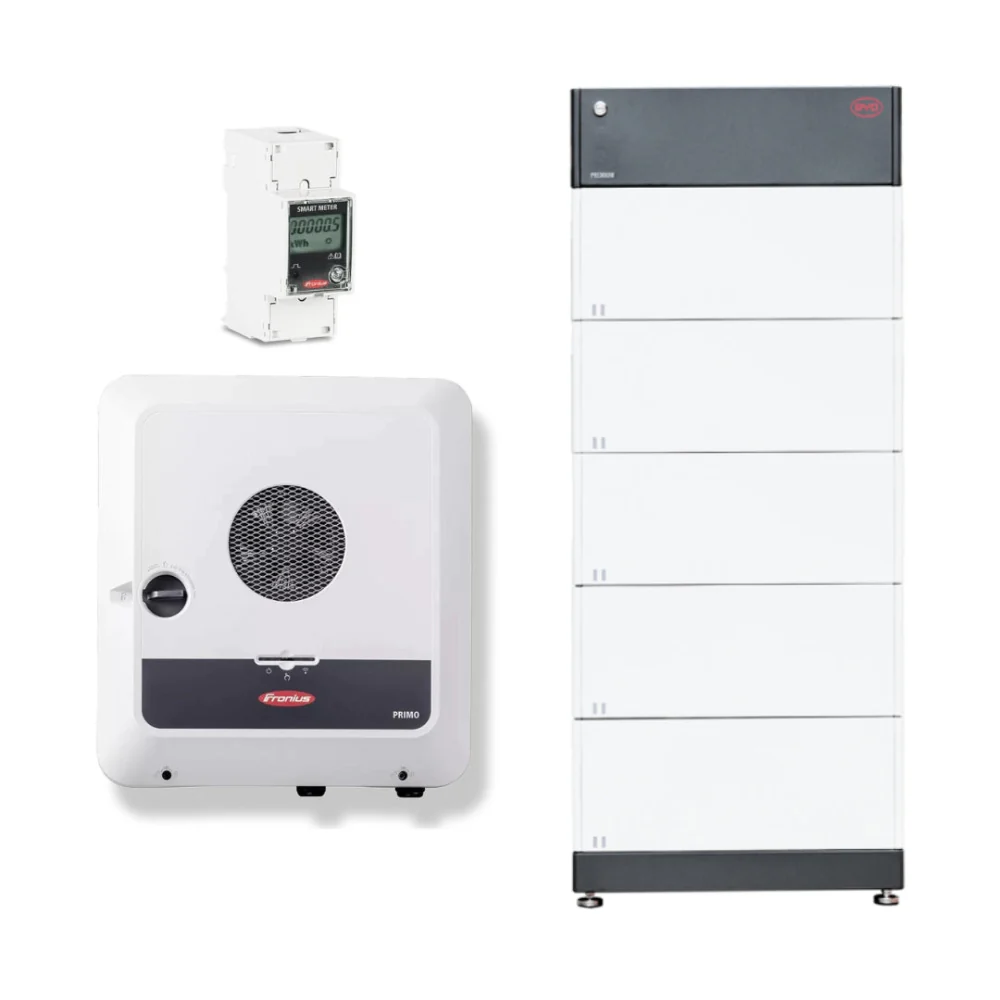

This energy storage system combines the renowned Fronius PRIMO GEN24 Plus Single-Phase hybrid inverter, BYD Battery Box HVS Premium battery, along with an optional Smart meter for optimised grid energy management.

Designed for users aiming to increase solar self-consumption and improve energy management with high discharge power, but low to medium battery storage capacity requirements.
Additionally, choose the Fronius Smart meter option to take full advantage of your solar energy use by dynamically and automatically controlling exporting to the grid.

This Bundle Includes:

• Fronius PRIMO GEN24 PLUS Hybrid Inverter

• BYD Battery-Box Premium HVM

• Optional Fronius Single-Phase Smart Meter

The Fronius Primo GEN24 Plus Hybrid Inverter is suitable for both on-grid and backup power applications. It includes standard Wi-Fi and Ethernet connectivity, allowing for easy monitoring and integration with third-party energy management systems. It also comes with a built-in PV Point—a basic 3kW backup power supply for essential loads during grid outages. Ideal for standard single-phase homes, with solar arrays from 3-15kW.

The BYD Battery Box Premium HVS, when paired with the Primo inverter, consists of 2 or 3 modules connected in series, providing a usable capacity ranging from 5.1 to 7.7 kWh per battery pack. Additionally, up to 3 of these series can be connected in parallel, allowing for a total maximum capacity of 23.1 kWh. It features a modular design that can be scaled to suit different energy needs. Its lithium-iron-phosphate (LFP) cell chemistry supports safety and long-term durability.

The Fronius Single Phase Smart Meter accurately measures both grid energy consumption and solar export, enabling real-time monitoring of household electricity use. It helps optimise self-consumption by providing detailed insights into when and how power is being used. When integrated with the Solar.web platform, users gain a clear visual overview of energy flows. In storage systems such as the Fronius BYD Package, the smart meter plays a key role in intelligently managing and balancing solar generation, battery storage and grid interaction to maximise overall energy efficiency.

Together, these components provide a practical and adaptable storage setup for solar PV systems.

Clean Energy Council (CEC) Approved. What's This?

Purchasing this entitles you to the Cheaper Home Batteries Program.
See How Much You Can Save Here.

Recommended Add-On (Sold Separately)

Note: Do not select the Fronius Smart Meter Option on this product if purchasing a Noark Backup Box:

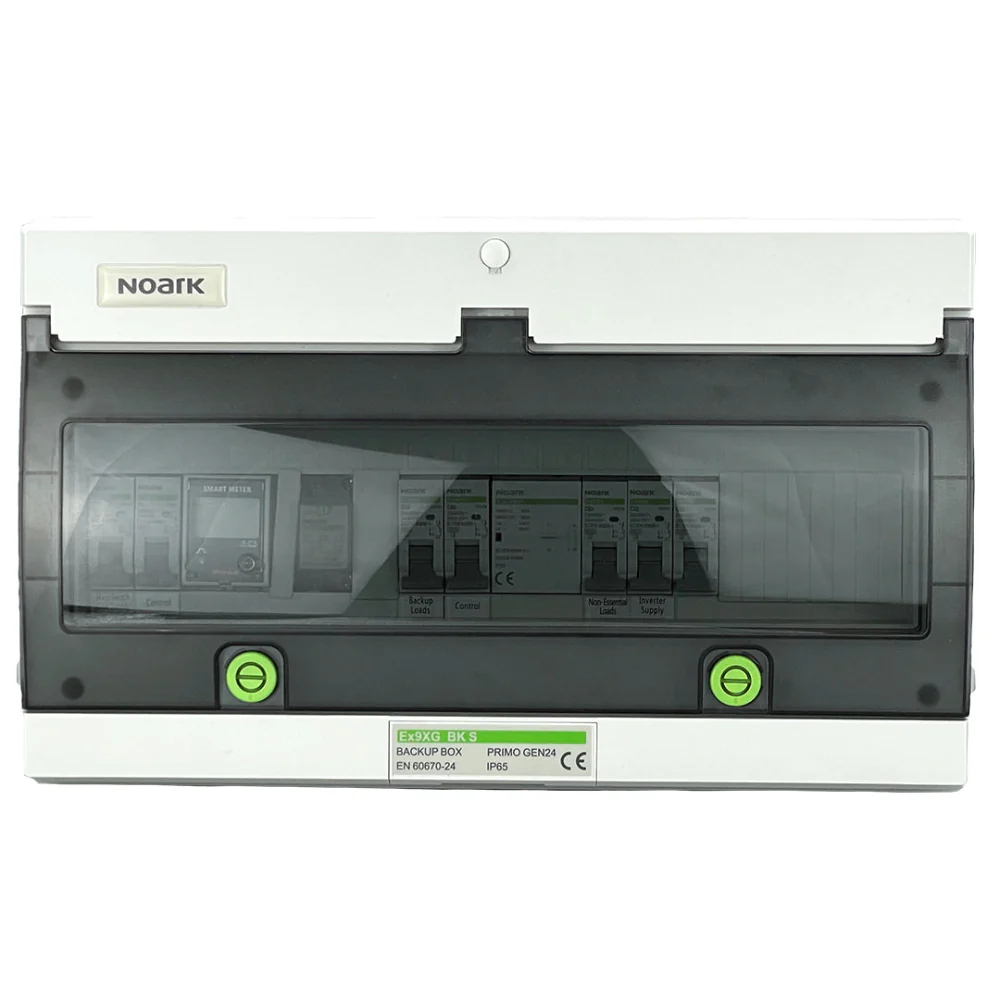

Noark Single Phase Backup Box for Fronius GEN24 Plus Hybrid Inverters - comes equipped with a Fronius Smart Meter, main switch, contactor, relay and MCBs for essential and non-essential circuits, ensuring a complete and ready-to-use backup solution.

Main Features - Fronius PRIMO GEN24 Plus Single-Phase Hybrid Inverter

• High Current MPPTs – Ideal for modern, high-output PV panels
• Flexible Battery Support – Ready for partial or full home backup with compatible batteries
• Reliable Backup Options – Full home backup with a battery connection and Integrated PV Point – Provides basic essential Solar backup power, for critical loads during grid outages, even when the battery is flat.
• Active Cooling – Improves inverter lifespan with over 90% recycled aluminium in the heat sink.
• Smart Monitoring – Compatible with Fronius Solar.web for real-time performance insights, ROI tracking, and forecasts
• Quick Installation – Wall-mounted with push-in terminals and quick-release screws

For Product Information of Fronius PRIMO GEN24 Plus, Click Here

Main Features - BYD Battery Box Premium HVS

• Capable of High-Powered Self-consumption, Emergency-Backup, Virtual Powerplant and Dynamic energy Storage Functionality

• Highest Efficiency Thanks to a Real High-Voltage Series Connection

• The Patented Modular Plug Design requires no Internal Wiring and allows for Maximum Flexibility and Ease of Use

• Cobalt-Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power

• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters

• Two Distinct Modules to Cover the Complete Range of System Sizes

• Highest Safety Standards like VDE 2510-50

• 2300A short-circuit current

• 10-year Product Guarantee

For Product Information of BYD Battery-Box Premium HVS, Click Here

Main Features - Fronius Single Phase Smart Meter
