Fronius PRIMO GEN24 Plus Hybrid Inverter + BYD HVM Battery Bundle - CEC Approved

This energy storage system combines the popular and reliable Fronius PRIMO GEN24 Plus Single-Phase hybrid inverter and BYD Battery Box HVM Premium Battery system.

Designed for users aiming to maximise solar self-consumption and improve energy management with medium to large battery storage capacity requirements.

Additionally, choose the Fronius Smart meter option to take full advantage of your solar energy use by dynamically and automatically controlling grid exports.

This Bundle Includes:

• Fronius PRIMO GEN24 PLUS Hybrid Inverter

• BYD Battery-Box Premium HVM

• Optional Fronius Single-Phase Smart Meter

The Fronius GEN24 Plus is suitable for both on-grid and backup power applications. It includes standard Wi-Fi and Ethernet connectivity, allowing for easy monitoring and integration with third-party energy management systems. It also comes with a built-in PV Point—a basic 3kW backup power supply for essential loads during grid outages.

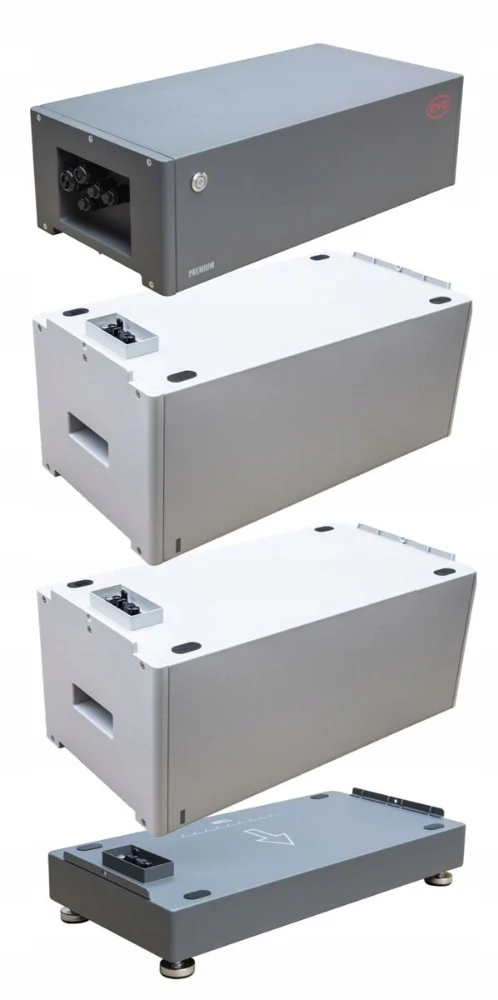

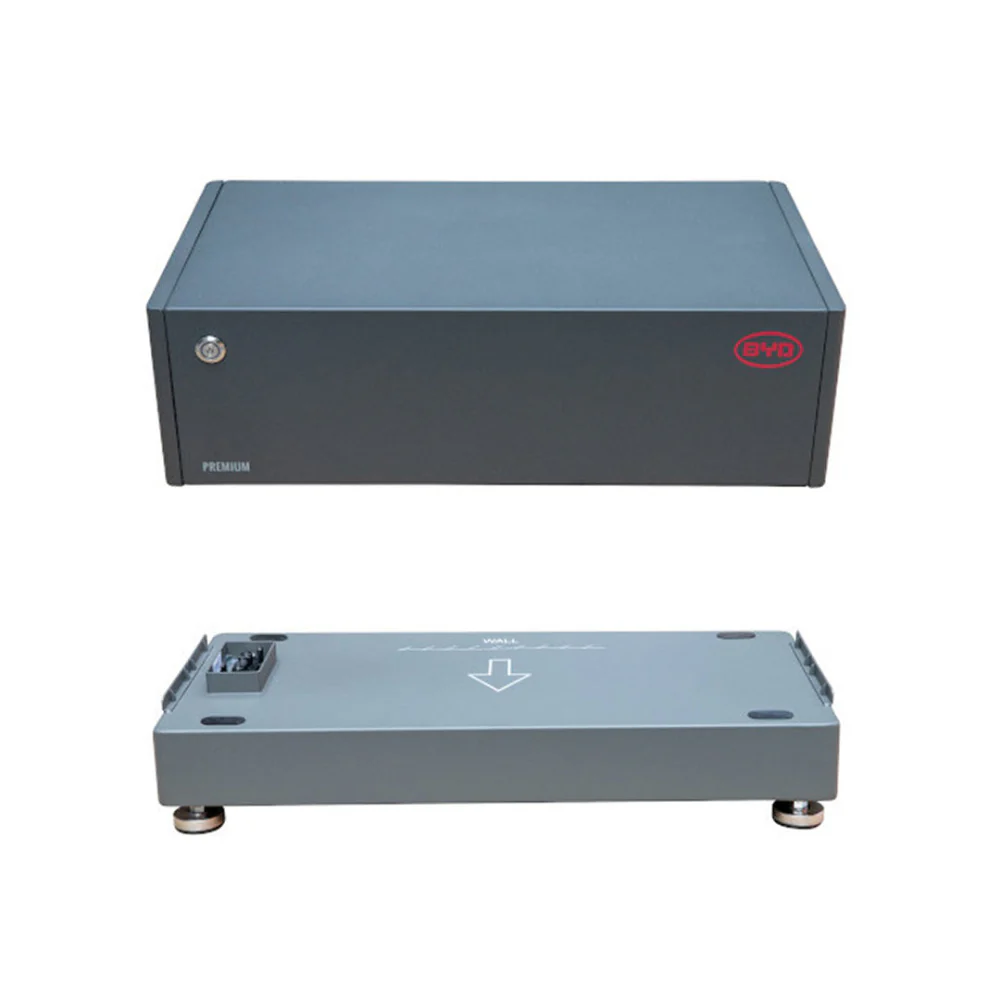

The BYD Battery Box Premium HVM when paired with the Primo inverter, consists of 4 or 7 modules connected in series, providing a usable capacity ranging from 11.4 to 19.03 kWh per battery pack. It features a modular design that can be scaled to suit different energy needs. Its lithium-iron-phosphate (LFP) cell chemistry supports safety and long-term durability.

The Fronius Single Phase Smart Meter accurately measures both grid energy consumption and solar export, enabling real-time monitoring of household electricity use. It helps optimise self-consumption by providing detailed insights into when and how power is being used. When integrated with the Solar.web platform, users gain a clear visual overview of energy flows. In storage systems such as the Fronius BYD Package, the smart meter plays a key role in intelligently managing and balancing solar generation, battery storage and grid interaction to maximise overall energy efficiency.

Together, these components provide a practical and adaptable storage setup for solar PV systems.

Clean Energy Council (CEC) Approved Inverter. What's This?

Purchasing this entitles you to the Cheaper Home Batteries Program. See How Much You Can Save Here.

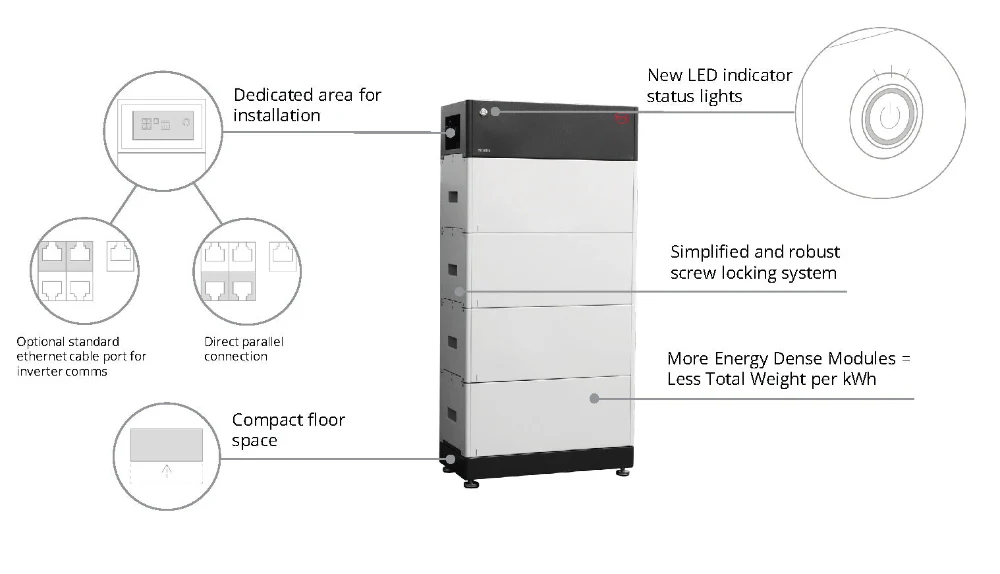

Main Features - BYD Battery Box Premium HVM

• Capable of High-Powered Emergency-Backup and Off-Grid Functionality

• Highest Efficiency Thanks to a Real High-Voltage Series Connection

• The Patented Modular Plug Design requires no Internal Wiring and allows for Maximum Flexibility and Ease of Use

• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power

• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters

• Two Distinct Modules to Cover the Complete Range of System Sizes

• Highest Safety Standards like VDE 2510-50

• 2300A short-circuit current

• 10-year Product Guarantee

For Product Information of BYD Battery-Box Premium HVM, Click Here!

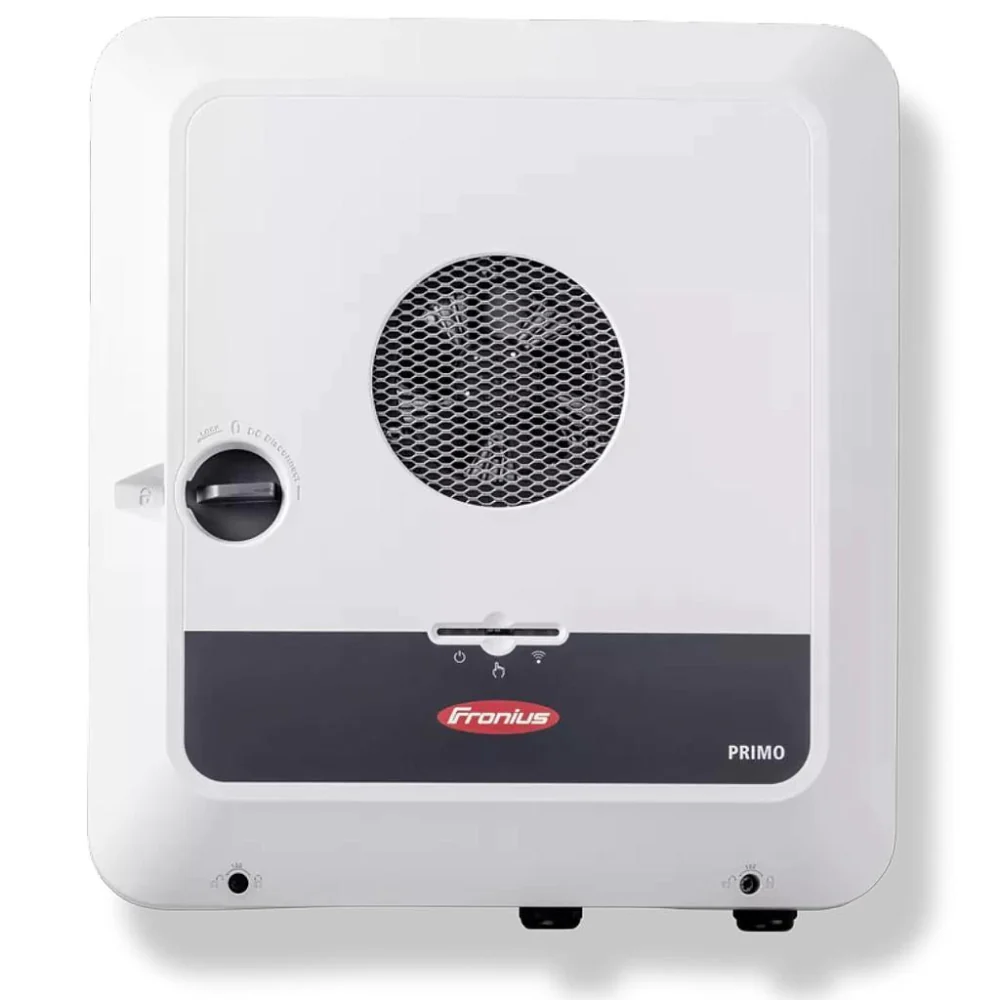

Main Features - Fronius PRIMO GEN24 Plus Single-Phase Hybrid Inverter

• High Current MPPTs – Ideal for modern, high-output PV panels

• Flexible Battery Support – Ready for partial or full home backup with compatible batteries

• Integrated PV Point – Provides essential backup power for critical loads during outages

• Active Cooling – Improves inverter lifespan with over 90% recycled aluminium in the heat sink

• Smart Monitoring – Compatible with Fronius Solar.web for real-time performance insights, ROI tracking, and forecasts

• Quick Installation – Wall-mounted with push-in terminals and quick-release screws

• Reliable Backup Options – Integrated basic backup via PV Point and full home backup with a battery connection

For Product Information of Fronius PRIMO GEN24 Plus, Click Here

Main Features - Fronius Single Phase Smart Meter

About The Brand

Fronius Australia is guided by a bold vision: 24 hours of sun—a future powered entirely by clean, renewable energy. Since 2010, the company has delivered high-quality technologies and solutions to help monitor and manage sustainable solar energy systems. Through strategic partnerships, including with Fronius Solutions Partners, Fronius Australia works to drive this mission forward. The company also hosts regular Fronius Solutions Workshops, keeping installers and system integrators informed and competitive. Every solution offered is built around three key principles: Flexibility, Uptime, and Optimisation

Specifications

BYD Battery Box Premium HVS / HVM DATASHEET

Fronius PRIMO GEN24 Plus DATASHEET

Fronius Compatibility With Batteries DOCUMENT

Manual

BYD Battery Box Premium OPERATING MANUAL

Warranty

Fronius International Limited WARRANTY

BYD Battery-Box Premium Limited WARRANTY
