$3,313.78The Story
The BYD Battery-Box Premium HVM 22.1 is a modular IP55 rated LiFePo4 High Voltage battery system that can be scaled up to meet your energy needs.

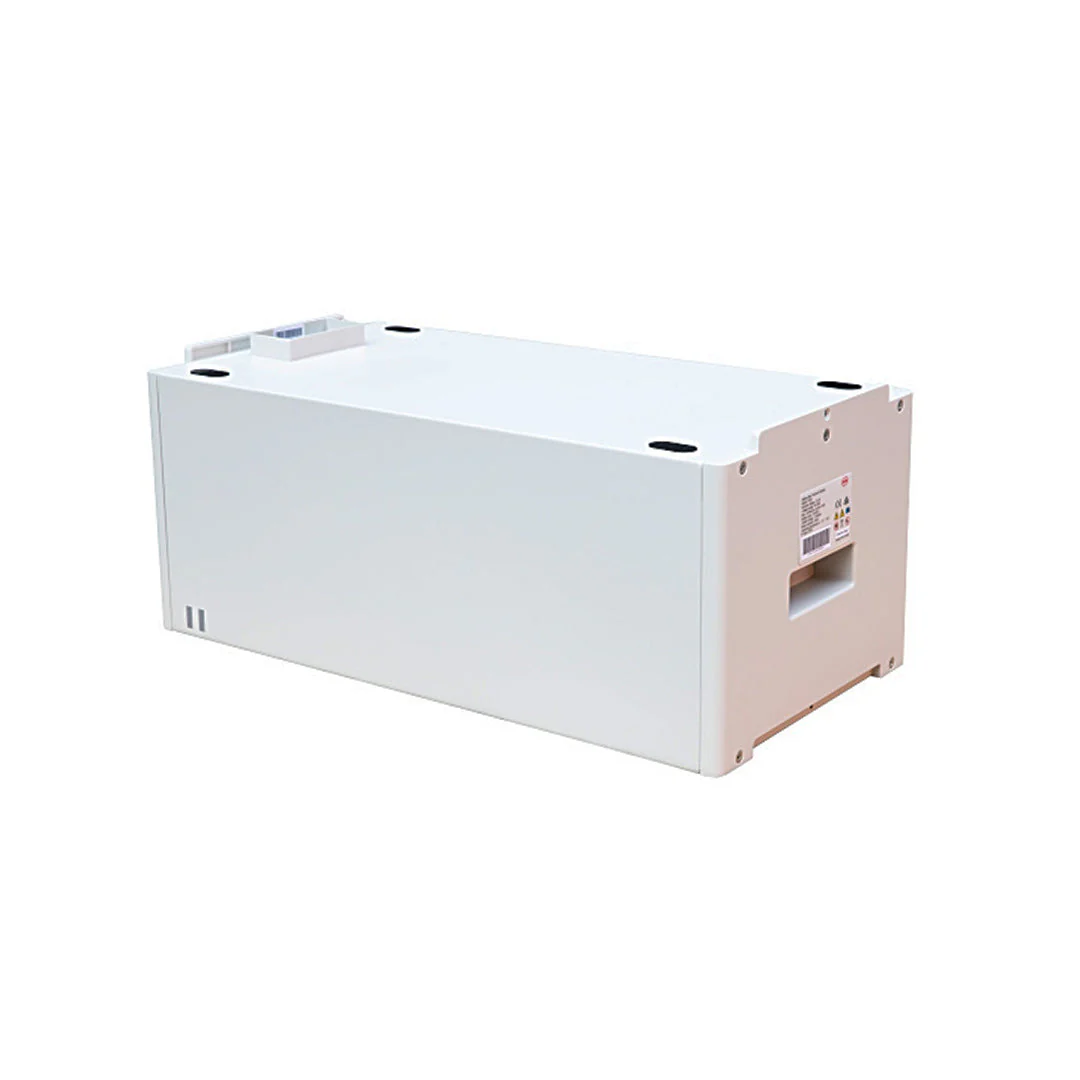

Each Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh. By directly connecting up to three identical Battery-Box Premium HVMs in parallel, you can achieve a maximum capacity of 66.2 kWh. And if you need even more storage capacity, you can easily scale up by adding more HVM modules or parallel HVM stacks later.

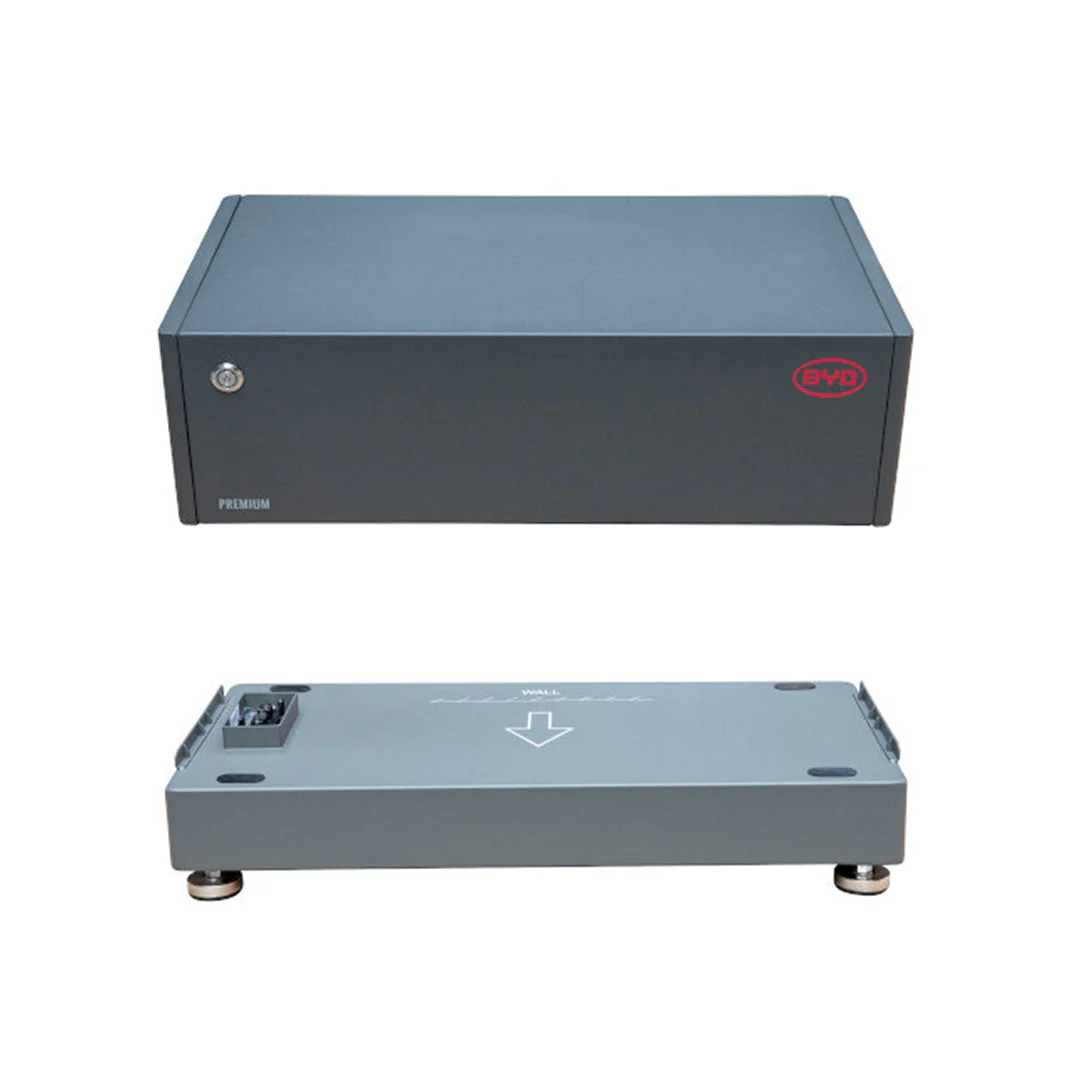

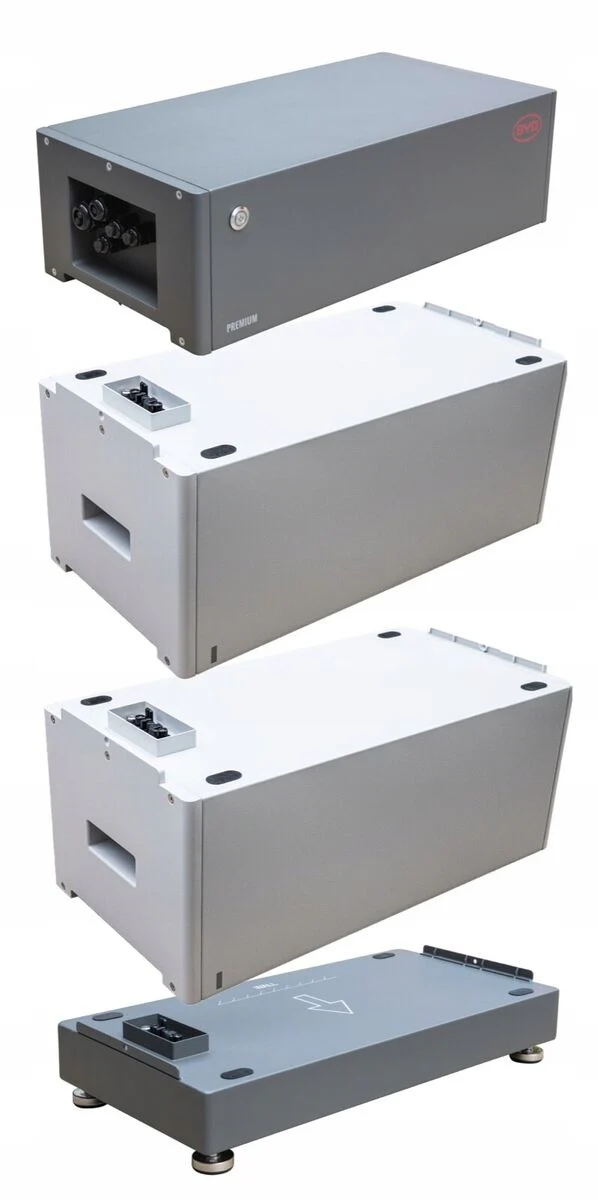

This package includes 8 battery modules and a battery control unit (BCU) with a base. Save $$$ on component pricing!
Fronius customers please note:
This 22.1kWh stack is only suitable for Fronius Gen 24 SYMO 3 phase inverters. It is not suitable for Single phase Primo inverters due to overvoltage at full charge state; For Primo inverters max capacity of 19.3kWh HVM to be specified and available here.
This is a very heavy item, free shipping applies to the nearest freight depot or unloading facilities are required, otherwise tailgate fees may apply.
Please contact us for more information.
Clean Energy Council (CEC) approved battery (what is this?)
When combined with the Fronius SYMO GEN24 Plus hybrid inverter, the BYD Battery-Box Premium HVM 22.1 delivers high charging and discharging power, allowing you to optimally use and store the energy produced by your own PV system. This power remains available even when the sun is no longer shining, ensuring an increased rate of self-consumption and greater independence from the public grid.
The BYD HVM battery system is ideal for smaller commercial plants that require high storage capacities. You can implement up to three battery storage systems in parallel operation for even greater storage capacity. With Fronius Solar.web, you can easily monitor both Fronius inverters and BYD battery storage systems (HVS/HVM) at any time for an overview of all the relevant data.
BYD HVM is also compatible with other High Voltage Hybrid Inverter brands to suit varying capacities.
BYD HVM Main Features:
- Capable of High-Powered Emergency-Backup and Off-Grid Functionality
- Highest Efficiency Thanks to a Real High-Voltage Series Connection
- The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power
- Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters (see notes).
- Two Distinct Modules to Cover the Complete Range of System Sizes
- Highest Safety Standards like VDE 2510-50
- 10 Year Warranty
Specifications
Click Here To View BYD Battery-Box Premium HVM Lithium Battery DATASHEET
Click Here To View COMPATIBLE INVERTERS
Manual
Click Here To View BYD Battery-Box Premium HVM Lithium Battery MANUAL
Warranty
Click Here To View BYD Battery-Box Premium HVM Lithium Battery WARRANTY
