AERL LiFe2-5120S Modular Lithium Energy Storage modules and cabinets

The AERL LiFe2-5120S uses advanced LiFePO4 prismatic cells  ensuring long-lasting performance, safety and is designed to deliver reliable power, even in the harshest and toughest Australian conditions

The AERL LiFe2 system offers a flexible, installer-friendly solution with hot-swappable modules that can be replaced without downtime, operating seamlessly in either Managed or Self-Managed modes. It's advanced battery management includes an industry-first automatic fallback to Self-Management if communication with the inverter is lost. For added convenience, pre-wired cabinet options (6 or 10 module capacity) feature quick plug-and-play connections, significantly reducing installation time.

Select the quantity of modules, along with your choice of cabinet from the drop down menu.

Please Note: These are heavy items with shipping on a pallet to nearest freight depot or unloading facilities required, otherwise tailgate fees may apply. Freight is calculated by location and components required; please Contact us to discuss the most cost effective, reliable shipping option to your address.

Main Features:

Unmatched Reliability: Experience uninterrupted power with the industry-first Automatic Fallback to Self-Management, which keeps your system running smoothly, even if communication is lost with inverters.

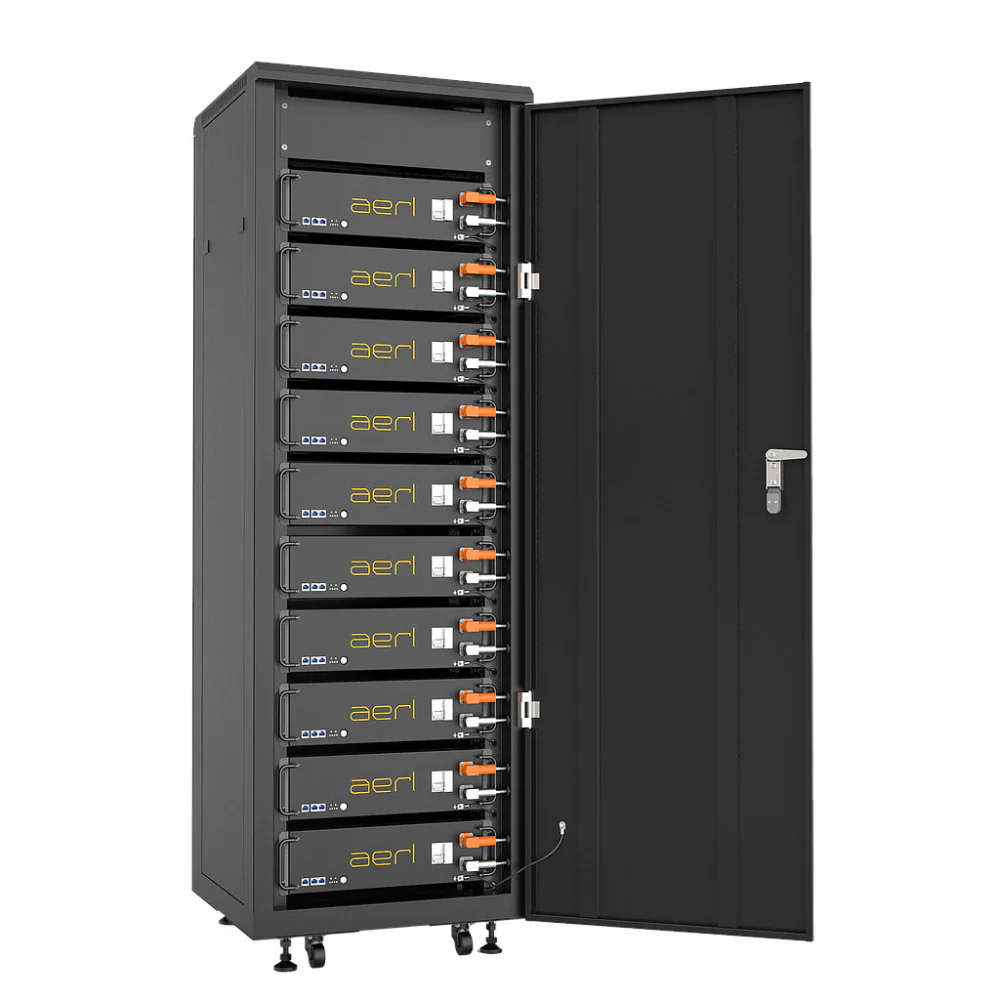

Modern, Sleek Storage: Expandable and securely housed in the specially designed  6 or 10 module cabinets.

Effortless Scalability: Whether you need a small or large setup, the LiFe2- 5120 offers easy expansion with up to 64 batteries connected in parallel, thanks to its plug-and-play design

Hassle-Free Installation: Save time with quick, plug-and-play connections, and enjoy the convenience of hot-swappable modules that can be replaced without any system downtime and interruptions.

Compatibility: Operates with both managed and self managed inverter systems.

Remote Monitoring: Stay in control from anywhere with XESS LINK, which allows you to monitor performance and manage your system remotely.

Built for Tough Environments: Designed for durability, the XESS ION 5120 performs reliably in a wide range of temperatures, making it ideal for challenging climates here in Australia.

Quick Specs:

• Model: LiFe2-5120S

• Nominal Voltage: 51.2 V DC

• Energy Capacity: 5.12 kWh / 100 Ah

• Voltage Range: 40.8 V – 58.4 V DC

• Max Continuous Discharge Power: 5.12 kW (1C)

• Peak Discharge Power: 10.24 kW (200 A for 5s)

• Max Continuous Charge/Discharge Current: 100 A

• Peak Charge Current: 200 A

• Depth of Discharge: Up to 100%

• Cell Chemistry: LiFePO4 (Prismatic)

• Cooling: Natural convection

• Operating Temperature (Managed): Charge: -10°C to 50°C / Discharge: -20°C to 50°C

• Operating Temperature (Self-Managed): Charge: 0°C to 50°C / Discharge: -5°C to 50°C

• Efficiency: >96%

• Communications: CAN 2.0A / RS485

• Scalability: Up to 64 units in parallel

• IP Rating: IP40

• Weight: 44 kg

• Dimensions (W x D x H): 440 x 134 x 480 mm

• Integrated Protection: 1-pole 125A 80V DC breaker, BMS with over/under-voltage and over-temp cut-offs

• Certifications:

• Cell: UL1973, UL9540A, IEC62619:2022, UN38.3

• Pack: IEC62619:2022, IEC62040, UN38.3, CE

• Warranty: 5 + 5 years (conditions apply)
