The Orient Power MAX-7200 Off-Grid Inverter offers a powerful and flexible solution for managing energy needs. With an impressive 7200W of AC power output, its standout features include a customisable LED display, built-in Wi-Fi for real-time monitoring via mobile devices and USB On-the-Go support.

Additionally, the inverter can be expanded with up to six units in parallel, making it scalable for larger power needs.

USB On-The-Go (OTG)

In solar applications this allows mobile devices to monitor, control and charge through solar power setups. It enables smartphones to act as monitoring tools for solar systems, facilitates data logging and supports firmware updates and configuration of solar equipment.

Main Features:

Timer control on AC output & charging
Plug & Play with Orient Power & Jakiper Battery.
Wall-mounted match with Powerwall.
Built-in Genset starter dry contact
Equalization Charge
Built-in MPPT solar charger max 80A
Built-in utility battery charger max 80A
Online upgrade
Adjustable Bulk/Float charging voltage
Indoor installation only
FREE monitoring software
Customizable LED bar with RGB lights and Detachable LED Display
Built-in Wi-Fi for mobile monitoring (iOS/Android)
USB On-the-Go support
Replaceable fan design for easy maintenance
Battery-independent operation
Configurable AC/PV output usage
Selectable high-power charging current
Supports parallel operation of up to 6 units

Quick Specs:

Rated Power: 7200 VA / 7200 W
Parallel Compatibility: Up to 6 Units
Voltage: 230 VAC
Voltage Range: 170-280 VAC (For Personal Computers) 90-280 (For Home
Appliances)
Frequency Range: 50/60 Hz (Auto sensing)
AC Voltage: 230 VAC ± 5%
Surge Power: 15000 VA
Efficiency (Peak): 90%-93%
Transfer Time: 15 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform: Pure SIne Wave
No Load Power Consumption: < 70W
Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDV
Overcharge Protection: 66 VDC
Solar Charger Type: MPPT
Maximum PV Array Power: 8000 (4000 x 2)
Maximum Solar/ And Charge and Charging Current: 80A
Dimension: 147.4 x 432.5 x 553.6 mm
Net Weight: 18.4 kg
Communication Port" USB/RS232/RS485/WiFi/Dry-Contact
Warranty: 3 years

Specifications

Click here to view Datasheet

Jakiper, Orient Power

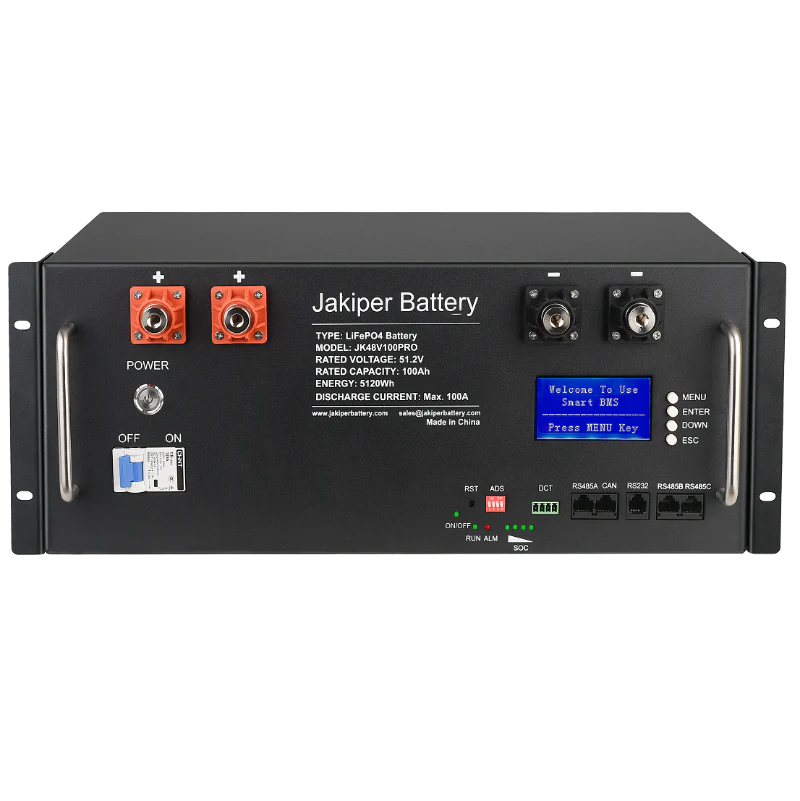

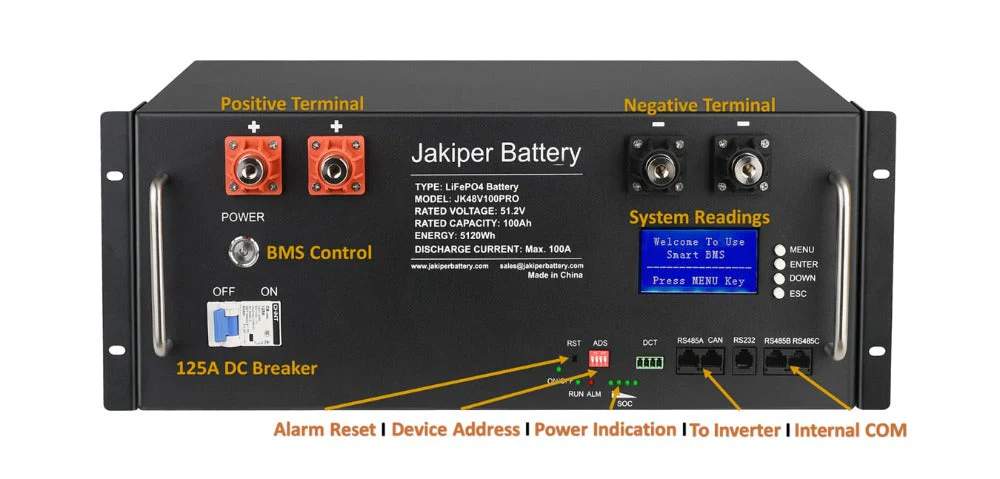

Jakiper PRO 48V 100Ah Solar and Server LiFePO4 Lithium Battery, Aus stock - JK48V100PRO

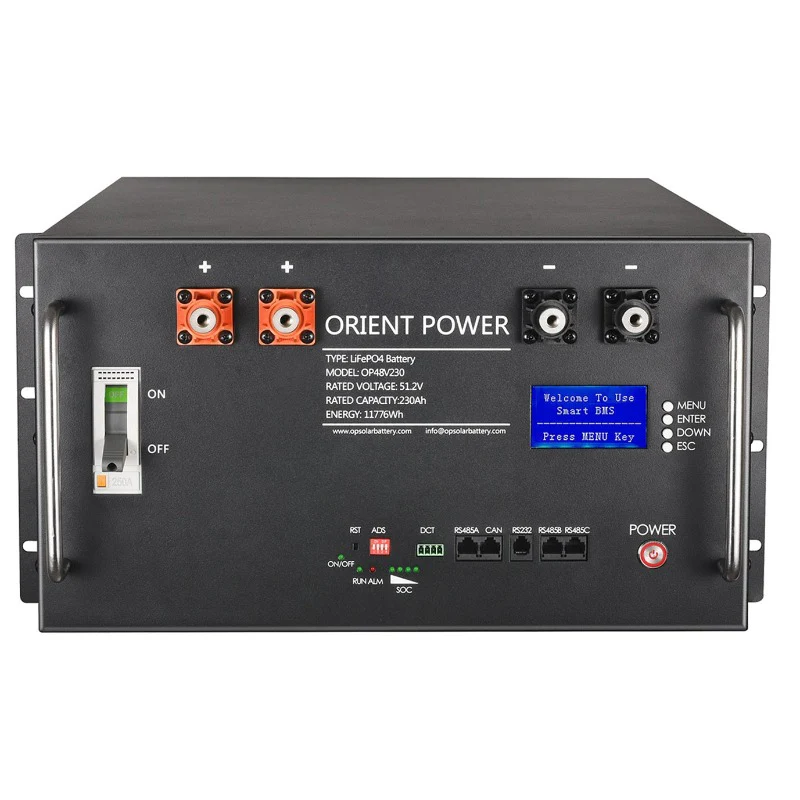

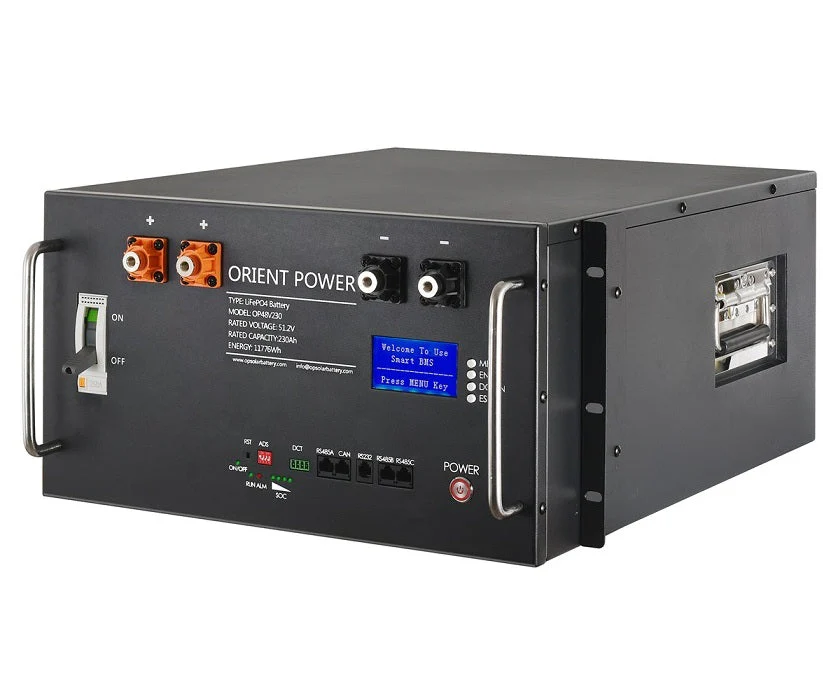

Jakiper 48V 230Ah Orient Power Solar and Server LiFePO4 Lithium Battery, Aus stock - OP48V230

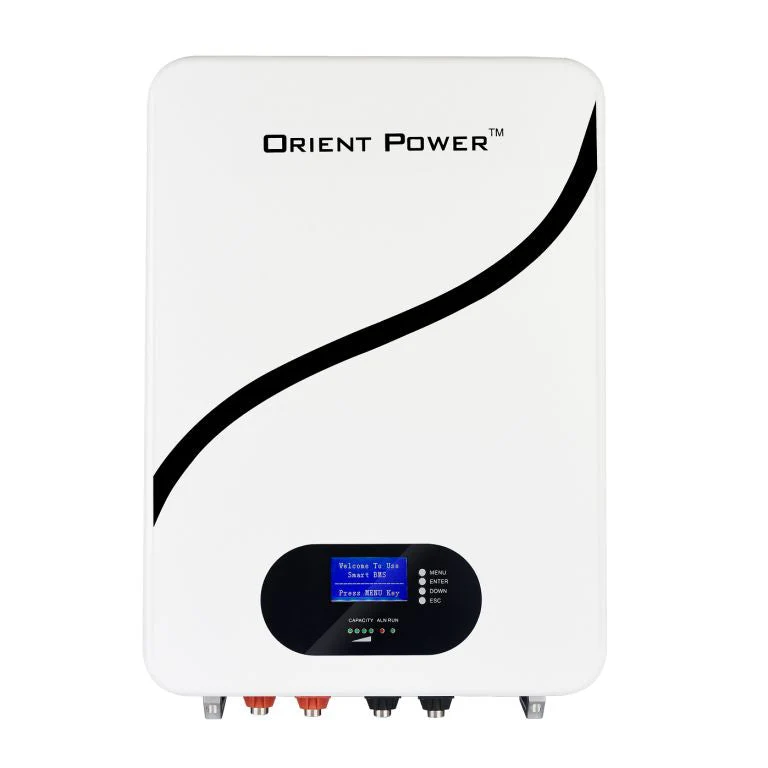

Jakiper Orient Power 48V 100Ah Wall Mounted LiFePO4 Lithium Solar Battery, Aus stock - 48100PW

Orient Power 7200W MAX-7200 48V Off Grid 230V Hybrid Inverter

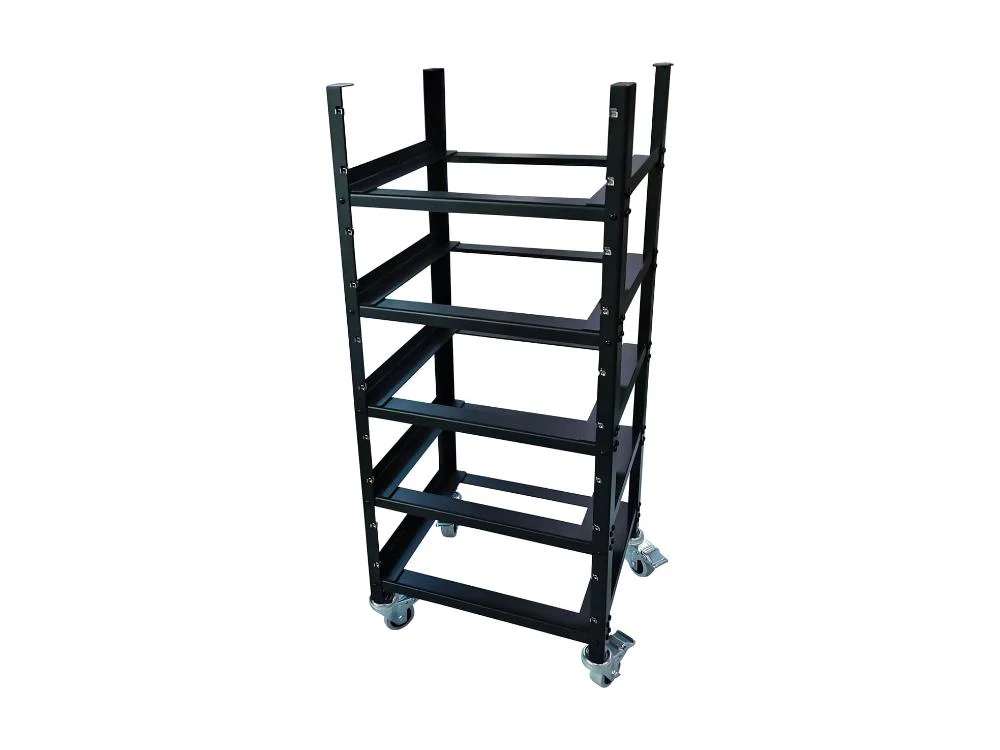

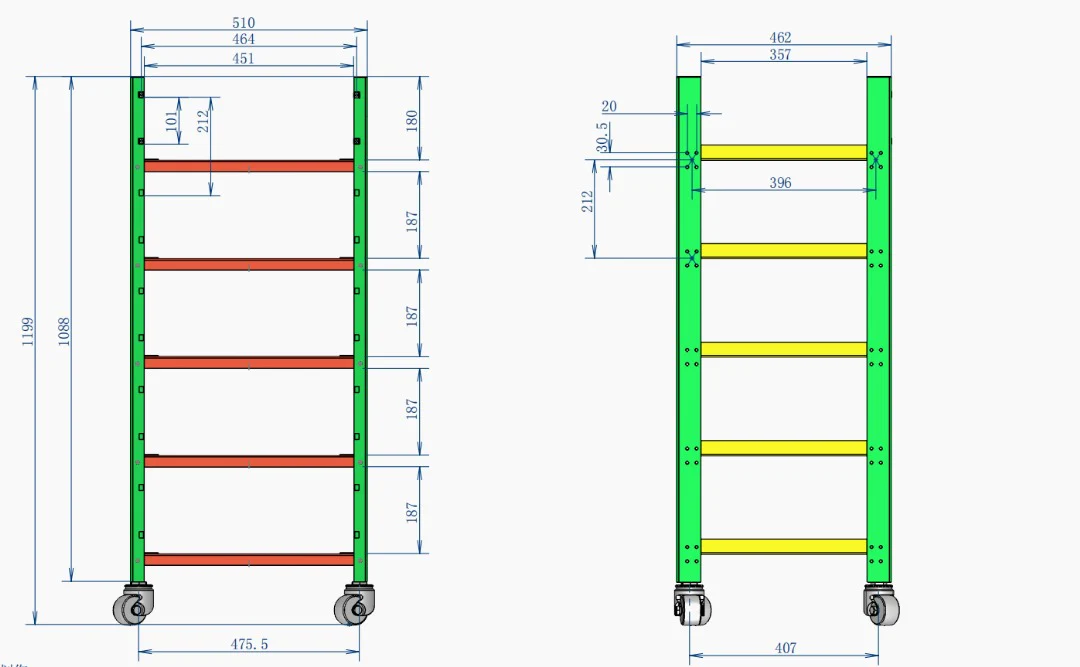

Jakiper Rack System for up to 5 Server Rack Batteries - 4U Size
