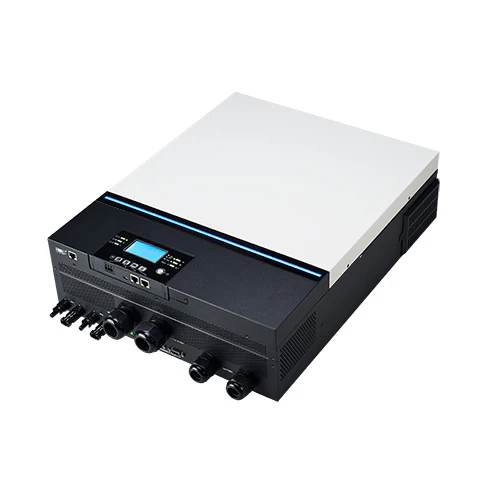

Orient Power 7200W MAX-7200 48V Off Grid 230V Hybrid Inverter

The Orient Power MAX-7200 Off-Grid Inverter offers a powerful and flexible solution for managing energy needs. With an impressive 7200W of AC power output, its standout features include a customisable LED display, built-in Wi-Fi for real-time monitoring via mobile devices and USB On-the-Go support.

Additionally, the inverter can be expanded with up to six units in parallel, making it scalable for larger power needs.

USB On-The-Go (OTG)

In solar applications this allows mobile devices to monitor, control and charge through solar power setups. It enables smartphones to act as monitoring tools for solar systems, facilitates data logging and supports firmware updates and configuration of solar equipment.

Main Features:

• Timer control on AC output & charging
• Plug & Play with Orient Power & Jakiper Battery.
• Wall-mounted match with Powerwall.
• Built-in Genset starter dry contact
• Equalization Charge
• Built-in MPPT solar charger max 80A
• Built-in utility battery charger max 80A
• Online upgrade
• Adjustable Bulk/Float charging voltage
• Indoor installation only
• FREE monitoring software
• Customizable LED bar with RGB lights and Detachable LED Display
• Built-in Wi-Fi for mobile monitoring (iOS/Android)
• USB On-the-Go support
• Replaceable fan design for easy maintenance
• Battery-independent operation
• Configurable AC/PV output usage
• Selectable high-power charging current
• Supports parallel operation of up to 6 units

Quick Specs:

• Rated Power: 7200 VA / 7200 W

• Parallel Compatibility: Up to 6 Units

• Voltage: 230 VAC

• Voltage Range: 170-280 VAC (For Personal Computers) 90-280 (For Home
• Appliances)

• Frequency Range: 50/60 Hz (Auto sensing)

• AC Voltage: 230 VAC ± 5%

• Surge Power: 15000 VA

• Efficiency (Peak): 90%-93%

• Transfer Time: 15 ms (For Personal Computers); 20 ms (For Home Appliances)

• Waveform: Pure SIne Wave

• No Load Power Consumption: < 70W

• Battery Voltage: 48 VDC

• Floating Charge Voltage: 54 VDV

• Overcharge Protection: 66 VDC

• Solar Charger Type: MPPT

• Maximum PV Array Power: 8000 (4000 x 2)

• Maximum Solar/ And Charge and Charging Current: 80A

• Dimension: 147.4 x 432.5 x 553.6 mm

• Net Weight: 18.4 kg

• Communication Port" USB/RS232/RS485/WiFi/Dry-Contact

• Warranty: 3 years

Specifications

Click here to view Datasheet
