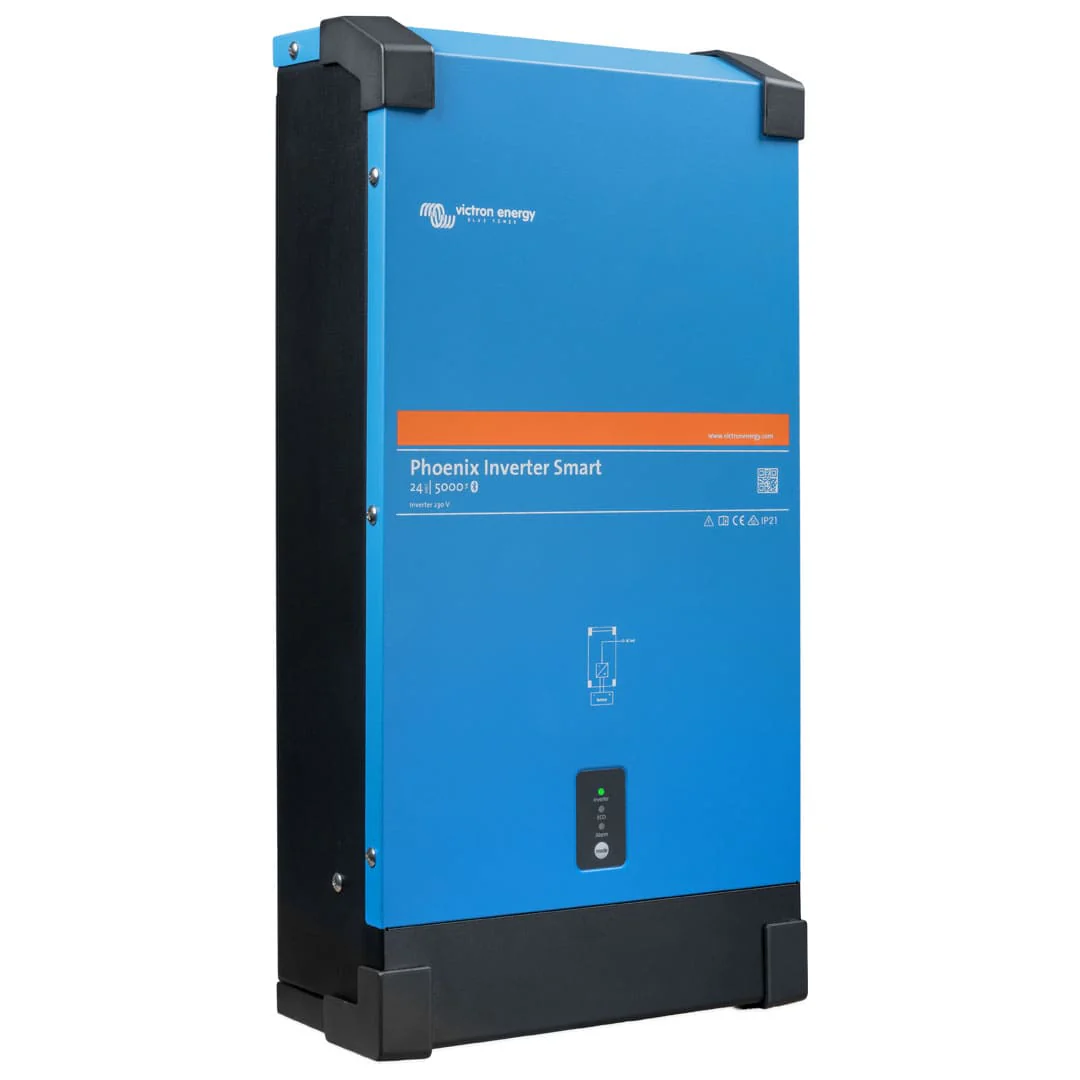

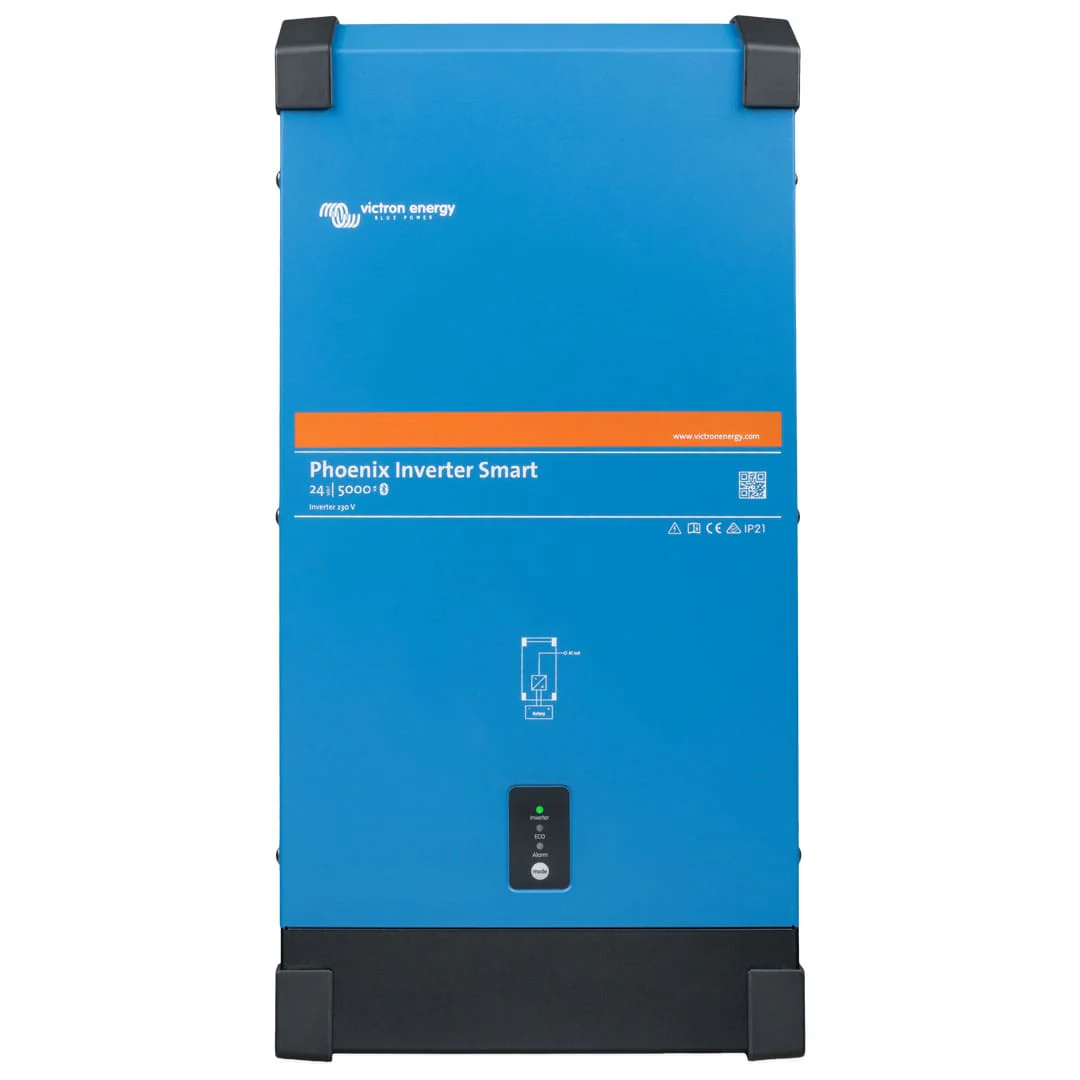

Victron Phoenix Inverter 24/5000 230V Smart - PIN242501000

The Victron Phoenix Inverter 24/5000 230V Smart - PIN242501000 is an efficient and reliable inverter.
Built on our proven and field-tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing.

This 24v battery inverter is powerful enough to supply the most common plug-in appliances in your car, boat, caravan or home.
A toroidal transformer provides a high peak power surge capacity, outputting stable voltage and frequency, with a high-quality sine-wave.

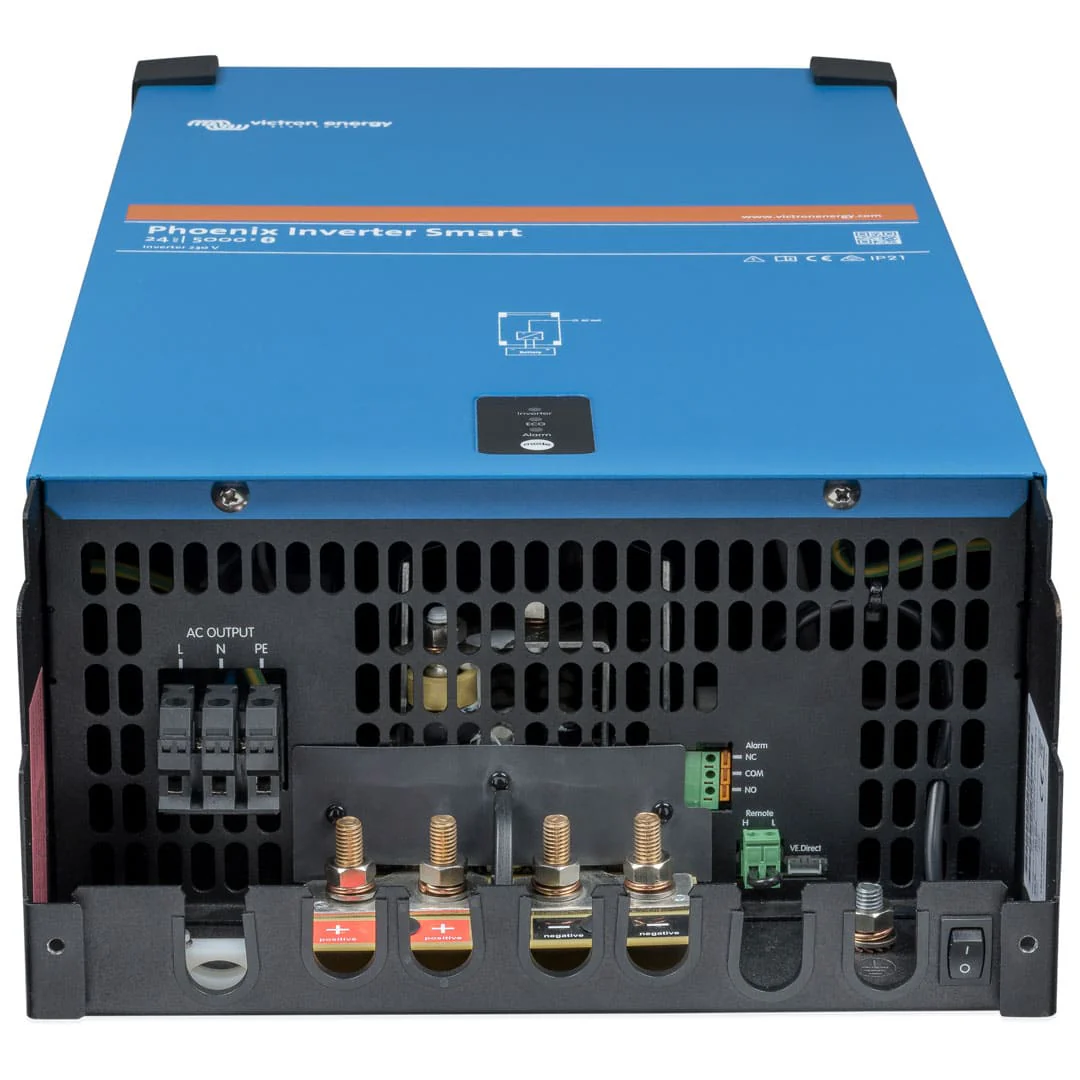

Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

Main Features:

• Bluetooth built-in:
  Fully configurable with a tablet or smartphone, for remote monitoring and system integration.

• Low battery voltage alarm
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level

• Output voltage: 210 – 245 V

• Frequency: 50 Hz or 60 Hz

• ECO mode on/off

  VE. Direct communication port: The VE. Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.

  Proven reliability: The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

  High start-up power: Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

  ECO mode: When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once on standby, the inverter will switch on for a short period every few seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.

  Remote on/off: A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (left) of the two pole connectors can be switched to battery plus, or the L terminal (right) of the two pole connectors can be switched to battery minus (or the chassis of a vehicle, for example).

Also Available in:

• Victron Phoenix Inverter 12/1600 230V Smart

• Victron Phoenix Inverter 24/1600 230V Smart

• Victron Phoenix Inverter 48/1600 230V Smart

• Victron Phoenix Inverter 12/2000 230V Smart

• Victron Phoenix Inverter 24/2000 230V Smart

• Victron Phoenix Inverter 48/2000 230V Smart

• Victron Phoenix Inverter 12/3000 230V Smart

• Victron Phoenix Inverter 24/3000 230V Smart

• Victron Phoenix Inverter 48/3000 230V Smart

• Victron Phoenix Inverter 48/5000 230V Smart

Specifications:

Click Here To View Victron Phoenix Inverter 24/5000 230V Smart DATASHEET

Manual:

Click Here To View Victron Phoenix Inverter 24/5000 230V Smart MANUAL
