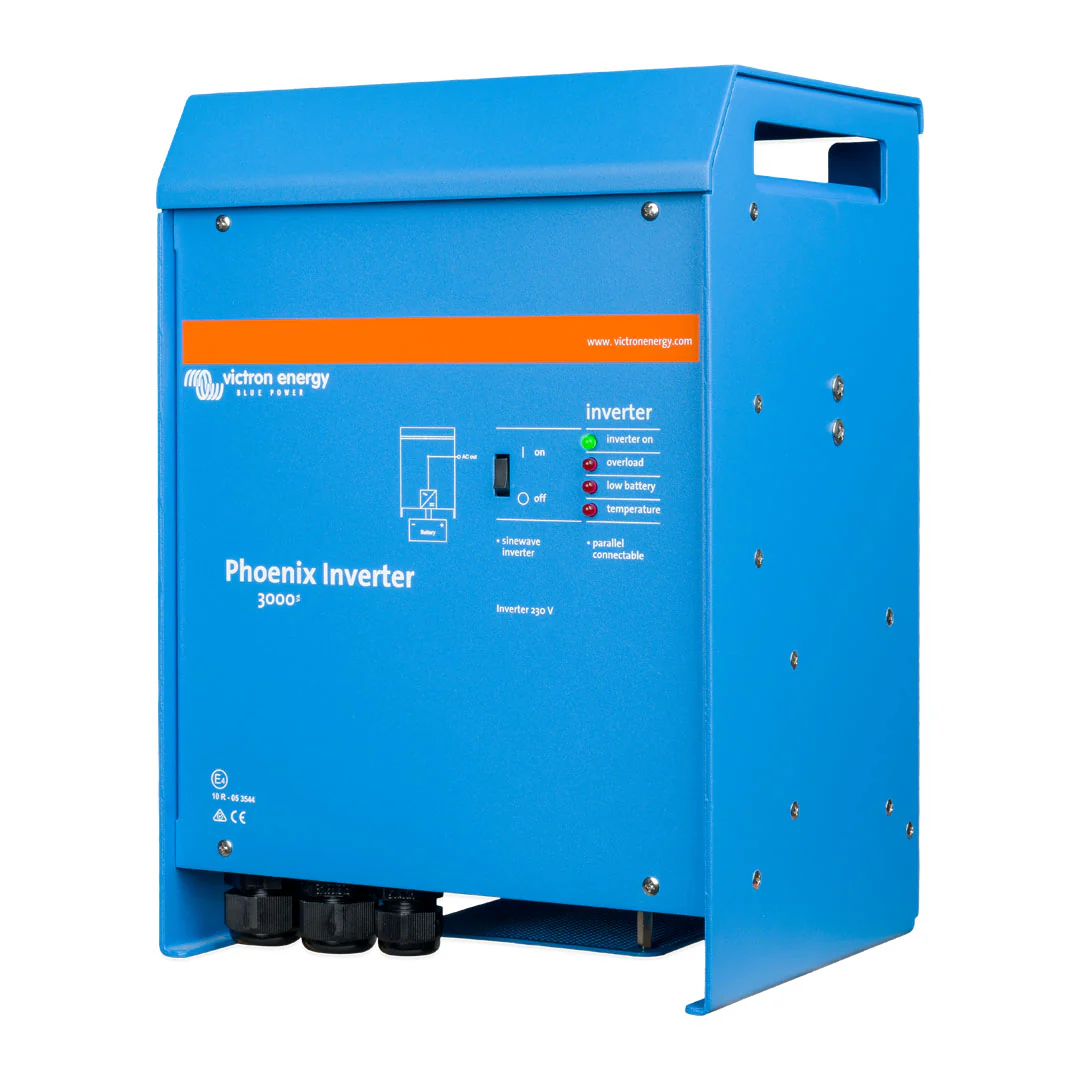

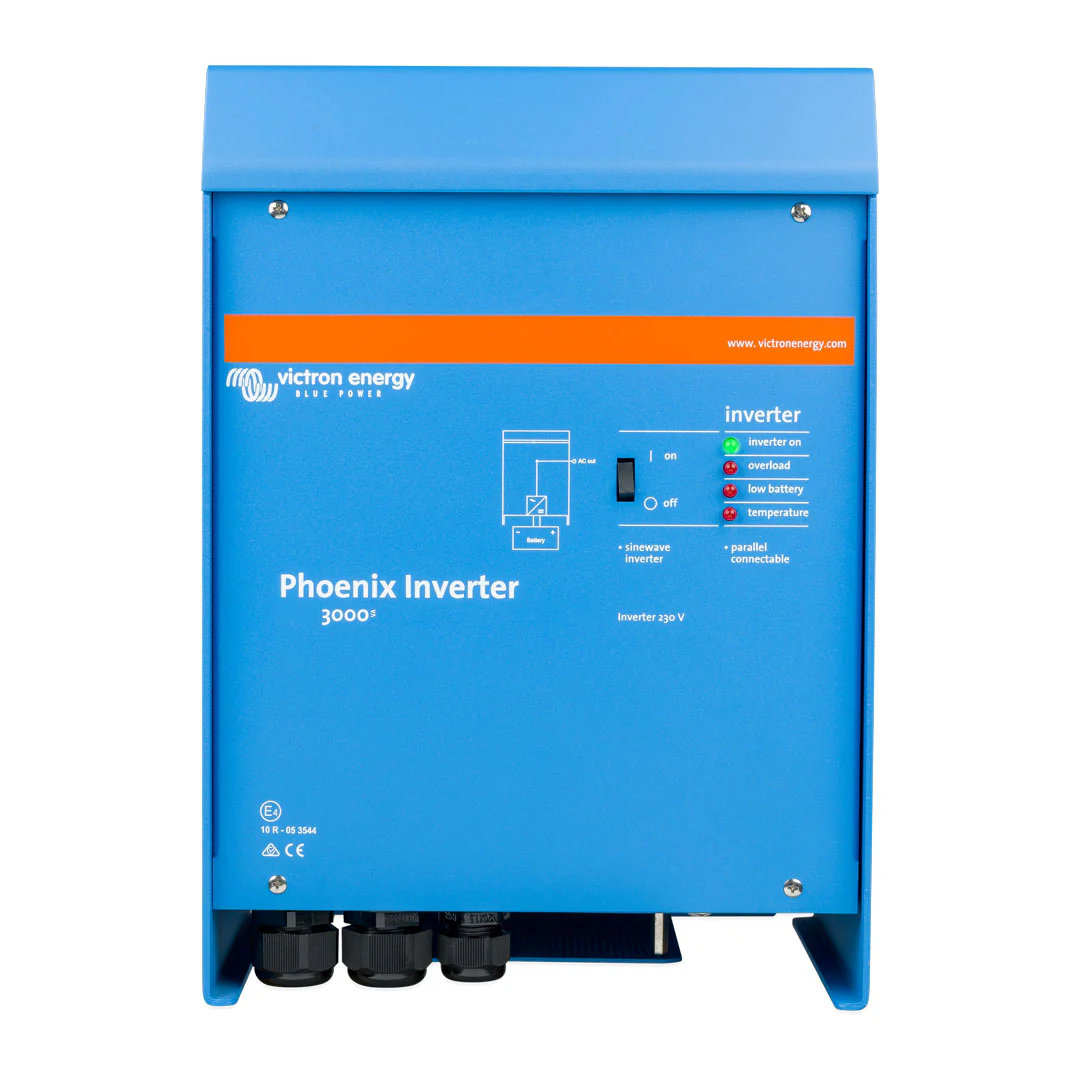

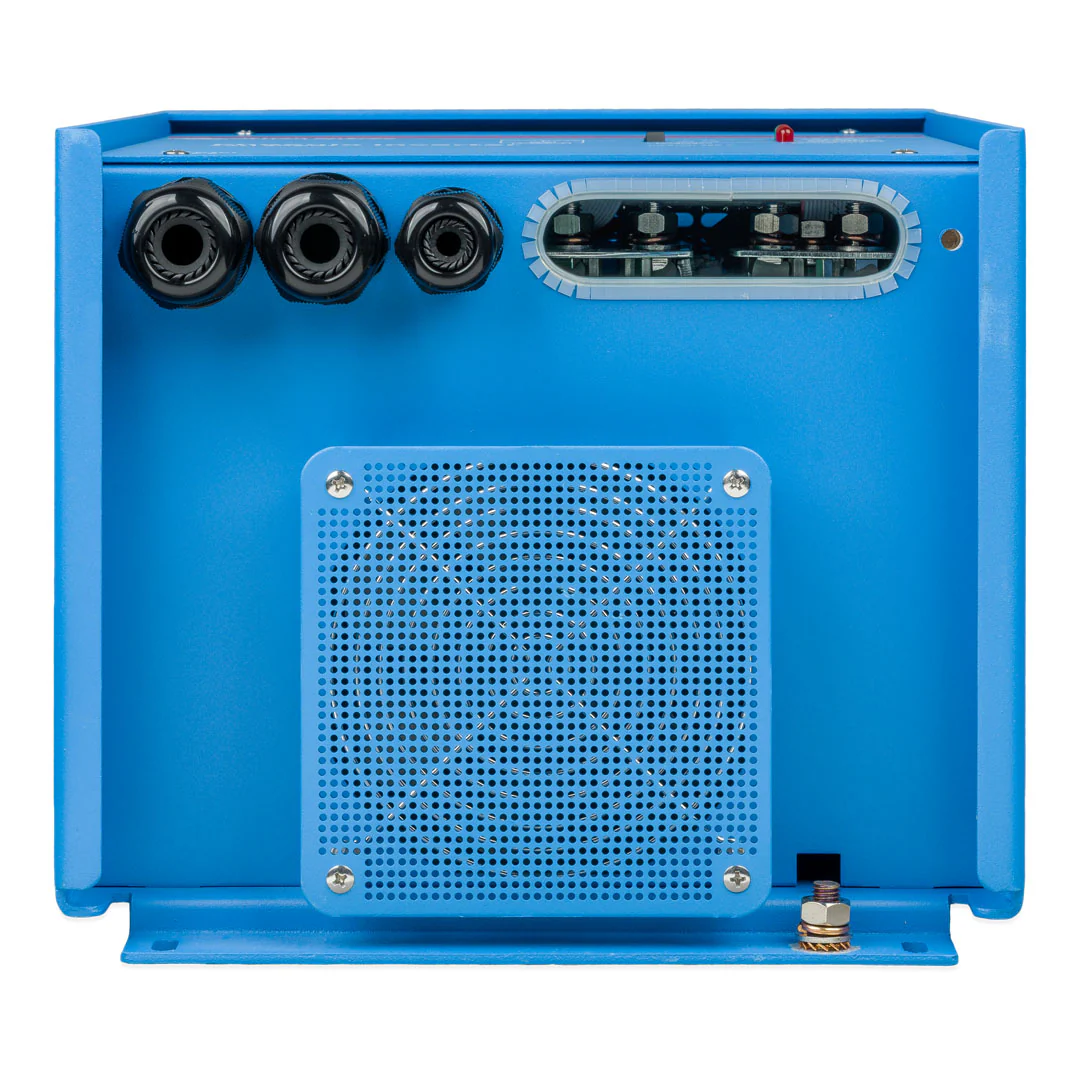

Victron Phoenix Inverter 12/3000 230V VE. Bus - PIN123020000

The Victron Phoenix Inverter 12/3000 230V VE. Bus - PIN123020000 is a pure sine wave inverter with a high efficiency. It is developed for professional duty and is suitable for a wide range of applications. It also provides reliable, stable and clean power that reduces the risk of damage to connected and sensitive devices and ensures they operate efficiently.

Main Features:

Powered by SinusMax Technology - Superior engineering: Ideal for a wide variety of applications with optimized efficiency while maintaining high performance.

Extra start-up power: A distinctive feature of SinusMax technology is its exceptionally high start-up power, which surpasses the capabilities of conventional high-frequency technology. These inverters are specifically designed to handle challenging loads, making them suitable for powering devices like refrigeration compressors, electric motors, and similar appliances.

Virtually limitless power through parallel and 3-phase operation capability: Up to 6 units of inverters can operate in parallel to achieve higher power output. (VE. Bus to NMEA 2000 interface cable needed)

Communications interface: This inverter is equipped with a VE. Bus port, allowing easy connection to your PC using an MK3-USB VE.Bus to USB interface (sold separately). By downloading the free VictronConnect or VEConfigure software from the website, you can customize the inverter's parameters, such as output voltage and frequency, over and under voltage settings, and relay programming. The relay can be configured to signal various alarm conditions or to start a generator. Additionally, the inverters can be connected to a GX device (sold separately) for monitoring and control.

Also Available in:

• Victron Phoenix Inverter Compact 12/1200 230V VE.Bus

• Victron Phoenix Inverter Compact 12/1600 230V VE.Bus

• Victron Phoenix Inverter Compact 12/2000 230V VE.Bus
• Victron Phoenix Inverter Compact 24/1600 230V VE.Bus

• Victron Phoenix Inverter Compact 24/2000 230V VE.Bus

• Victron Phoenix Inverter 24/3000 230V VE.Bus

• Victron Phoenix Inverter 24/5000 230V VE.Bus

• Victron Phoenix Inverter 48/3000 230V VE.Bus

• Victron Phoenix Inverter 48/5000 230V VE.Bus

Specifications:

Click Here To View Victron Phoenix Inverter 12/3000 230V VE. Bus DATASHEET
