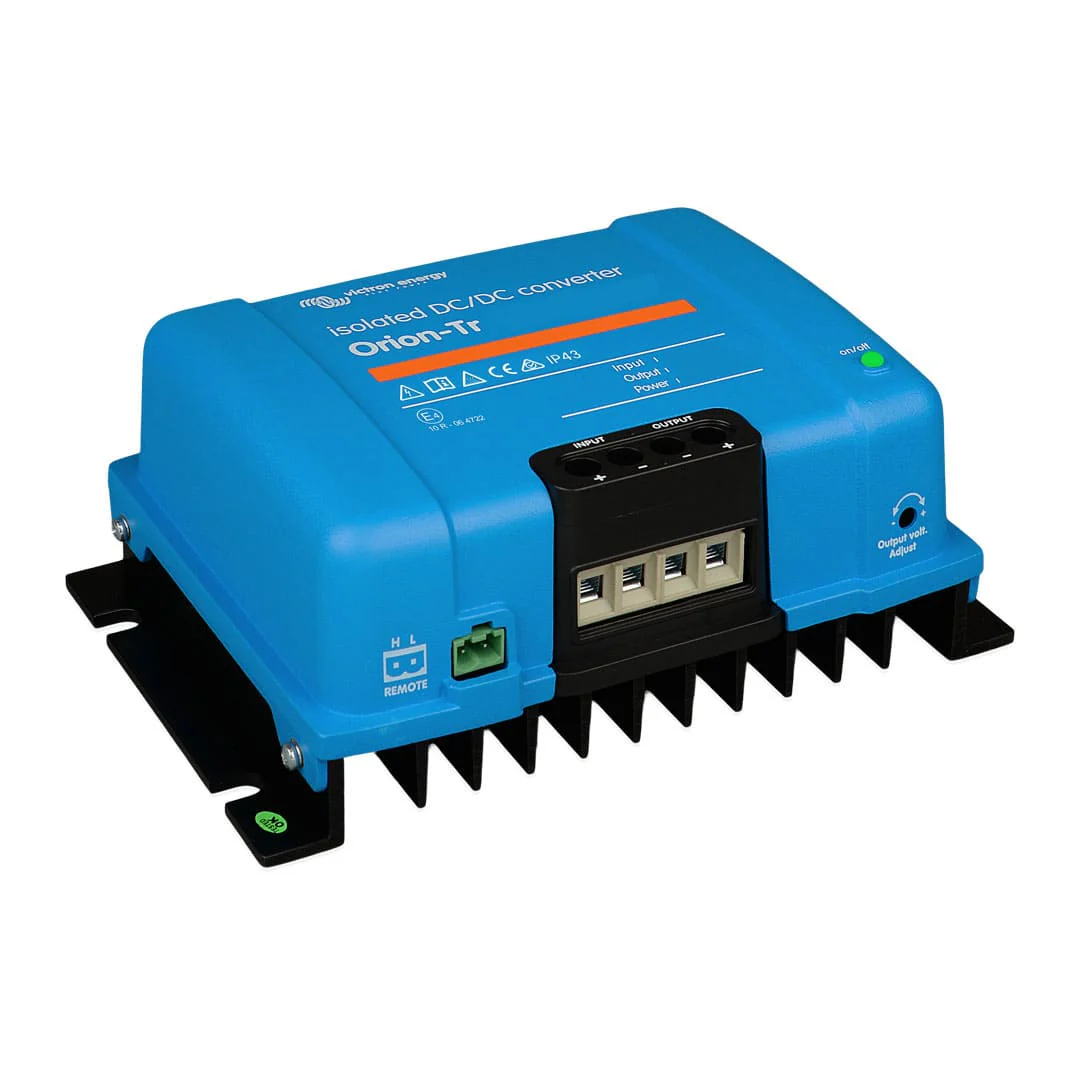

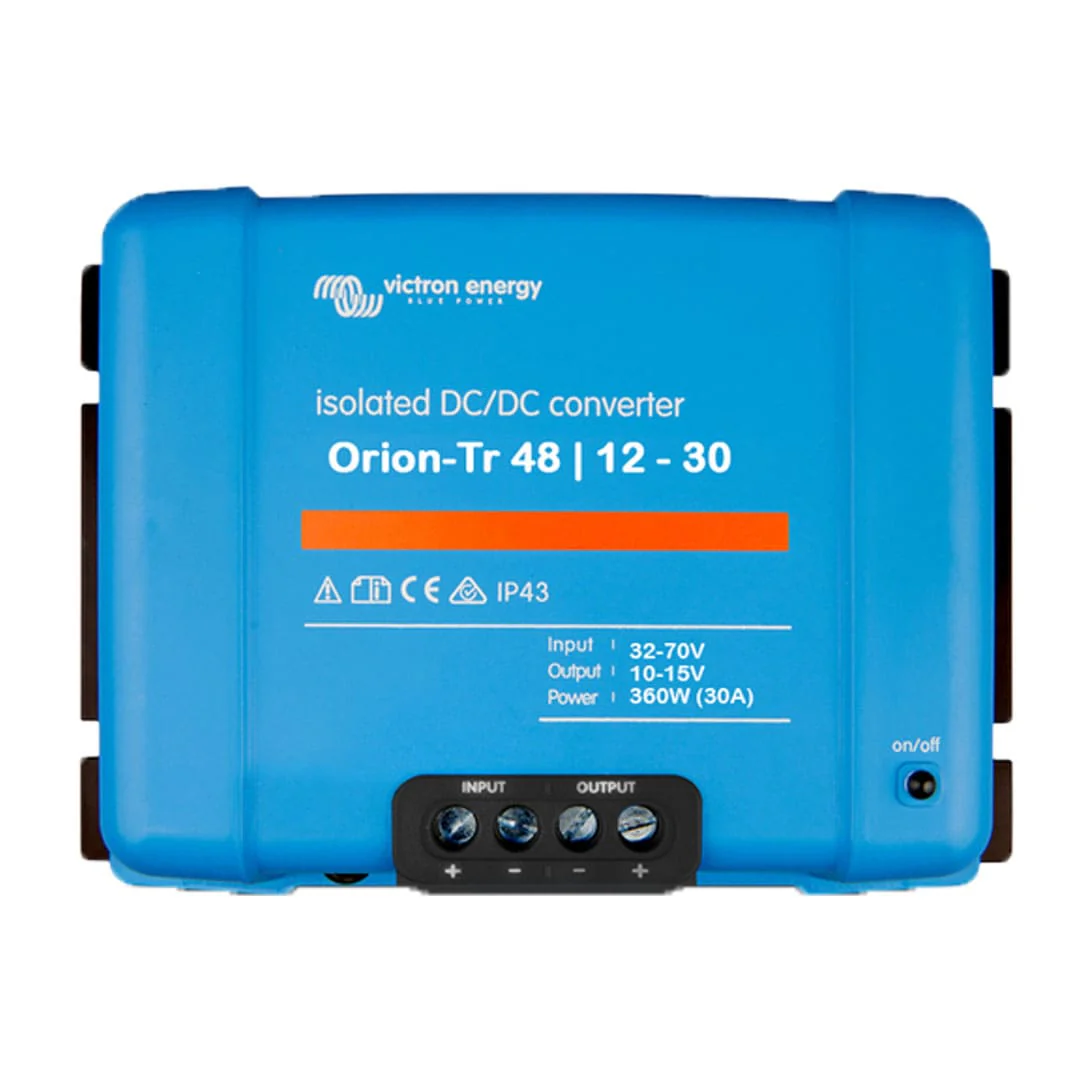

Victron Orion-Tr 48/12-30A (360W) Isolated DC-DC Converter

The Victron Orion-Tr 48/12-30A (360W) DC-DC Isolated Converter is the ideal solution for ensuring reliable and efficient power conversion in your system. Designed to perform under challenging conditions, this converter offers robust performance and exceptional versatility, making it perfect for a wide range of applications.

Main Features:

Seamless Integration: The Orion-Tr converter easily integrates into your setup with its screw terminal connections, requiring no special tools for installation.

Enhanced Durability: Built with high-temperature protection, this converter automatically reduces output to prevent overheating, ensuring long-lasting performance even in demanding environments.

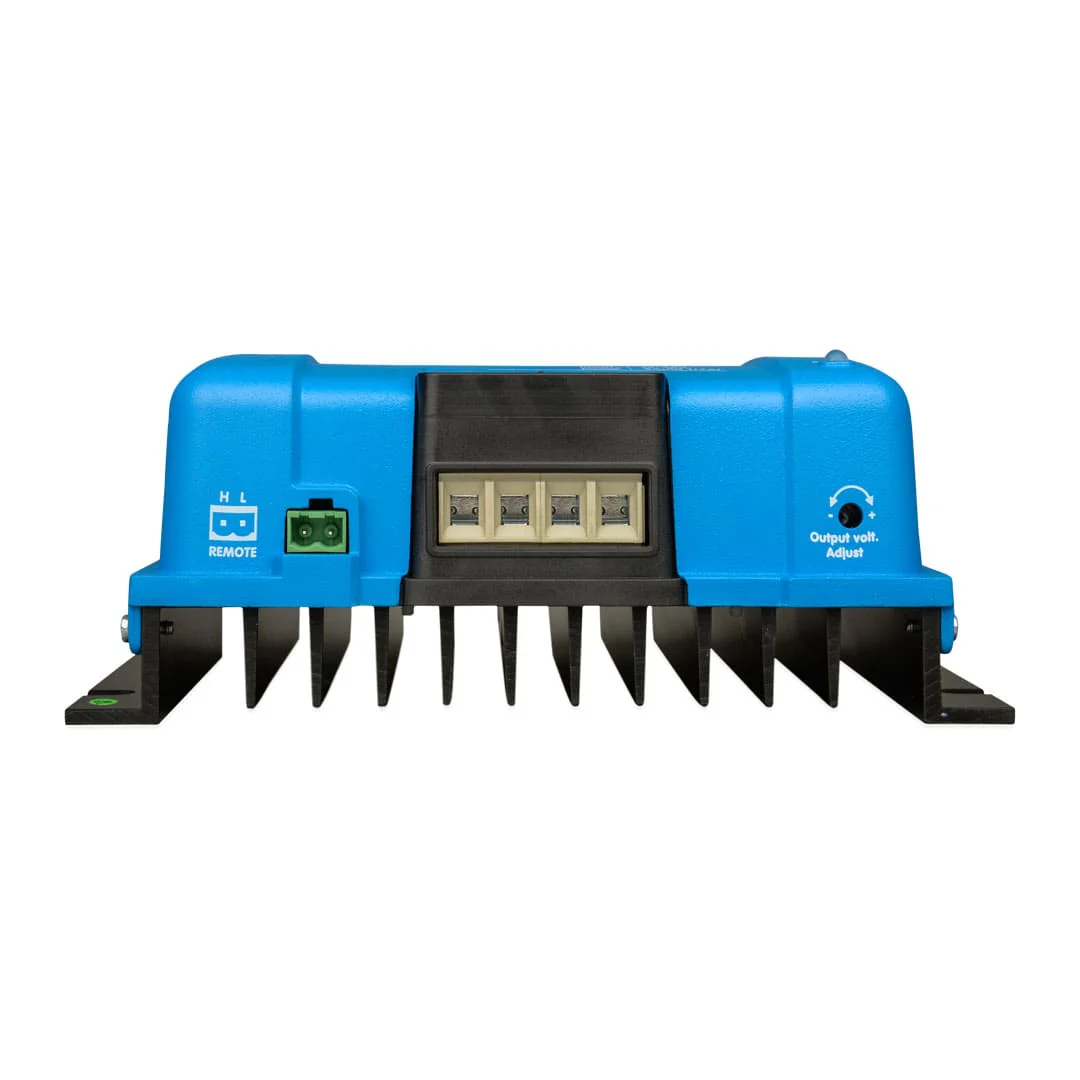

Remote Control: Featuring a remote on/off terminal, you can control the converter effortlessly without the need for a high current switch, adding convenience and flexibility to your power management.
Flexible Output Options: With an adjustable output voltage, you can tailor the converter to meet specific power needs, ensuring optimal performance for your devices.

Safety First: Enjoy peace of mind with the IP43 protection rating when installed correctly, safeguarding the device from dust and water ingress.
High Efficiency: The Orion-Tr converter boasts impressive efficiency ratings, reducing energy loss and maximizing power use, all while maintaining stable output under varying input conditions.



Whether you're looking for power-sensitive electronics, automotive applications, or any system requiring isolated power conversion, the Orion-Tr DC-DC Converter delivers dependable performance and superior adaptability. Upgrade your power management system with Orion-Tr and experience the difference in quality and reliability.

Also Available in:

• Orion-Tr 48/12-9 (110W)
• Orion-Tr 48/24-5 (120 W)
• Orion-Tr 48/48-2,5 (120 W)
• Orion-Tr 48/12-20 (240 W)
• Orion-Tr 48/24-12 (280 W)
• Orion-Tr 48/48-6 (280 W)
• Orion-Tr 48/24-16 (380 W)
• Orion-Tr 48/48-8 (380 W)


Quick Specs:

• Input Voltage Range: 40-70 V
• Nominal Output Voltage: 12.2 V
• Adjustable Output Voltage Range: 10-15 V
• Continuous Output Current (at 40°C): 30 A
• Maximum Output Current (for 10 seconds): 40 A
• Continuous Output Power (at 25°C): 360 W
• Efficiency: 87%
• Operating Temperature Range: -20 to +55°C (with derating above 40°C)
• Protection: IP43 when installed with terminals facing downwards
  Weight: 2 kg (4.4 lbs)
• Dimensions: 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inches)
• Connection Type: Screw terminals
• Galvanic Isolation: 200 VDC between input, output, and case


Specifications

Click Here To View The Victron Orion-Tr 48/12-30A (360W) DC-DC Isolated Converter DATASHEET

Manual

Click Here To View The Victron Orion-Tr 48/12-30A (360W) DC-DC Isolated Converter MANUAL
