$22.85The Story

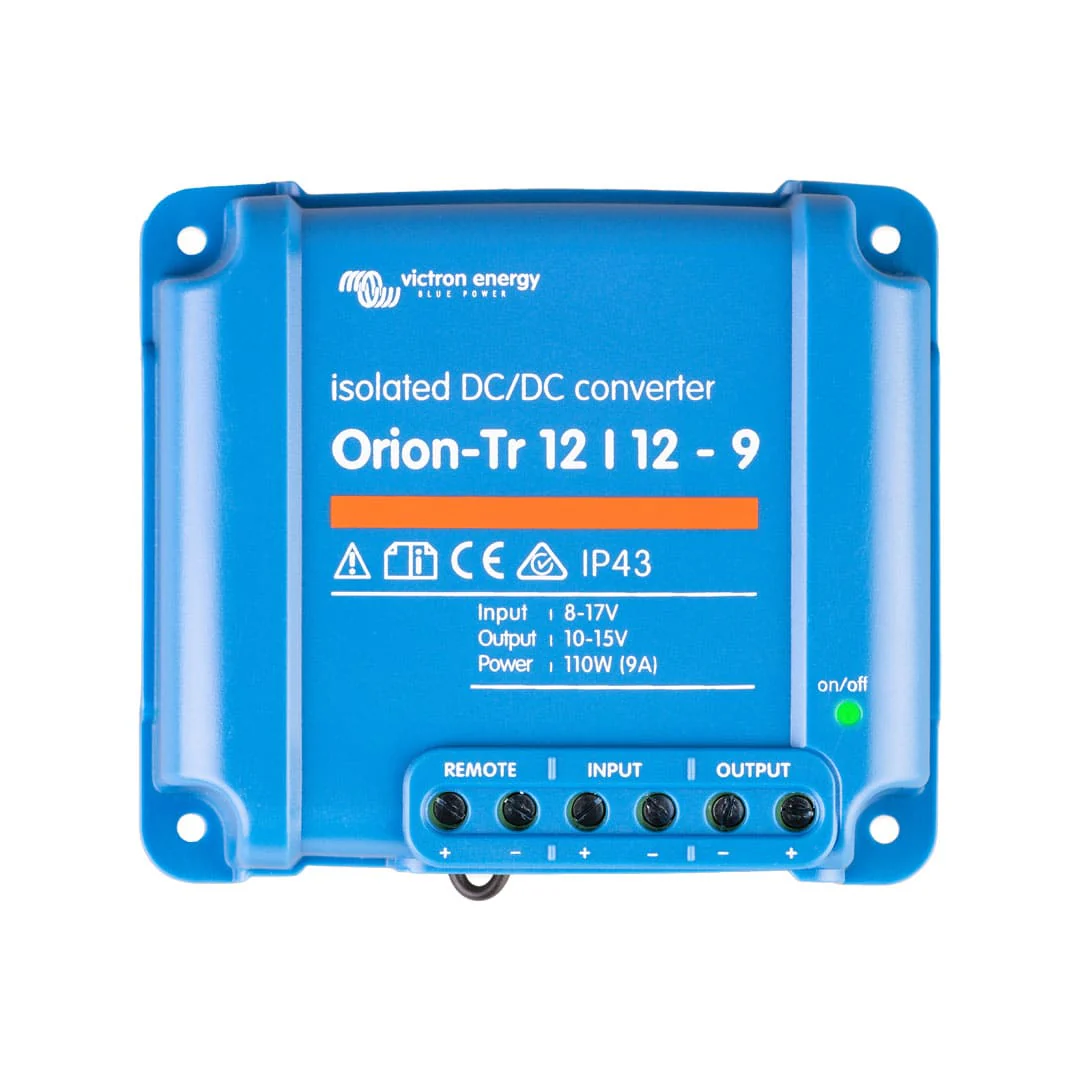

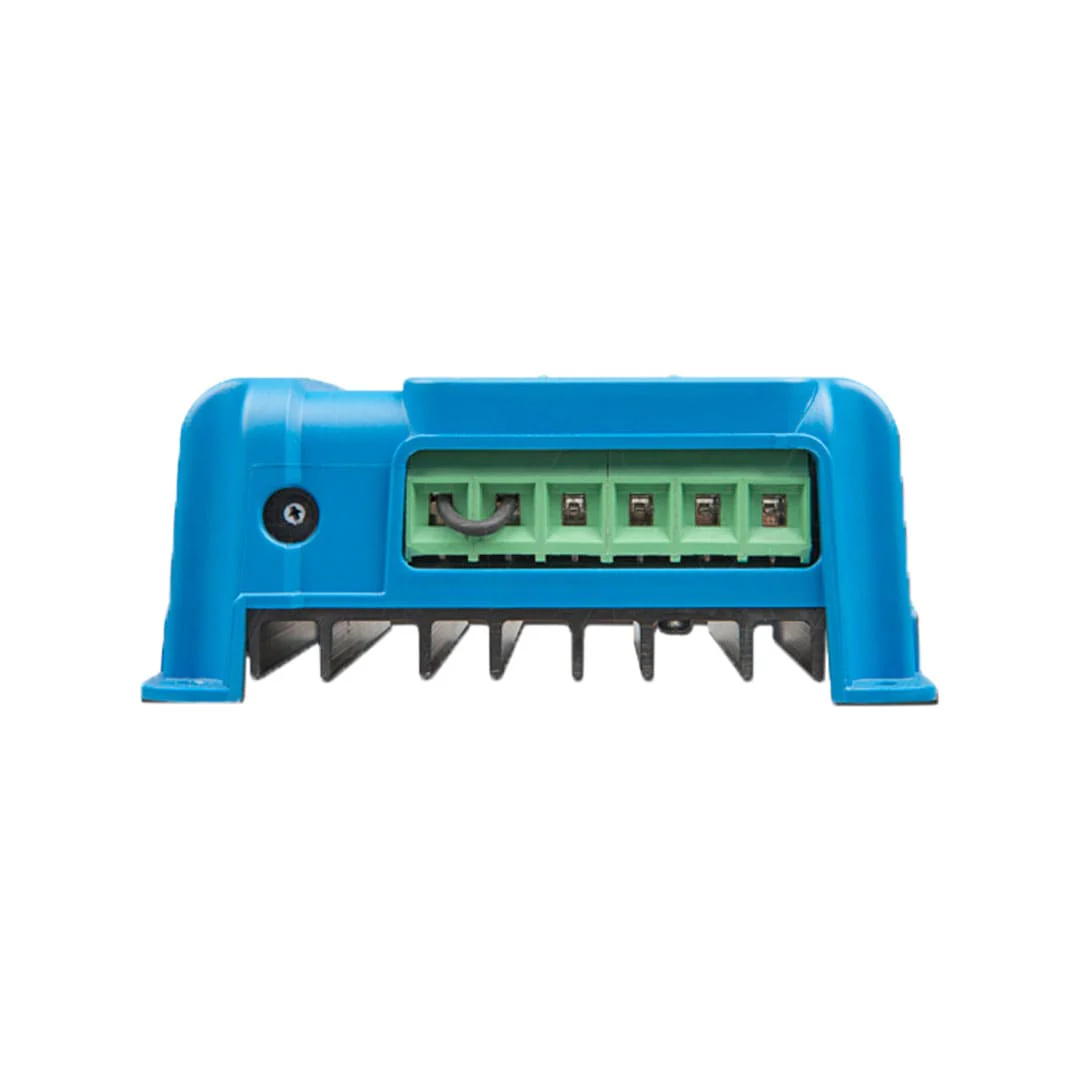

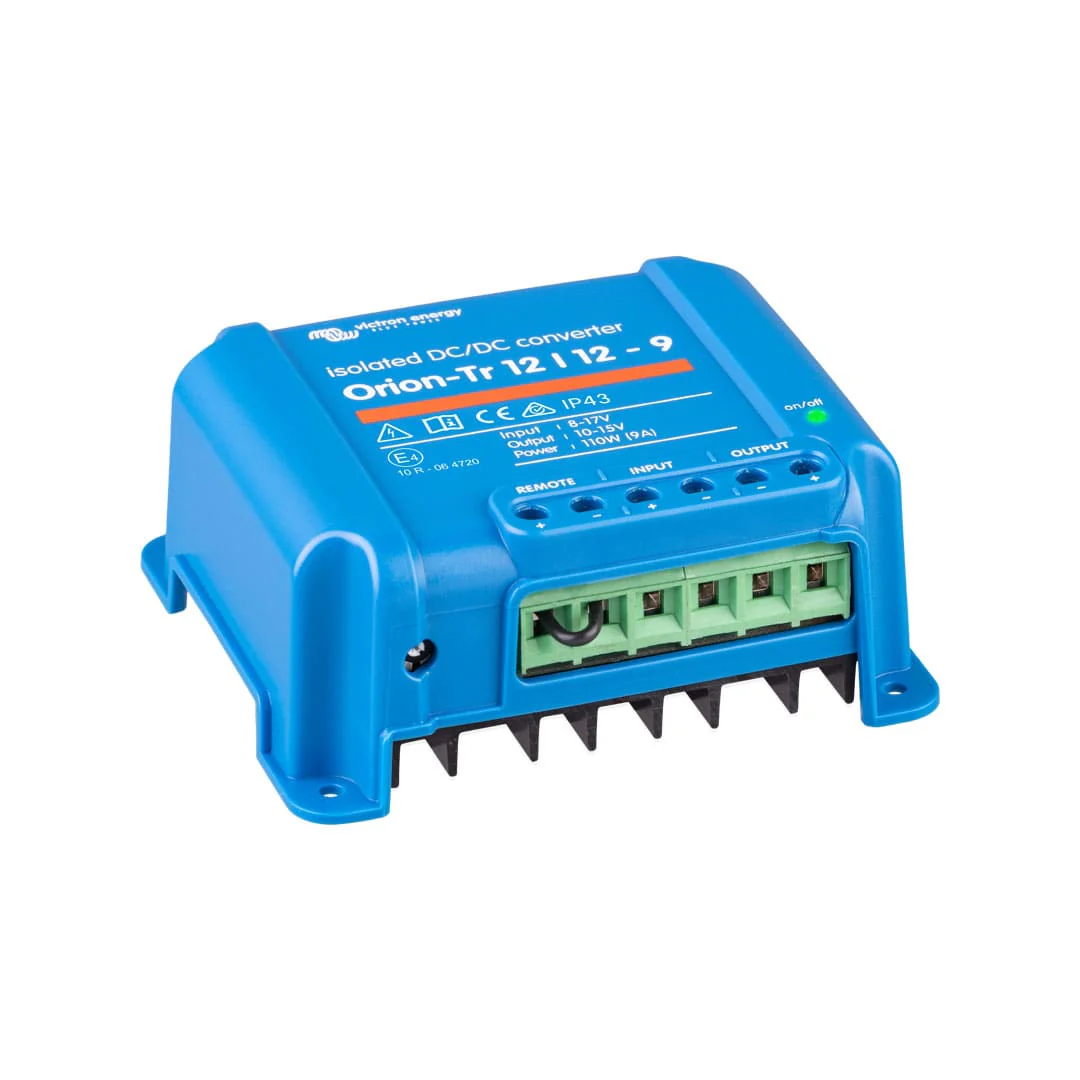

The Victron Orion-Tr 12/12-9A (110W) DC-DC Isolated Converter is the ideal solution for ensuring your system's reliable and efficient power conversion.
Designed to perform under challenging conditions, this Orion-Tr 12/12-9A converter offers robust performance and exceptional versatility, making it perfect for a wide range of applications.
Main Features:
Seamless Integration: The Orion-Tr converter easily integrates into your setup with its screw terminal connections, requiring no special tools for installation.
Enhanced Durability: Built with high-temperature protection, this converter automatically reduces output to prevent overheating, ensuring long-lasting performance even in demanding environments.
Remote Control: Featuring a remote on/off terminal, you can control the converter effortlessly without the need for a high current switch, adding convenience and flexibility to your power management.
Flexible Output Options: With an adjustable output voltage, you can tailor the converter to meet specific power needs, ensuring optimal performance for your devices.
Safety First: Enjoy peace of mind with the IP43 protection rating when installed correctly, safeguarding the device from dust and water ingress.
High Efficiency: The Orion-Tr converter boasts impressive efficiency ratings, reducing energy loss and maximizing power use, all while maintaining stable output under varying input conditions.
Whether you're looking for power-sensitive electronics, automotive applications, or any system requiring isolated power conversion, the Orion-Tr DC-DC Converter delivers dependable performance and superior adaptability. Upgrade your power management system with Orion-Tr and experience the difference in quality and reliability.
Also Available in:
- Orion-Tr 12/24-5 (120 W)
- Orion-Tr 12/12-18 (220 W)
- Orion-Tr 12/24-10 (240 W)
- Orion-Tr 12/12-30 (360 W)
- Orion-Tr 12/24-15 (360 W)
Quick Specs:
- Input Voltage Range: 8-17 V
- Nominal Output Voltage: 12.2 V
- Adjustable Output Voltage Range: 10-15 V
- Continuous Output Current (at 25°C): 9 A
- Maximum Output Current (for 10 seconds): 12.5 A
- Continuous Output Power (at 25°C): 110 W
- Efficiency: 87%
- Operating Temperature Range: -20 to +55°C (with derating above 40°C)
- Protection: IP43 when installed with terminals facing downwards
- Weight: .58 kg (1.28 lbs)
- Dimensions: 110 x 113 x 47 mm (4.0 x 4.5 x 1.9 inches)
- Connection Type: Screw terminals
- Galvanic Isolation: 200 VDC between input, output, and case
Specifications
Click Here To View The Victron Orion-Tr 12/12-9A (110W) DC-DC Isolated Converter DATASHEET
Manual
Click Here To View The Victron Orion-Tr 12/12-9A (110W) DC-DC Isolated Converter MANUAL
