The Story

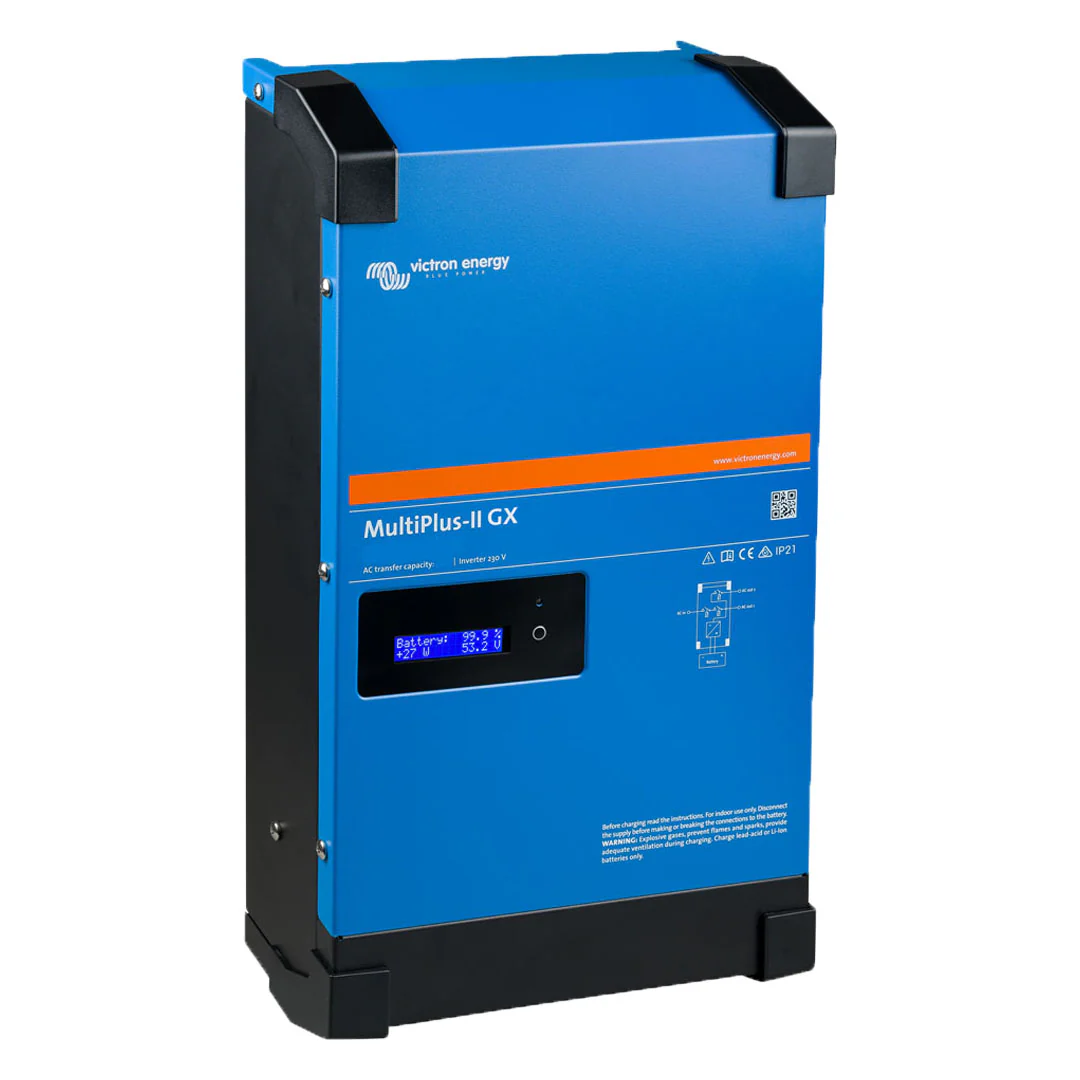

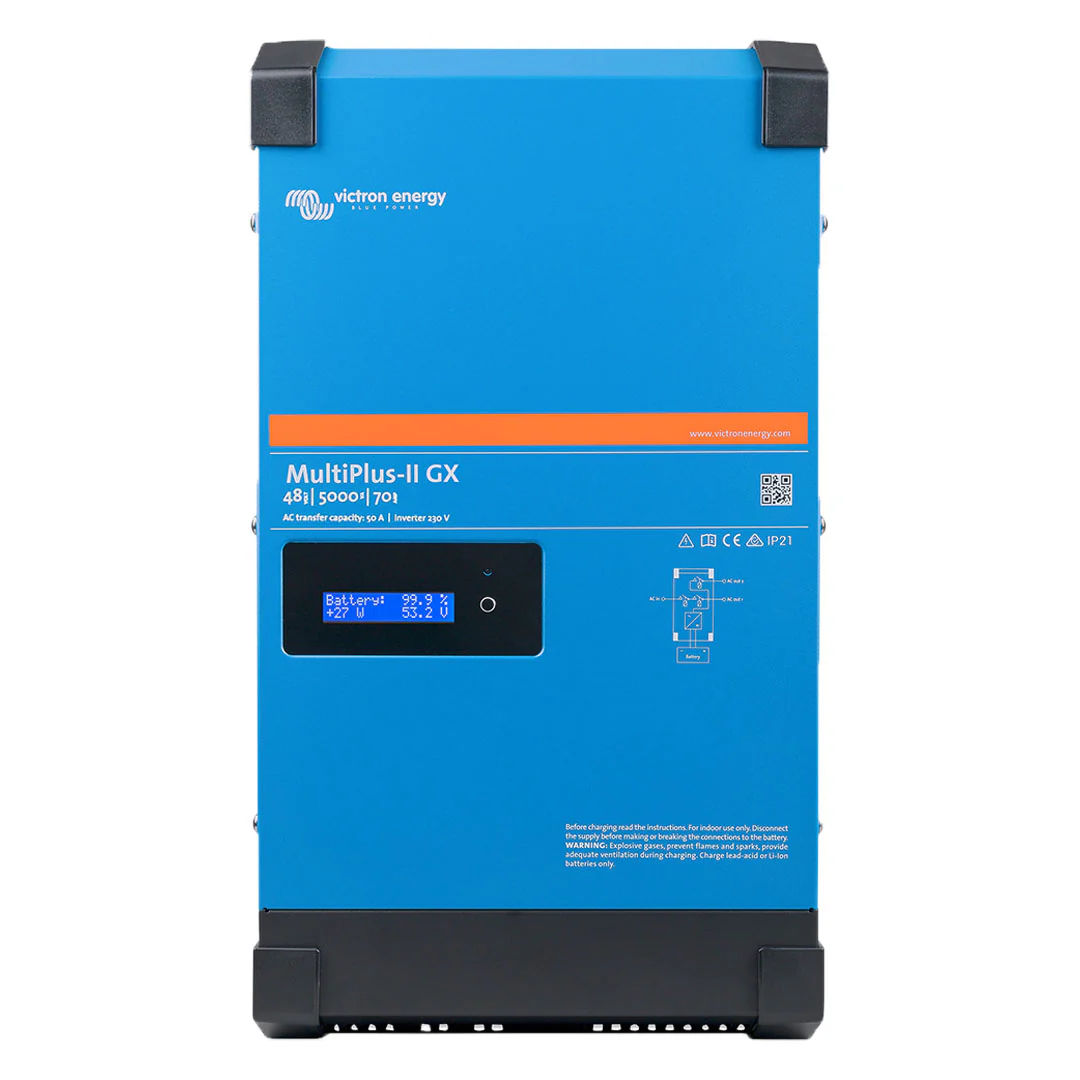

The Victron MultiPlus-II GX 48/5000/70-50 230V
Inverter Charger integrates a MultiPlus-II and a GX device with a 2 x 16 character display and Wi-Fi.
Now CEC approved for ESS Systems
An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries and other devices to control a grid-connected, off-grid or remote power installation.
Capable of parallel operation for increased power output or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply.
The display reads battery, inverter and solar charge controller parameters; the same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device.
Remote monitoring is also possible.
Clean Energy Council (CEC) approved battery. What Is This?

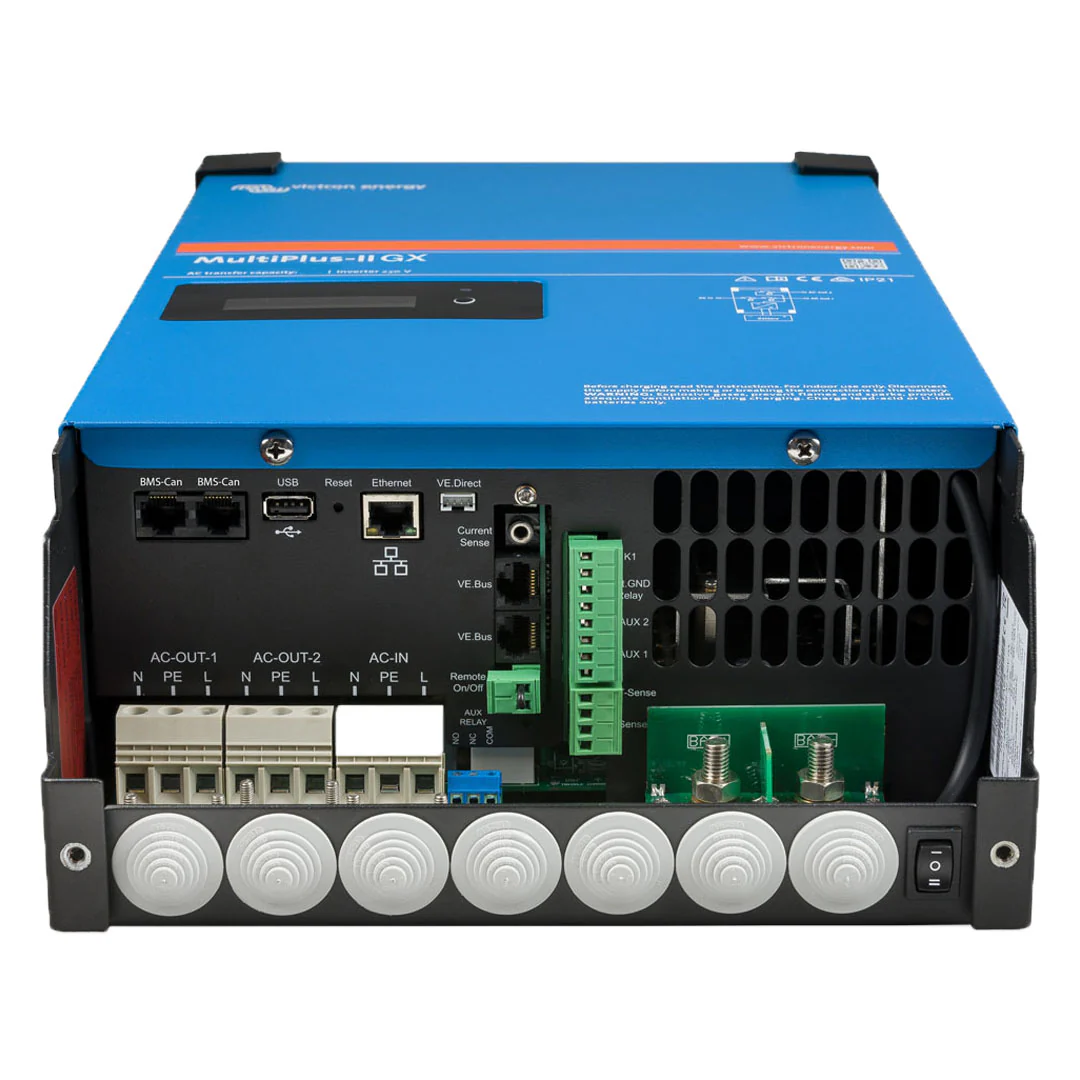

The integrated GX device includes:
BMS-Can interface.
This can be used to connect to a compatible CAN-bus managed battery.
(Note: that this not a VE.Can compatible port.)
USB port, Ethernet port and VE.Direct port.
Applications
The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.
Parallel and three phase operation
Only one GX unit is needed in case of Parallel and three phase operation.
Seamless Backup Power
When the grid fails or shore/generator power disconnects, the MultiPlus ensures that your electronic devices remain uninterrupted thanks to its main output with no-break functionality. It switches in less than 20 milliseconds, so even sensitive equipment like computers remain unaffected. There's a second output, which is ideal for appliances that shouldn't drain the battery, such as water heaters.
PowerControl and PowerAssist
A key feature, PowerControl, ensures optimal usage of available power, regulating the draw from sources like generators to prevent overloads.
Meanwhile, PowerAssist steps in to boost the capacity during peak requirements by utilising battery power, ensuring smooth operations even when shore or generator power isn't sufficient.
Besides its operational excellence, the MultiPlus is adaptable.
The system can be configured using a simple DIP switch for standalone applications, while more complex setups can utilise the VE.Bus software. Monitoring and control can be achieved on-site through various devices, such as the Battery Monitor or Multi Control Panel, while remote monitoring and control are facilitated through GX devices. All data can be stored and accessed via the Victron Remote Management website, providing comprehensive oversight no matter where you are.
Specifications
Click Here to view Data sheet (PDF)
Manual:
Click here to view User Manual
Warranty:
Click Here To View The Victron Energy Limited Warranty Policy DOCUMENT
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
