Victron Lynx Smart BMS NG 500A (M10) – Advanced Battery Management for Lithium NG Systems
The Victron Lynx Smart BMS NG is Victron’s most advanced battery management system, purpose-built for the Victron Lithium NG battery range (LiFePO₄). Available in 500A and 1000A M10 variants, it offers robust protection, intelligent monitoring, and seamless integration into M10 Lynx power distribution systems.
Supporting 12V, 24V, and 48V configurations, this BMS enables scalable setups with up to 50 batteries per system, allowing up to 384kWh of total storage capacity. For critical systems, multiple BMS units can be paralleled for redundancy, ensuring uninterrupted performance even in the event of a battery bank fault.
Victron Lynx Smart BMS NG 500A (M10) Main Features
Advanced LiFePO₄ battery management: Designed specifically for Victron Lithium NG battery systems.
Two model options: Available in 500A and 1000A variants with M10 busbars.

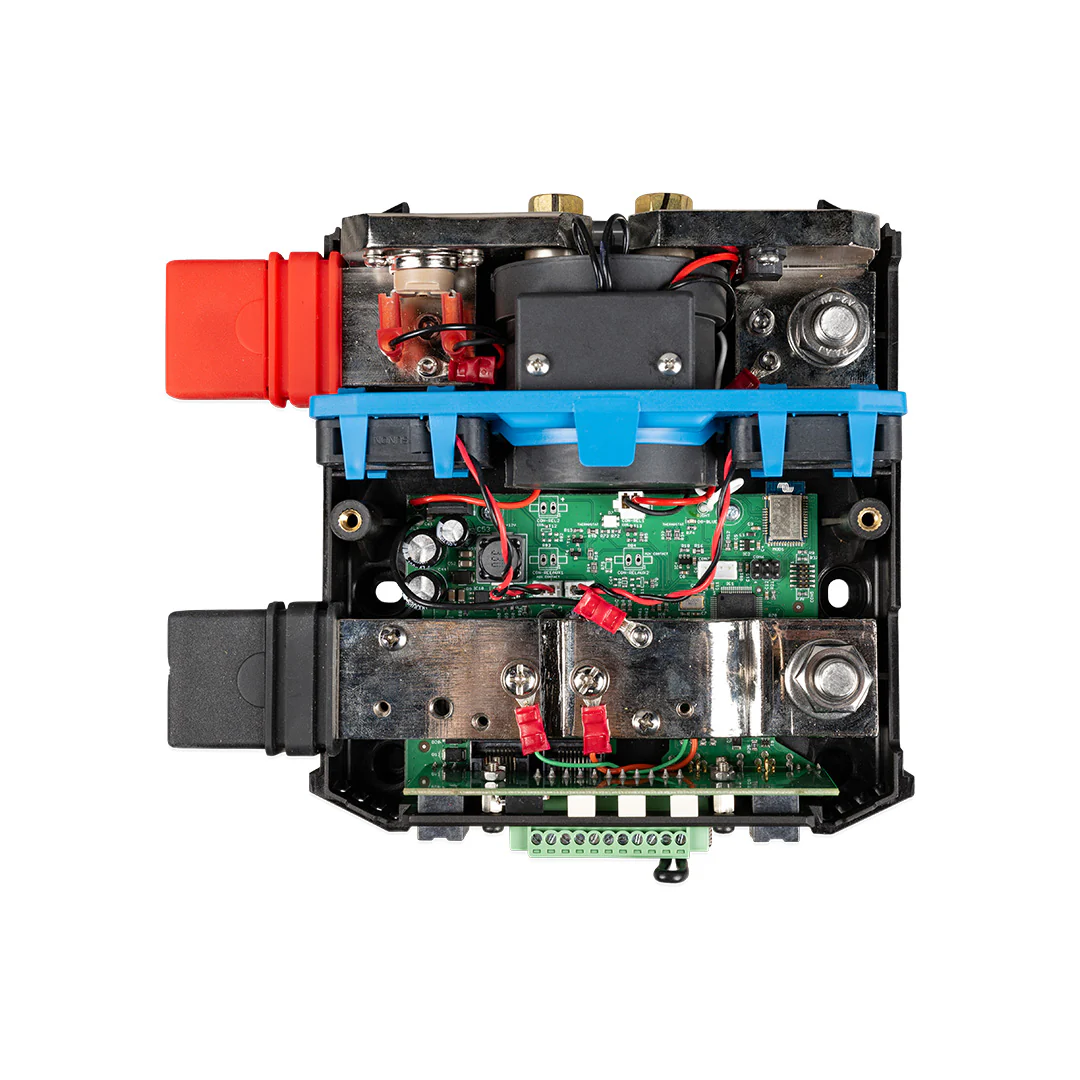

Integrated contactor: Remote-controllable main switch with backup safety disconnect.
Pre-charge circuit: Prevents high inrush currents from capacitive loads.
Bluetooth-enabled: For setup and real-time monitoring via VictronConnect app.
GX integration: Compatible with Cerbo GX, Ekrano GX, and the Victron VRM Portal.
Full system visibility: Voltage, current, SoC, cell-level and historical diagnostics.
DVCC support: Enables closed-loop control with Victron inverters and chargers.
ATC/ATD ports: Control external chargers or loads.
Programmable relay: Supports custom alarms or alternator regulation.
Aux output: Provides 1.1A at system voltage post-shutdown for critical systems.
Aux timeout: Automatic shutdown if no charge voltage is detected after 5 minutes.
Comms options: VE.Can, NMEA 2000 (with optional cable).
Fuse monitoring: Monitors up to 4 Lynx Distributors.
Redundancy: Up to 5 BMS units can be paralleled for critical systems.
Fully compatible: Works with all M10 Lynx power distribution components.
Quick Specs – Victron Lynx Smart BMS NG
- Model Options: 500A (LYN034160310), 1000A (LYN034170310)
- Supported Voltages: 12V / 24V / 48V
- Input Voltage Range: 9–60 VDC
- Max Input Voltage: 75 VDC
- Contactor Rating: 500A or 1000A continuous
- Peak Current: 600A (500A model), 1200A (1000A model) for 5 min
- AUX Output: 1.1A (resettable fuse)
- ATC/ATD Max: 0.5A @ 60VDC
- Alarm Relay: 2A @ 60VDC
- Power Use (ON): 2.6W (500A), 4.2W (1000A)
- Busbar: M10 (33 Nm torque)

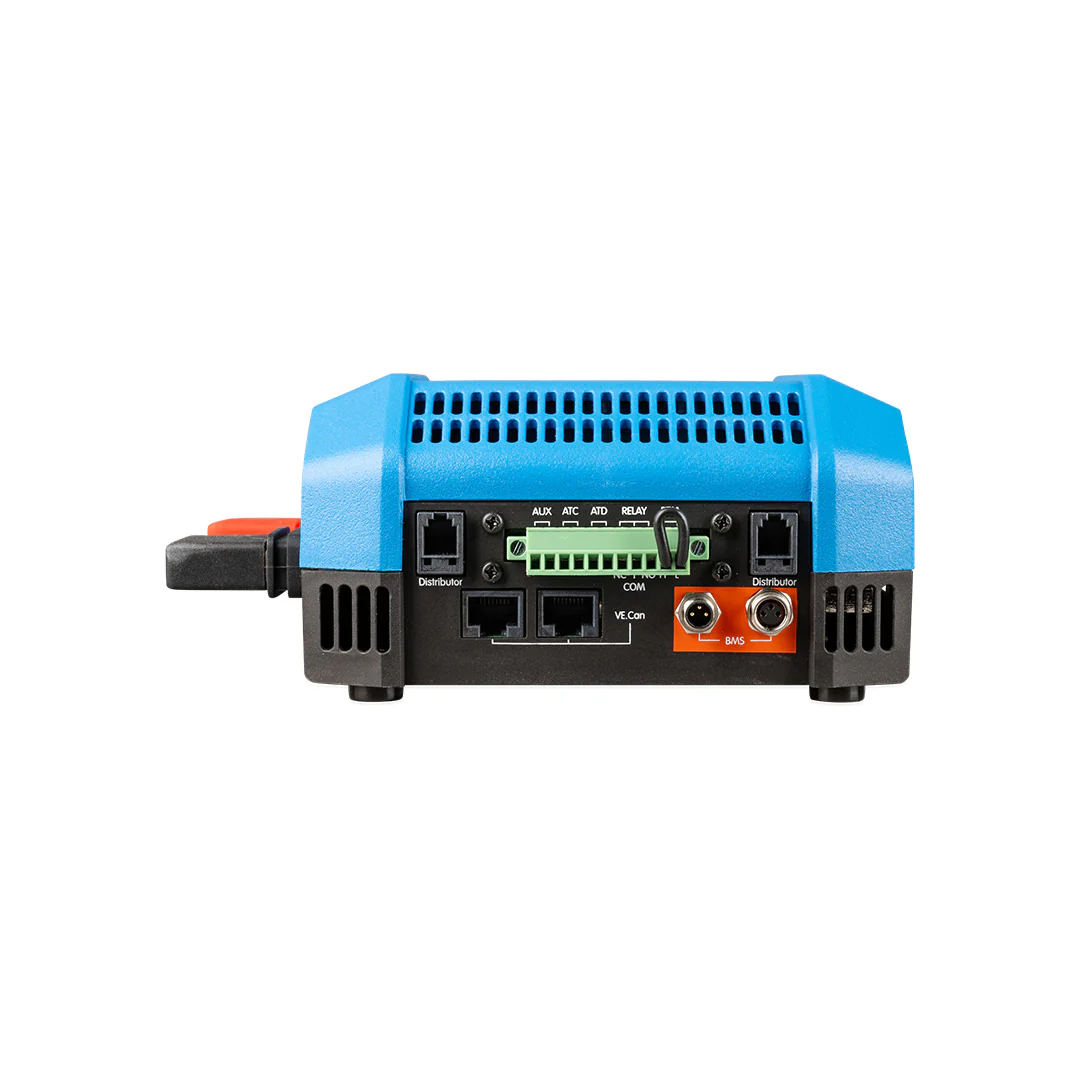

- Comms: VE.Can (RJ45), I/O screw terminal, BTV 3-pin, RJ10 fuse monitor
- Dimensions: 190 x 180 x 80 mm (500A), 230 x 180 x 100 mm (1000A)
- Weight: 1.9 kg (500A), 2.7 kg (1000A)
- Material: ABS enclosure, tinned copper busbars
- Operating Temp: -40°C to +60°C
- Protection: IP22
- Compliance: EN-IEC 63000:2018, EN-IEC 61000-6-3:2007/A1:2011/AC:2012, ISO 9001:2015
Specifications
User Manual
Click Here to View User Manual
Warranty
Click Here to View the Victron Energy Limited Warranty Policy
