Victron Lynx Smart BMS 1000 NG (M10) - LYN034170310

Victron Lynx Smart BMS NG 1000A (M10) – Advanced Battery Management for Lithium NG Systems

The Victron Lynx Smart BMS NG is Victron’s most advanced battery management system, purpose-built for the Victron Lithium NG battery range (LiFePO₄). Available in 500A and 1000A M10 variants, it offers robust protection, intelligent monitoring, and seamless integration into M10 Lynx power distribution systems.

Supporting 12V, 24V, and 48V configurations, this BMS enables scalable setups with up to 50 batteries per system, allowing up to 384kWh of total storage capacity. For critical systems, multiple BMS units can be paralleled for redundancy, ensuring uninterrupted performance even in the event of a battery bank fault.

Victron Lynx Smart BMS NG 500A & 1000A (M10) Main Features

• Advanced battery management system for Victron Lithium NG (LiFePO₄) batteries
• Available in two models: 500A (M10) and 1000A (M10)
• Integrated contactor acts as a remote-controllable system switch and backup safety disconnect
• Built-in pre-charge circuit prevents high inrush currents from inverters and capacitive loads
• Bluetooth-enabled for setup and monitoring via VictronConnect
• Full integration with GX devices (Cerbo GX, Ekrano GX) and Victron VRM Portal
• Real-time system data: voltage, current, SoC, cell-level monitoring, and historical logs
• Supports DVCC closed-loop control with Victron inverters and chargers
• ATC/ATD ports allow external charger and load control
• Programmable relay for alarms or alternator regulation
• Onboard AUX terminal supplies 1.1A at system voltage post-shutdown
• Automatic AUX shutdown after 5 minutes if no charge voltage is detected
• VE.Can and NMEA 2000 compatibility (requires optional cable)
• Fuse status monitoring for up to 4 Lynx Distributors
• Redundant BMS operation with up to 5 Lynx Smart BMS units in parallel
• Compatible with all M10 Lynx distribution products

Quick Specs – Victron Lynx Smart BMS NG

• Model Options:
• • Lynx Smart BMS NG 500A (LYN034160310)
• • Lynx Smart BMS NG 1000A (LYN034170310)

• Electrical Ratings:
• • Supported voltages: 12V, 24V, 48V
• • Input voltage range: 9 – 60 VDC
• • Max input voltage: 75 VDC
• • Contactor rating: 500A / 1000A continuous
• • Peak current: 600A (5 min) / 1200A (5 min)
• • AUX output: 1.1A (resettable fuse)
• • ATC/ATD max: 0.5A @ 60 VDC
• • Alarm relay: 2A @ 60 VDC
• • Power use (ON): 2.6W (500A) / 4.2W (1000A)

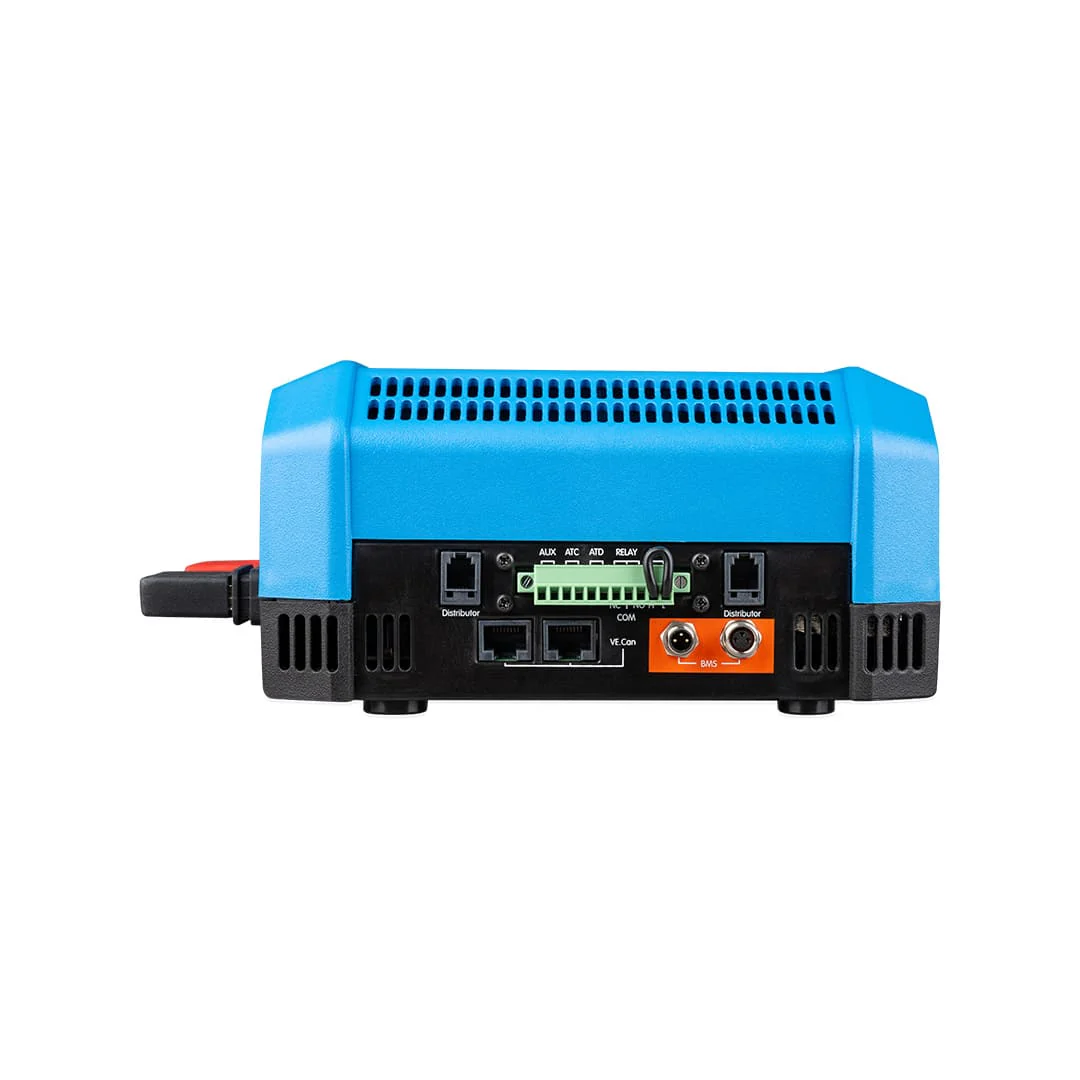

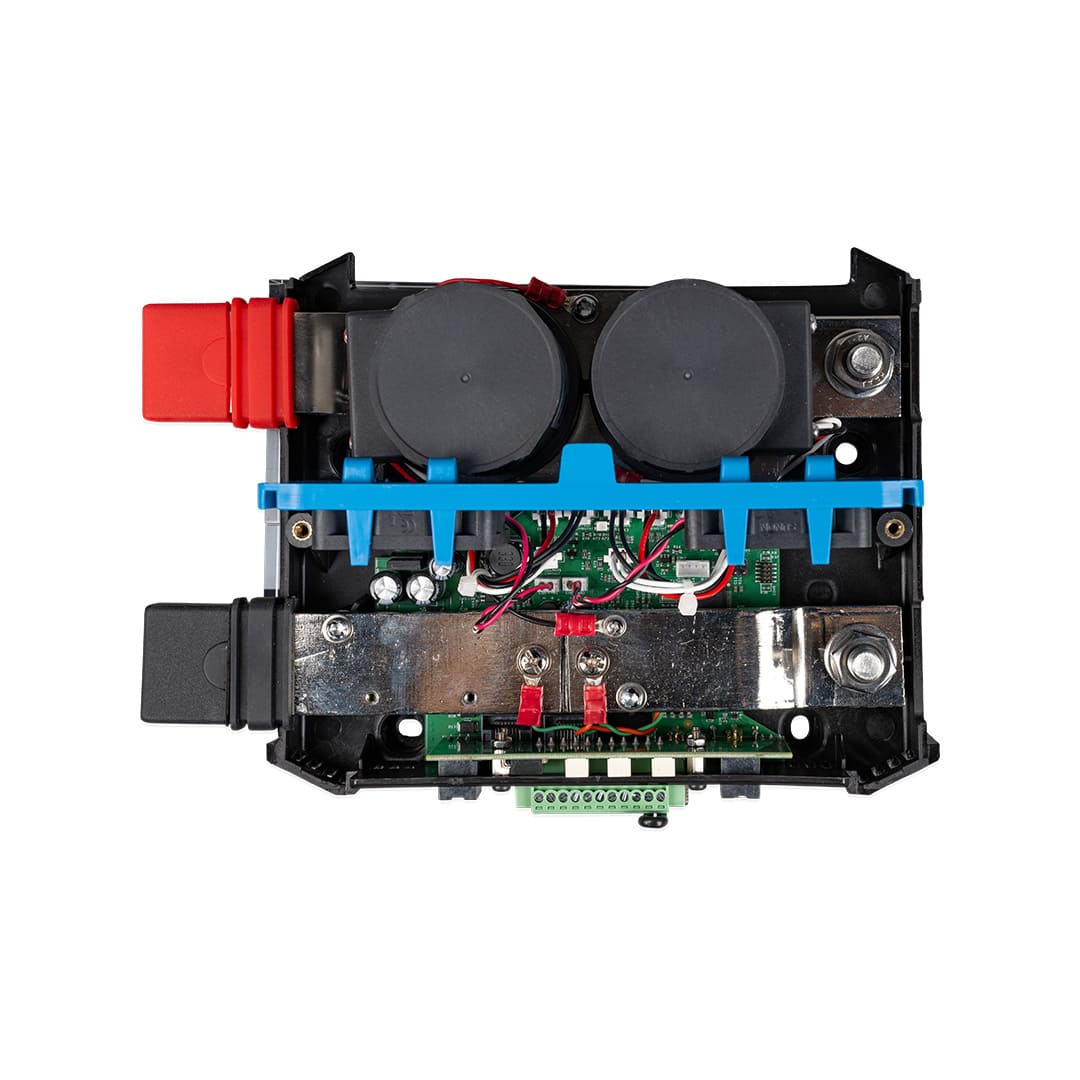

• Connections:
• • Busbar: M10 (33 Nm torque)
• • VE.Can: RJ45
• • I/O: Screw terminal block
• • Battery BTV cables: 3-pin circular connector
• • Lynx fuse monitoring: RJ10 (up to 4 modules)

• Physical:
• • Dimensions (500A): 190 x 180 x 80 mm
• • Dimensions (1000A): 230 x 180 x 100 mm
• • Weight: 1.9 kg (500A), 2.7 kg (1000A)
• • Material: ABS enclosure, tinned copper busbars

• Environmental:
• • Operating temp: -40°C to +60°C
• • Storage temp: -40°C to +60°C
• • Protection: IP22
• • Humidity: Max. 95% (non-condensing)

• Compliance:
• • Safety: EN-IEC 63000:2018
• • EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012
• • Quality: ISO 9001:2015
