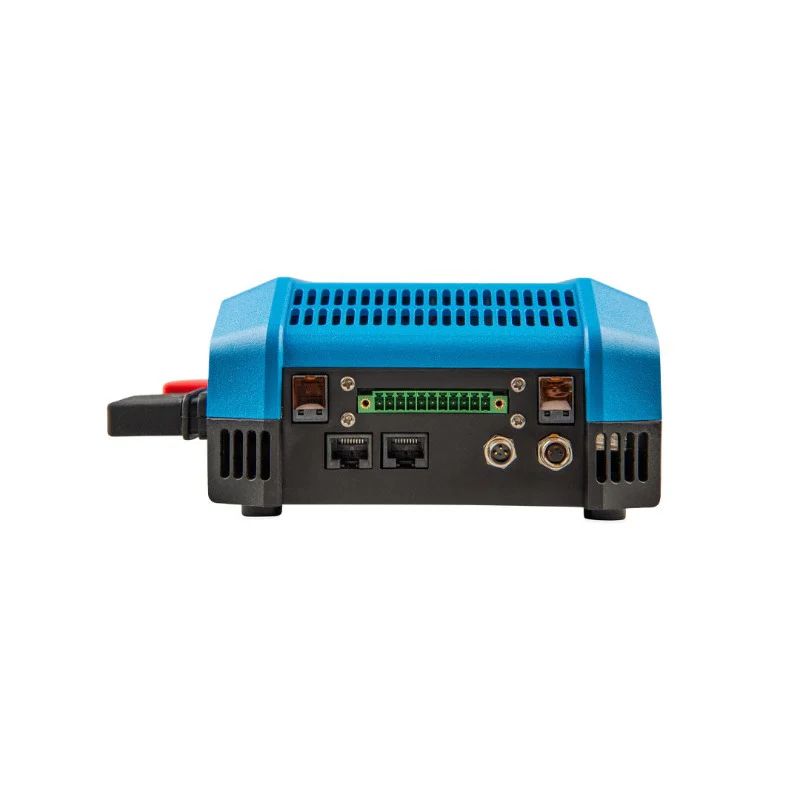

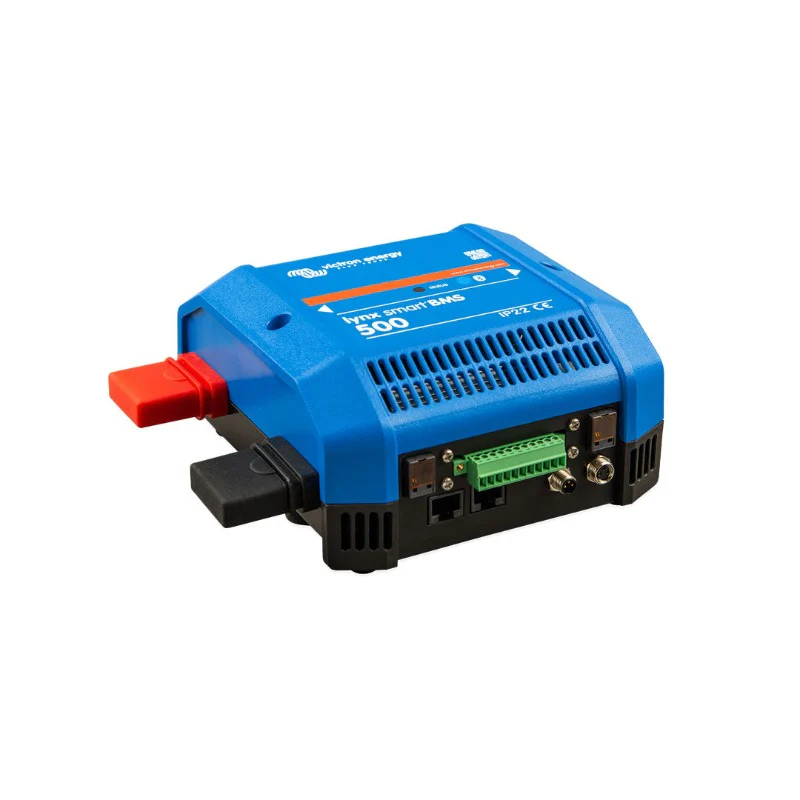

Victron Lynx Smart BMS 500 (M8) - LYN034160200

The Victron Lynx Smart BMS 500 (M8) is a robust and intelligent battery management system designed specifically for Victron Lithium Iron Phosphate (LiFePO4) batteries.

Whether you’re setting up a 12V, 24V, or 48V system, the Lynx Smart BMS offers seamless integration, supporting up to 20 batteries for large-scale energy storage. It ensures your system remains protected and runs efficiently with features like a built-in 500A or 1000A contactor and pre-charge circuit, which prevent power surges when connecting high-demand devices.

Main Features:

Battery Compatibility: Supports Victron Lithium Iron Phosphate (LiFePO4) batteries in 12V, 24V, and 48V configurations, with up to 20 batteries in a system for a maximum energy storage capacity of 102 kWh.
Built-In Contactor: Available in 500A or 1000A versions, the built-in contactor acts as a safety switch to protect the batteries and allows remote control of the system.
Pre-Charge Circuit: Prevents high inrush currents when connecting large loads like inverters, ensuring smooth power transitions.
Advanced Monitoring: Monitor real-time data like the state of charge, voltage, and current through the VictronConnect App or a GX device, ensuring efficient system performance.
System Redundancy: Parallel redundancy feature allows multiple Lynx Smart BMS units to work together, ensuring continued power supply even if one system fails.
DVCC and ATC/ATD Control: Provides seamless control over connected inverters, chargers, and other devices through distributed voltage and current control (DVCC), ensuring stable and efficient power management.
Programmable Relay: Can be used as an alarm relay or to control an alternator, enhancing system flexibility and safety.
Auxiliary Power: Provides auxiliary power for essential devices like GX units after the system has shut down due to low voltage.
VE.Can and NMEA 2000 Connectivity: Easily integrates into marine systems and networks, enabling communication with marine displays and other devices.
Lynx Distributor Integration: Monitors up to four Lynx Distributors, providing alerts if a fuse blows and ensuring smooth power distribution across the system.

Quick Specs:

• Battery Voltage Range: 9 – 60 VDC

• Supported System Voltages: 12V, 24V, or 48V

• Contactor Continuous Current: 500A

• Contactor Peak Current: 600A (for 5 minutes)

• Power Consumption (ON mode): Approximately 2.6W

• Power Consumption (OFF mode): 0.3 mA

• Pre-Charge Resistance: 10 Ω for 12V systems, 20 Ω for 24V and 48V systems

• Aux Output: 1.1A (protected by a resettable fuse)

• Allow-to-Charge/Discharge Ports: 0.5A at 60VDC

• Alarm Relay (SPDT): 2A at 60VDC

• Dimensions: 190 x 180 x 80 mm

• Weight: 1.9 kg

• Protection Class: IP22

• perating Temperature: -40°C to +60°C
