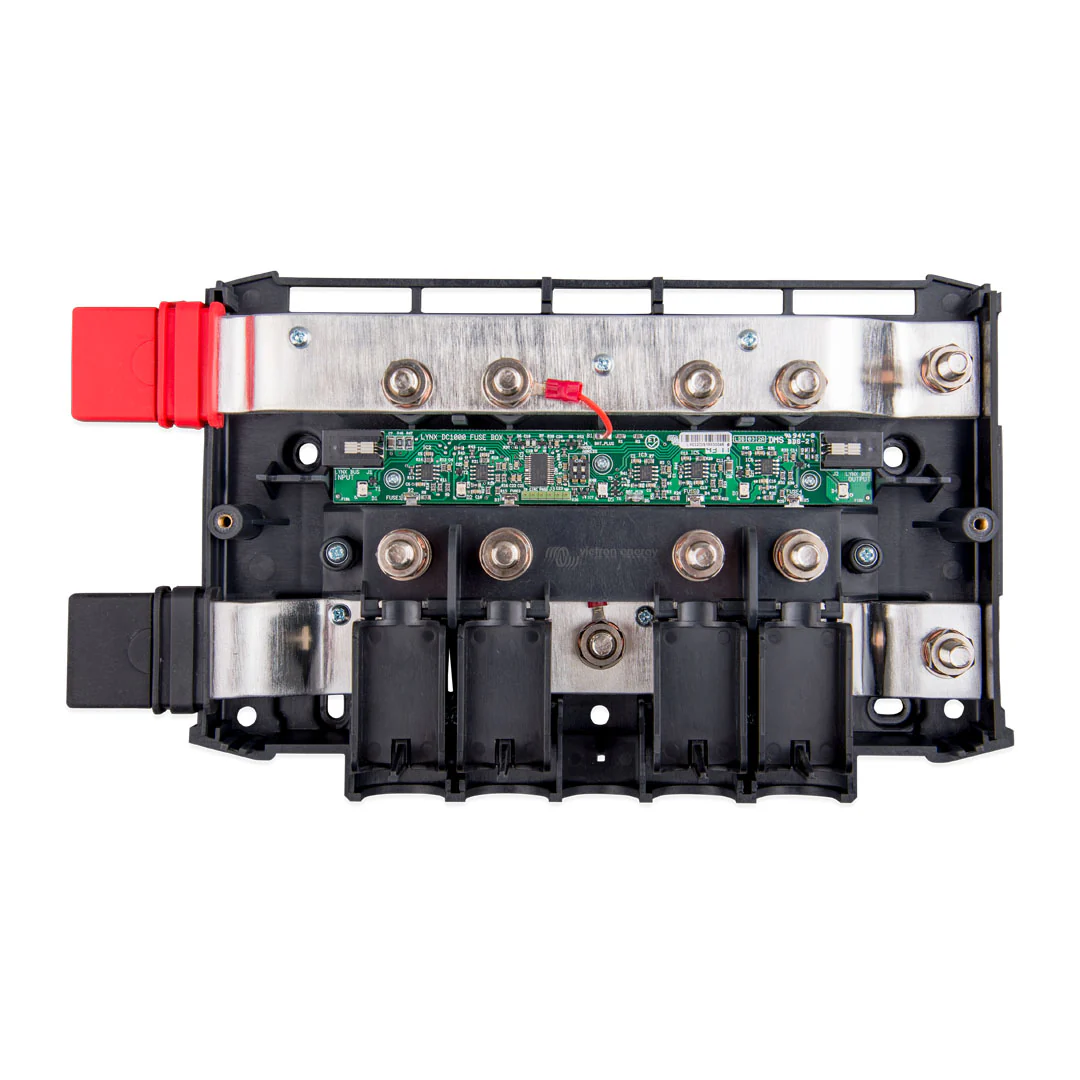

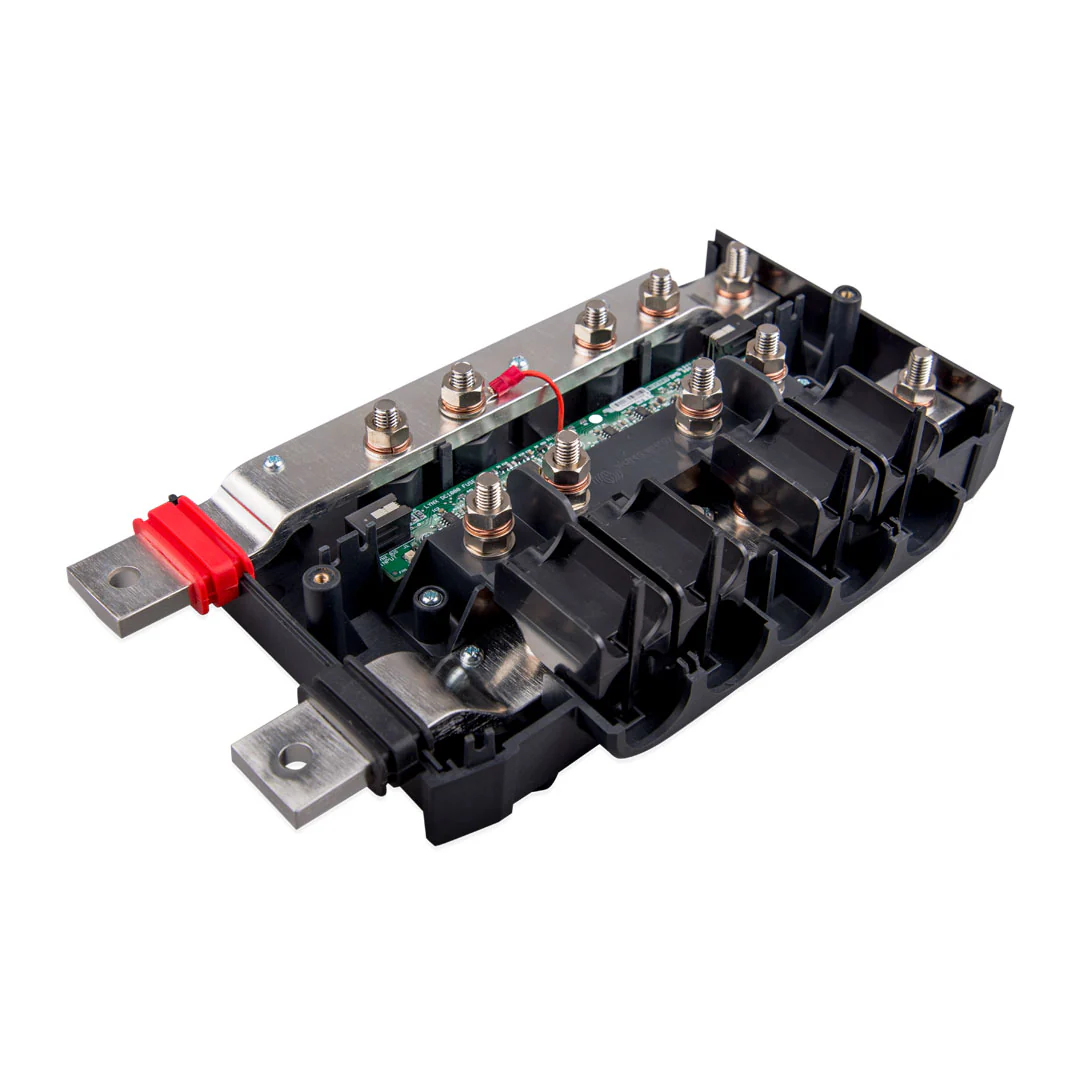

A modular DC busbar, with locations for four AMG/MEGA DC fuses. Part of the modular Lynx distribution system.
It will monitor the status of each fuse (fuses sold separately) and indicate its condition with a LED on the front.
Now available in M8 and M10 models.
Features:
- Voltage range 9 - 60Vdc
- Supported system voltages 12, 24 or 48V
- Current rating 1000A
- Reverse polarity protection
- Busbar and Fuses M8 studs
- Enclosure material ABS
- Enclosure dimensions (hxwxd) 290 x 170 x 80mm
- Unit weight 2.2 kg
- Busbar material Tinned copper
- Busbar dimensions (hxw) 8 x 30mm
- Operating temperature range -40°C to +60°
- Storage temperature range -40°C to +60°
-Protection class IP22
Specifications
