The Story

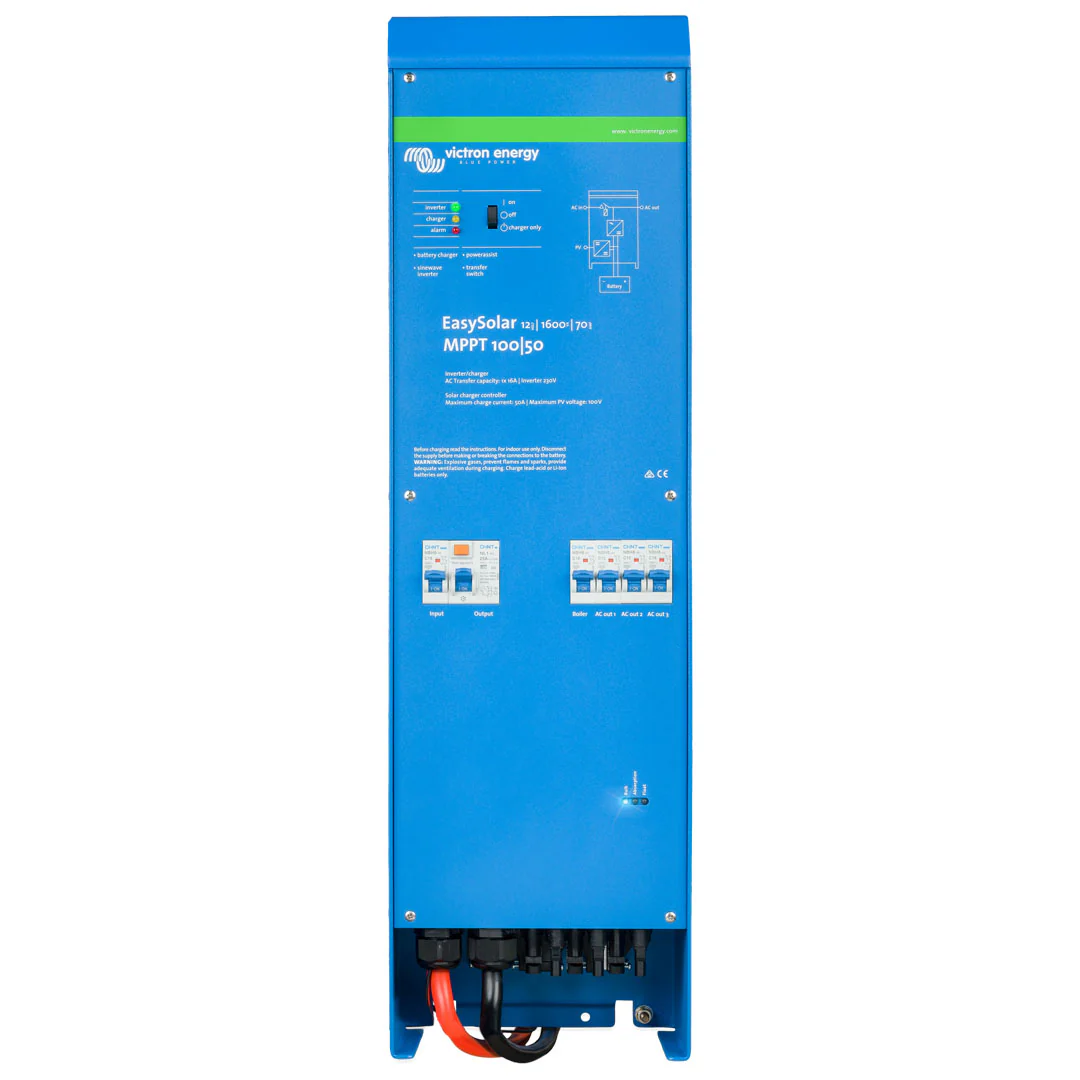

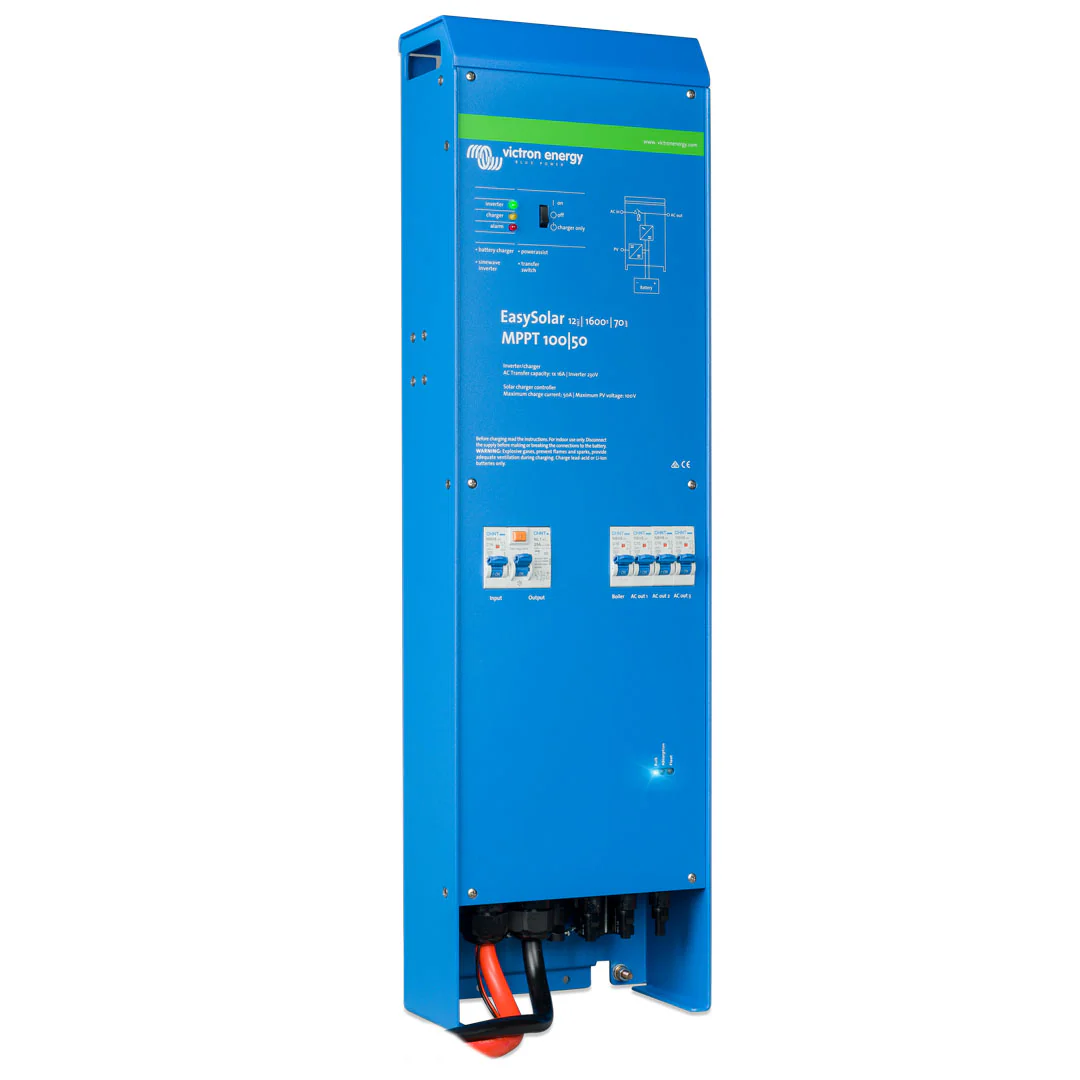

The EasySolar 12/1600/70-16 230V MPPT 100/50 combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure.
The EasySolar is an all-in-one solar power solution. It incorporates the following hardware in a compact vertical cabinet:
- Multiplus Compact 12/1600/70 inverter charger
- Bluesolar MPPT 100/50 solar controller
- AC Circuit Breakers and RCD
- PV Array Combiner (Three sets of MC4 PV connectors)
With a minimum of wiring the device is easy to install and combines all the features of the Multiplus, Blue Solar and is completed with the AC distribution functionality, which consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.

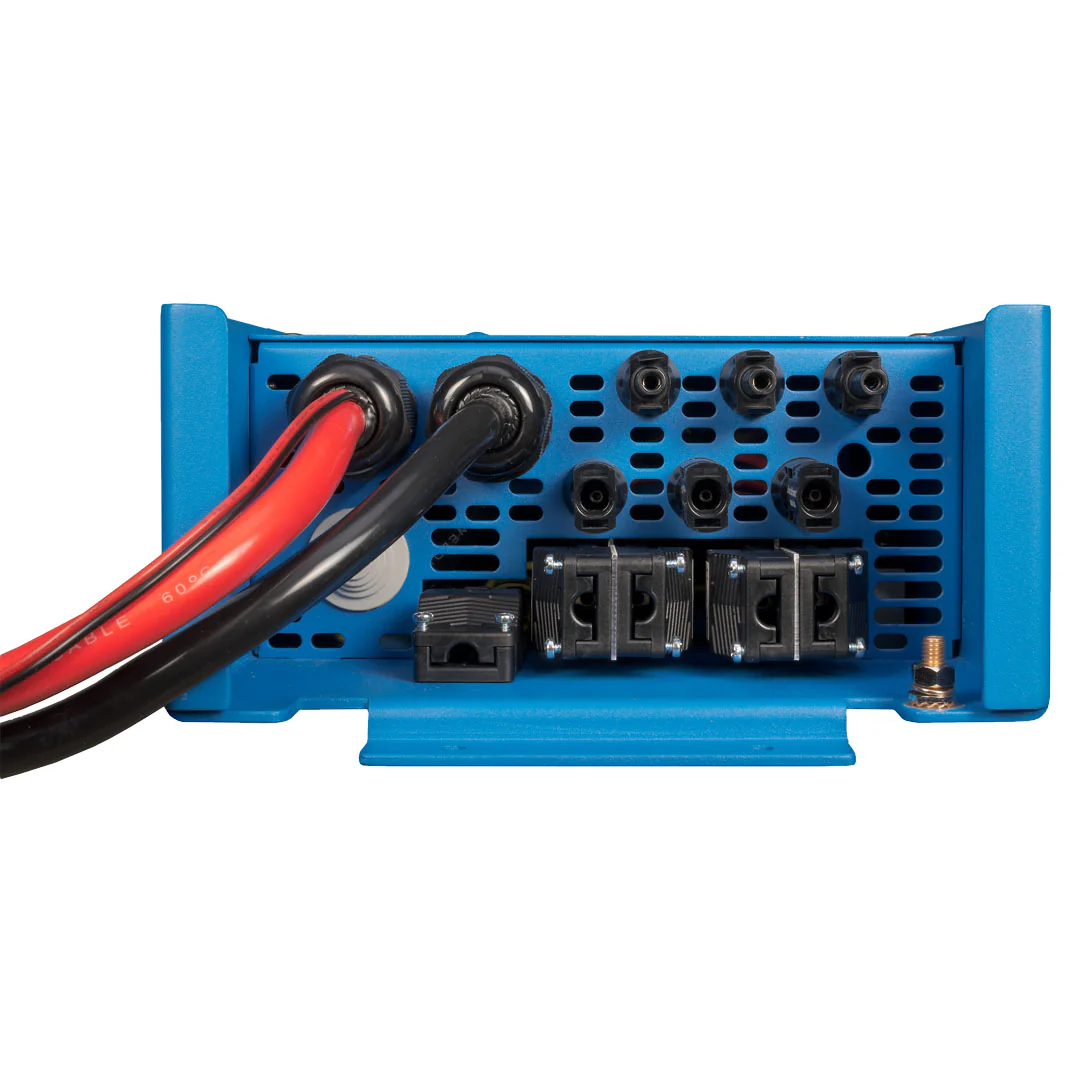

Up to three strings of PV panels can be connected with three sets of MC4 (PV-ST01) PV connectors.
Specifications
Warranty
Click Here To View The Victron Energy Limited Warranty Policy DOCUMENT
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The EasySolar 12/1600/70-16 230V MPPT 100/50 combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure.
The EasySolar is an all-in-one solar power solution. It incorporates the following hardware in a compact vertical cabinet:
- Multiplus Compact 12/1600/70 inverter charger
- Bluesolar MPPT 100/50 solar controller
- AC Circuit Breakers and RCD
- PV Array Combiner (Three sets of MC4 PV connectors)
With a minimum of wiring the device is easy to install and combines all the features of the Multiplus, Blue Solar and is completed with the AC distribution functionality, which consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
Up to three strings of PV panels can be connected with three sets of MC4 (PV-ST01) PV connectors.
