$38.72The Story

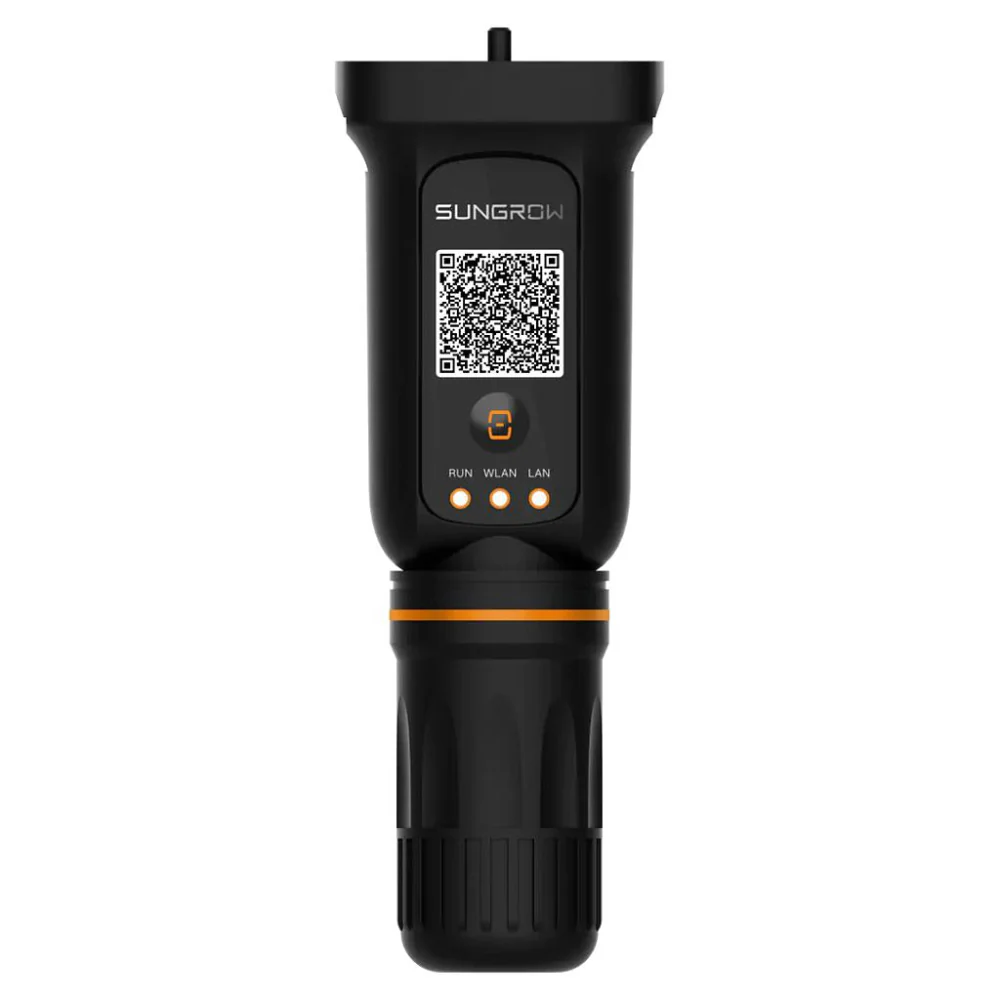

The Sungrow WiNet-S is a smart and reliable WiFi and Ethernet communication module designed to simplify inverter monitoring and system connectivity.
It offers flexible plant networking options, allowing seamless integration with Sungrow’s iSolarCloud platform for real-time system data and performance tracking.
The WiNet-S supports both WLAN and LAN connections with automatic configuration, enabling a plug-and-play setup that saves time during installation. With IP66 protection and a wide operating temperature range, it ensures stable operation even in challenging outdoor conditions.
Main Features
Flexible Connectivity: Choose between WiFi or Ethernet for easy system integration.
Plug-and-Play Setup: Simple installation with automatic DHCP configuration for quick operation.
Smart Monitoring: Compatible with iSolarCloud for remote access, parameter adjustments, and firmware updates.
High Reliability: IP66-rated for dust and water protection, ideal for harsh environments.
Secure Data Transmission: Features password protection and encrypted data for system safety.
Quick Specs
-
Communication Mode: WLAN (802.11 b/g/n) or Ethernet (10/100 Mbps)
-
Automatic network configuration with DHCP, transmission without configuration
-
Plug and play, quick installation
-
Support of local and remote parameter setting and firmware updates
-
Password and encrypted transmission for data protection
-
Power Supply: 5 VDC, 2.1 A (≤5 W consumption)
-
Operating Temperature: -30 °C to 60 °C
-
Protection Rating: IP66
-
Dimensions: 48 × 132 × 36 mm
- Max Elevation: ≤4000 m
About The Brand
Sungrow, a global leader in renewable energy technology, has pioneered sustainable power solutions for over 27 years. As of June 2024, Sungrow has installed 605 GW of power electronic converters worldwide. Sungrow Australia's office has been established in Sydney since 2012. With this rapid development, Sungrow Australia has built one of the largest solar inverter manufacturer teams in Australia, covering sales, technical support, projects and after-sales service. The Sales team and technical support team are based in North Sydney, and the Sungrow warehouse is located in Pendle Hills. With over 6 years of local support experience, we have built national service networks, and our service contractors are ready to help installers or customers with warranty enquiries
Specifications
Sungrow WiNet-S WiFi & Ethernet LAN Communication Module DATASHEET
Manual
Sungrow WiNet-S WiFi & Ethernet LAN Communication Module MANUAL
Warranty
Description
The Sungrow WiNet-S is a smart and reliable WiFi and Ethernet communication module designed to simplify inverter monitoring and system connectivity.
It offers flexible plant networking options, allowing seamless integration with Sungrow’s iSolarCloud platform for real-time system data and performance tracking.
The WiNet-S supports both WLAN and LAN connections with automatic configuration, enabling a plug-and-play setup that saves time during installation. With IP66 protection and a wide operating temperature range, it ensures stable operation even in challenging outdoor conditions.
Main Features
Flexible Connectivity: Choose between WiFi or Ethernet for easy system integration.
Plug-and-Play Setup: Simple installation with automatic DHCP configuration for quick operation.
Smart Monitoring: Compatible with iSolarCloud for remote access, parameter adjustments, and firmware updates.
High Reliability: IP66-rated for dust and water protection, ideal for harsh environments.
Secure Data Transmission: Features password protection and encrypted data for system safety.
Quick Specs
-
Communication Mode: WLAN (802.11 b/g/n) or Ethernet (10/100 Mbps)
-
Automatic network configuration with DHCP, transmission without configuration
-
Plug and play, quick installation
-
Support of local and remote parameter setting and firmware updates
-
Password and encrypted transmission for data protection
-
Power Supply: 5 VDC, 2.1 A (≤5 W consumption)
-
Operating Temperature: -30 °C to 60 °C
-
Protection Rating: IP66
-
Dimensions: 48 × 132 × 36 mm
- Max Elevation: ≤4000 m
About The Brand
Sungrow, a global leader in renewable energy technology, has pioneered sustainable power solutions for over 27 years. As of June 2024, Sungrow has installed 605 GW of power electronic converters worldwide. Sungrow Australia's office has been established in Sydney since 2012. With this rapid development, Sungrow Australia has built one of the largest solar inverter manufacturer teams in Australia, covering sales, technical support, projects and after-sales service. The Sales team and technical support team are based in North Sydney, and the Sungrow warehouse is located in Pendle Hills. With over 6 years of local support experience, we have built national service networks, and our service contractors are ready to help installers or customers with warranty enquiries
Specifications
Sungrow WiNet-S WiFi & Ethernet LAN Communication Module DATASHEET
Manual
Sungrow WiNet-S WiFi & Ethernet LAN Communication Module MANUAL
