The Story

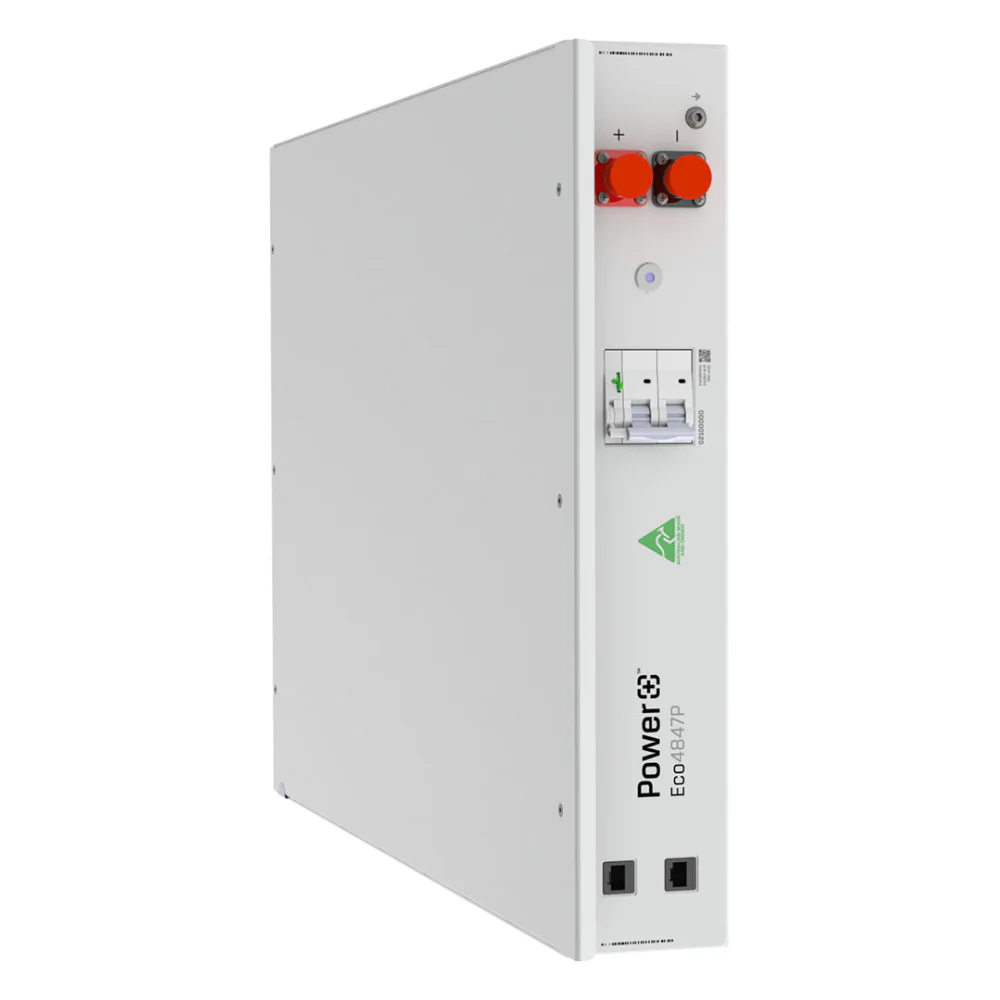

The PowerPlus Energy ECO 51.2V 4.7kWh LFP Battery is a versatile CEC approved energy storage module.
With a nominal capacity of 4.7kWh and full depth-of-discharge capability, it offers stable, long-lasting power in a compact format. This battery supports a continuous output of up to 3.22kW, making it suitable for a wide range of loads and energy needs.
Built with Lithium Ferro Phosphate (LFP) cells, the ECO battery prioritises safety and efficiency, operating effectively within varied temperature and humidity conditions. It features integrated protection systems at both module and cell levels, ensuring reliability in challenging environments. Flexible mounting options and parallel scalability further enhance its appeal for modular setups.
Equipped with a GEN2 BMS and a 70% End of LiFe Warranty, it offers unparalleled performance and reliability in a compact design. PowerPlus Eco4847P is ready to power endless possibilities.
Main Features
Usable Capacity: Delivers 4.7kWh (92Ah) of reliable storage with 100% depth-of-discharge capability.
Safe Chemistry: Utilises LiFePO4 for stable performance and reduced fire risk.
Flexible Installation: Fits industry-standard 19” racks and can be mounted horizontally or vertically.
No Active Cooling Required: Cooled through natural convection, suitable for quiet and remote locations.
Expandable: Unlimited parallel connections allow system scaling as needed.
Integrated Protections: Over/under-voltage and temperature safeguards via onboard BMS.
CEC approved: Eligible for the Cheaper Home Battery Rebate Scheme.
Quick Specs
-
Nominal Voltage: 51.2V DC
-
Max Discharge Current: 63A (3.22kW)
-
Charge Current: 46A (2.35kW)
-
Dimensions: 635mm (D) x 443mm (W) x 88mm (H)
-
Weight: 43kg
- Certification: IEC 62619:2022 (Cells and pack level)
-
IP Rating: IP40
-
Operating Temp: -6°C to 56°C (Discharge)
-
Efficiency: >96%
-
Warranty: 10 Years (T&Cs apply)
About The Brand
PowerPlus Energy is an Australian company based in Melbourne, founded in 2017 by Bradley Paton. They specialise in designing and manufacturing lithium ferro-phosphate (LFP) battery systems and modular energy storage solutions. With a local factory producing over 210 MWh annually, they offer products like ECO and LiFe Premium battery modules, as well as integrated systems such as Escape and Whispr. PowerPlus prioritises safety, simplicity, and scalability, featuring cobalt-free LFP cells, in-built BMS, passive cooling, and hot-swappable modules. They also offer CEC-listed, rebate-eligible products and promote transparency through factory tours.
Specifications
PowerPlus Energy ECO 51.2VDC 4.7kWh LFP Battery DATASHEET
Certifications
PowerPlus Energy ECO4847P Compliance statement
Manual
PowerPlus Energy ECO 51.2VDC 4.7kWh LFP Battery MANUAL
Warranty
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The PowerPlus Energy ECO 51.2V 4.7kWh LFP Battery is a versatile CEC approved energy storage module.
With a nominal capacity of 4.7kWh and full depth-of-discharge capability, it offers stable, long-lasting power in a compact format. This battery supports a continuous output of up to 3.22kW, making it suitable for a wide range of loads and energy needs.
Built with Lithium Ferro Phosphate (LFP) cells, the ECO battery prioritises safety and efficiency, operating effectively within varied temperature and humidity conditions. It features integrated protection systems at both module and cell levels, ensuring reliability in challenging environments. Flexible mounting options and parallel scalability further enhance its appeal for modular setups.
Equipped with a GEN2 BMS and a 70% End of LiFe Warranty, it offers unparalleled performance and reliability in a compact design. PowerPlus Eco4847P is ready to power endless possibilities.
Main Features
Usable Capacity: Delivers 4.7kWh (92Ah) of reliable storage with 100% depth-of-discharge capability.
Safe Chemistry: Utilises LiFePO4 for stable performance and reduced fire risk.
Flexible Installation: Fits industry-standard 19” racks and can be mounted horizontally or vertically.
No Active Cooling Required: Cooled through natural convection, suitable for quiet and remote locations.
Expandable: Unlimited parallel connections allow system scaling as needed.
Integrated Protections: Over/under-voltage and temperature safeguards via onboard BMS.
CEC approved: Eligible for the Cheaper Home Battery Rebate Scheme.
Quick Specs
-
Nominal Voltage: 51.2V DC
-
Max Discharge Current: 63A (3.22kW)
-
Charge Current: 46A (2.35kW)
-
Dimensions: 635mm (D) x 443mm (W) x 88mm (H)
-
Weight: 43kg
- Certification: IEC 62619:2022 (Cells and pack level)
-
IP Rating: IP40
-
Operating Temp: -6°C to 56°C (Discharge)
-
Efficiency: >96%
-
Warranty: 10 Years (T&Cs apply)
About The Brand
PowerPlus Energy is an Australian company based in Melbourne, founded in 2017 by Bradley Paton. They specialise in designing and manufacturing lithium ferro-phosphate (LFP) battery systems and modular energy storage solutions. With a local factory producing over 210 MWh annually, they offer products like ECO and LiFe Premium battery modules, as well as integrated systems such as Escape and Whispr. PowerPlus prioritises safety, simplicity, and scalability, featuring cobalt-free LFP cells, in-built BMS, passive cooling, and hot-swappable modules. They also offer CEC-listed, rebate-eligible products and promote transparency through factory tours.
Specifications
PowerPlus Energy ECO 51.2VDC 4.7kWh LFP Battery DATASHEET
Certifications
PowerPlus Energy ECO4847P Compliance statement
Manual
PowerPlus Energy ECO 51.2VDC 4.7kWh LFP Battery MANUAL
