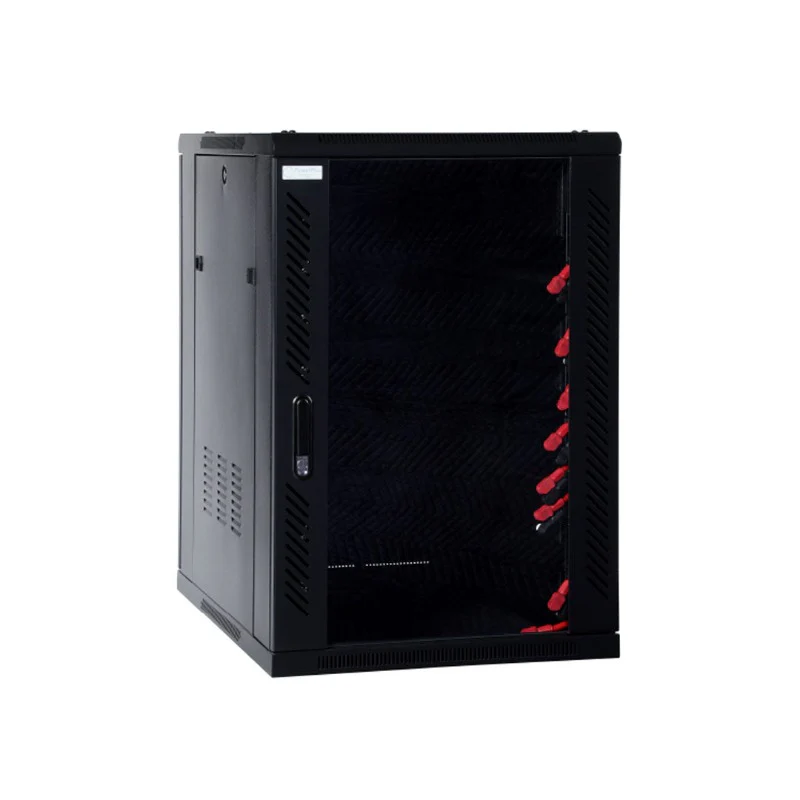

PowerPlus Energy 8x Battery Cabinet IP21 - PIR8C

PowerPlus Energy Rack Series Cabinet - PIR8C

Cabinet only - Batteries Not Included.

These Powerplus Rack Series cabinets are an elegant IP21 indoor battery cabinet solution that are pre-wired for an easy plug and play installation of our LiFe or ECO P Series batteries.

Complete with all interconnecting battery cables and a 1000A DC busbar, installation has never been so simple.

Main Features

Suits Battery Expansion: As needs or budget allow, it is easy to add another battery to the system. Plugging a new battery in and altering a few settings on your inverter is all that is needed.

Range of Cabinet Sizes: The Rack Series range in capacity from 8 all the way up to 20 batteries, and with the ability to parallel multiple cabinets, there really is a solution for all applications.

Prewired: To allow minimal fuss all our cabinets come pre-wired ready to go, the easiest part of the job will be installing the batteries.

Quick Specs

• Australian Made
• Pre-wired - Suitable for both LiFe Premium and Eco Series Batteries
• Durable, Robust, Powder Coated Finish
• Future Proof Friendly
• Multiple Cabinets can be Linked in Parallel
• Indoor Friendly -IP21 Rating, Floor Mounted
• 95kg - 4 Caster Rollers and 4 Height Adjustable Locking Feet
• Store up to 32kWh of energy - 8 battery slots

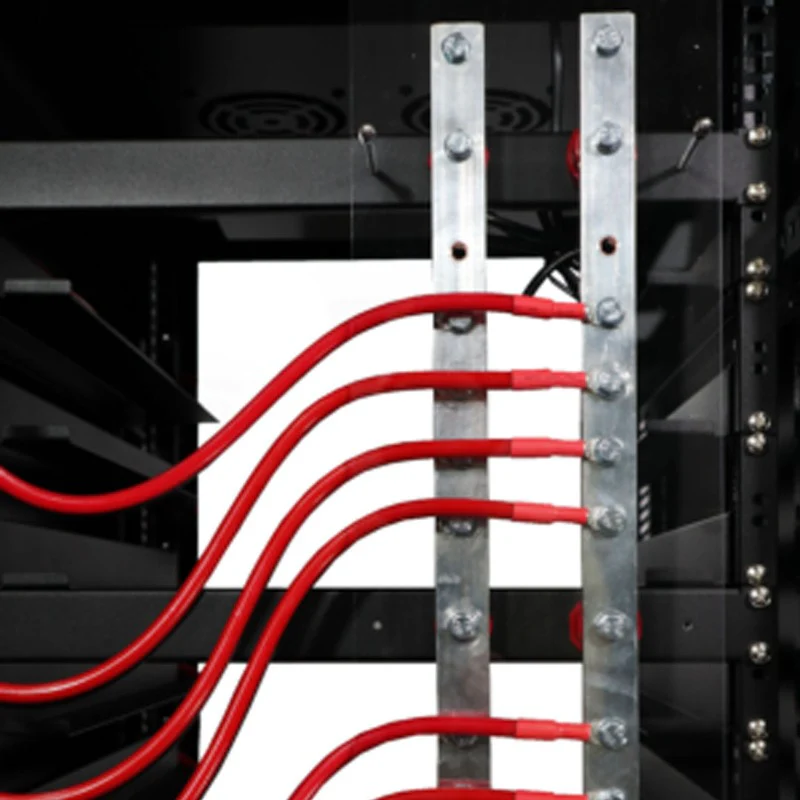

• Busbar with M8 Stud, 1000A Continuous Rated

Specifications

Click Here to view Datasheet

Installation Instructions

Click Here to view Installation Instructions
