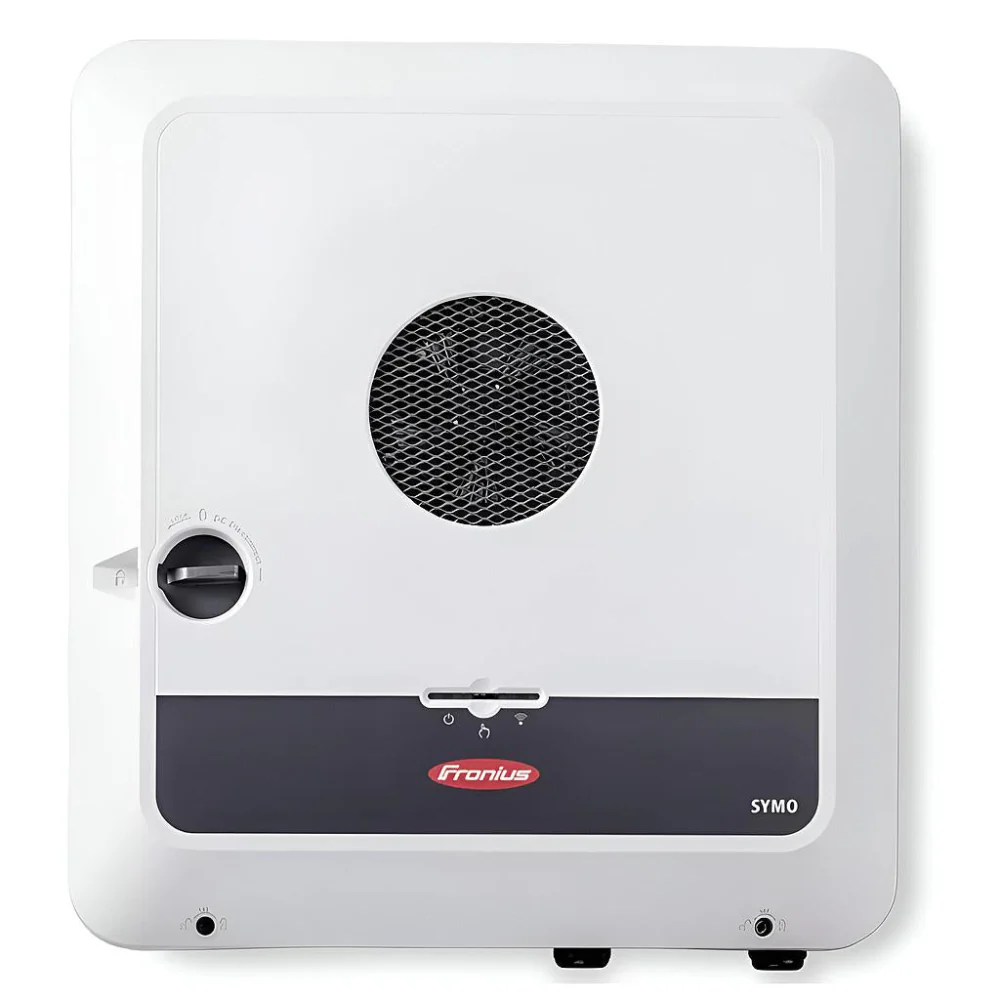

Fronius Symo Gen24 10.0 SC 10kW Three Phase Inverter 2 MPPT - CEC Approved

The Fronius Symo GEN24 10.0 SC is a 10kW three-phase hybrid inverter designed for flexibility, backup power, and high performance. It supports PV-only and  with a built-in PV Point for basic backup.

Fronius SC (Superior current) was developed to handle higher current, modern high-output solar panels, providing greater flexibility for installers, allowing for parallel string installations and better performance with shaded roofs.

The GEN24 is future-ready, allowing battery upgrades later via software or select the battery ready "plus" model here.
Smart connectivity, remote monitoring and wide compatibility with energy management tools make it a strong choice for residential solar.

With two MPPTs, IP66 protection and active cooling, it ensures reliable performance in diverse conditions.

Main Features

Core of Home Solar Systems – Designed to be the central component of residential PV setups.
Fronius UP.storage – Enable hybrid functionality with a simple software upgrade to GEN24 Plus.
Quick Setup – Fast, straightforward installation and configuration.
Sustainably Designed – Built with a focus on responsible production and long-term use.
European Made – Manufactured to high standards in Europe.
10kW Three-Phase Output – Ideal for larger residential or small commercial solar systems.
Dual MPPT Inputs – Supports flexible panel layouts and maximises energy harvest.
Backup Power Options – Built-in PV Point for essential loads; optional Full Backup for entire home.
Battery-Ready – Compatible with BYD Battery-Box HVS/HVM and LG FLEX; retrofit-ready via software upgrade.
High Efficiency – Up to 98.3% max efficiency with >99.9% MPPT tracking accuracy.
IP66 Rated – Suitable for indoor and outdoor installations in harsh weather conditions.
Smart Connectivity – Integrated Wi-Fi, Ethernet, and Fronius Solar.web for remote monitoring and energy management.
Active Cooling – Maintains performance even in high temperatures, extending inverter lifespan.
Low Noise Operation – Quiet running with noise emissions under 47 dB(A).
Sustainable Design – Lifecycle-assessed and built for long-term energy independence.

Quick Specs

• Output Power: 10 kW (AC rated)

• Phases: 3-phase

• MPPTs: 2

• Max. Efficiency: 98.3%

• Backup Power: PV Point (standard), Full Backup (optional)

• Battery Compatibility: BYD Battery-Box HVS/HVM, LG FLEX

• Input Voltage Range: 80 – 1,000 V DC

• PV Input Max Current (Isc): Up to 20A per Input
• IP Rating: IP66 (indoor/outdoor use)

• Cooling: Active cooling

• Dimensions (H×W×D): 595 × 529 × 180 mm

• Weight: 22.8 kg

• Connectivity: Wi-Fi, LAN, RS485, Modbus, Solar.web

• Operating Temperature: -25°C to +60°C

• Noise Level: < 47 dB(A)

About The Brand

The Fronius Business Unit (BU) Solar Energy, which was founded in 1992, develops innovative solutions that generate, store, distribute and consume solar energy cost-efficiently and intelligently, all under the motto “energise your life”. Fronius Solar Energy makes it possible to use the sun 24 hours a day, paving the way for a future worth living in, in which renewable energies cover 100 percent of the world’s energy needs. Our solutions are sustainably developed and produced entirely in Europe, mainly in Austria. Fronius Solar Energy has 28 branches around the world and can point to a total output of more than 35 gigawatts of installed inverters to date. Sales are made via a global competence network of installation, service, and sales partners.

Specifications

Fronius Symo Gen24 10.0 SC 10kW Three Phase Inverter 2 MPPT DATASHEET

Warranty

Fronius Symo Gen24 10.0 SC 10kW Three Phase Inverter 2 MPPT WARRANTY
