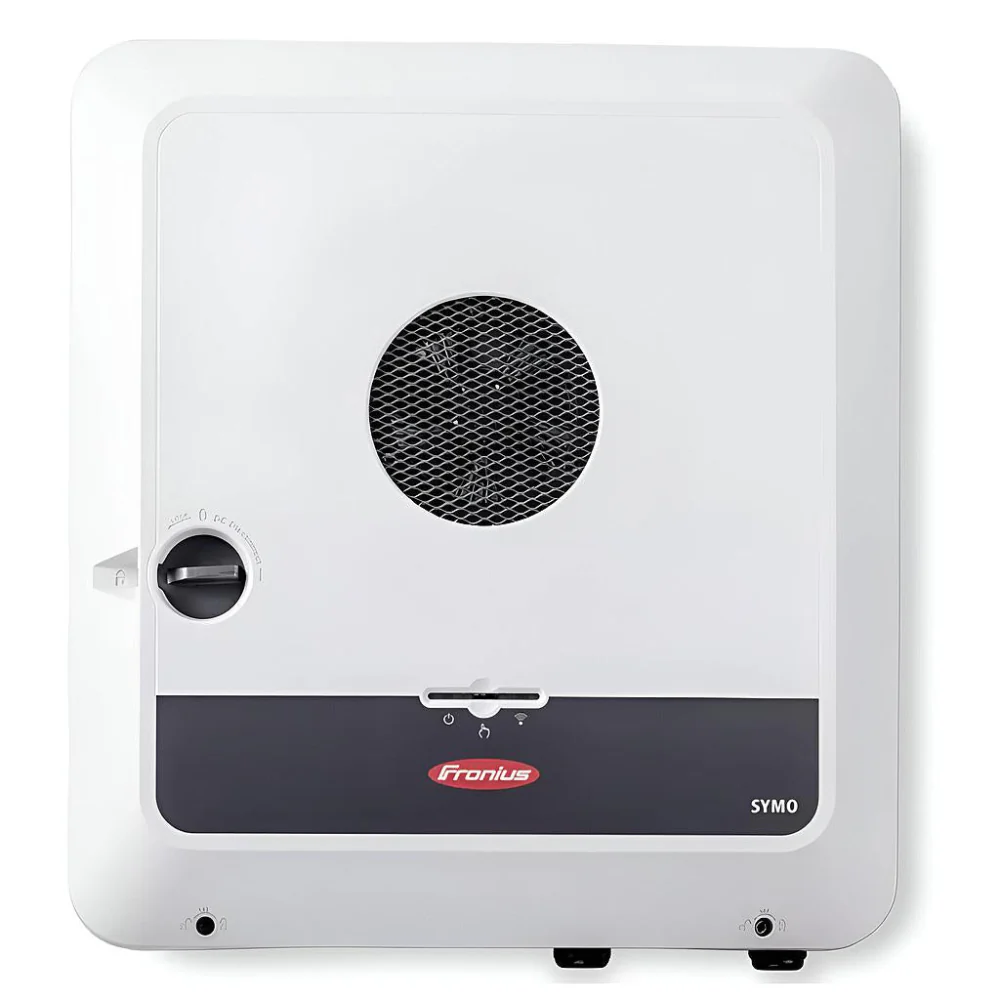

Fronius Symo Gen24 10.0 Plus SC 10kW Three Phase Inverter 2 MPPT - CEC Approved

The Fronius Symo GEN24 10.0 Plus SC is a 10kW three-phase hybrid inverter designed for flexibility, battery backup power and high performance.

Fronius SC (Superior current) was developed to handle higher current, modern high-output solar panels, providing greater flexibility for installers, allowing for parallel string installations and better performance with shaded roofs.

This Symo Gen 24 Plus supports PV-only and battery-connected systems, with additional built-in PV Point for basic backup directly from solar. Smart connectivity, remote monitoring and wide compatibility with energy management tools make it a strong choice for residential solar. With two MPPTs, IP66 protection and active cooling, it ensures reliable performance in diverse conditions.

Main Features

Core of Home Solar Systems – Designed to be the central component of residential PV setups.
Battery Ready – Enables hybrid functionality out of the box with compatible batteries, such as BYD Battery Box HVM/HVS and Fronius Reserva.
Quick Setup – Fast, straightforward installation and configuration.
Sustainably Designed – Built with a focus on responsible production and long-term use.
European Made – Manufactured to high standards in Europe.
10kW Three-Phase Output – Ideal for larger residential or small commercial solar systems.
Dual MPPT Inputs – Supports flexible panel layouts and maximises energy harvest.
Backup Power Options – Built-in PV Point for essential loads; Partial or Full Backup for entire home (additional hardware required).
High Efficiency – Up to 98.3% max efficiency with >99.9% MPPT tracking accuracy.
IP66 Rated – Suitable for indoor and outdoor installations in harsh weather conditions.
Smart Connectivity – Integrated Wi-Fi, Ethernet, and Fronius Solar.web for remote monitoring and energy management.
Active Cooling – Maintains performance even in high temperatures, extending inverter lifespan.
Low Noise Operation – Quiet running with noise emissions under 47 dB(A).
Sustainable Design – Lifecycle-assessed and built for long-term energy independence.

Quick Specs

• Output Power: 10 kW (AC rated)
• Phases: 3-phase
• 2 x MPP Trackers / 3x Inputs
• Backup Power: via “PV Point” an integrated basic backup power function or full backup via Batteries + external contactor/relay or pre-built backup box
• Rated Output power of 10,000W in full backup mode
• Compatible with BYD HVS and HVM series and Fronius Reserva batteries
• Input Voltage Range: 80 – 1,000 V DC
• PV Input Max Current (Isc): Up to 20A per Input
• IP Rating: IP66 (indoor/outdoor use)
• Cooling: Active cooling
• Dimensions (H×W×D): 595 × 529 × 180 mm
• Weight: 22.8 kg
• Connectivity: Wi-Fi, LAN, RS485, Modbus, Solar.web
• Operating Temperature: -25°C to +60°C
• Noise Level: < 47 dB(A)
• 10-year warranty (registration via Solar.web required
• CEC approved until AS4777-2 2020 until 06/03/2028

About The Brand

The Fronius Business Unit (BU) Solar Energy, which was founded in 1992, develops innovative solutions that generate, store, distribute and consume solar energy cost-efficiently and intelligently, all under the motto “energise your life”. Fronius Solar Energy makes it possible to use the sun 24 hours a day, paving the way for a future worth living in, in which renewable energies cover 100 percent of the world’s energy needs. Our solutions are sustainably developed and produced entirely in Europe, mainly in Austria. Fronius Solar Energy has 28 branches around the world and can point to a total output of more than 35 gigawatts of installed inverters to date. Sales are made via a global competence network of installation, service, and sales partners.

Specifications

Fronius Symo Gen24 10.0 Plus SC 10kW Three Phase Inverter 2 MPPT DATASHEET

Warranty

Fronius Symo Gen24 10.0 Plus SC 10kW Three Phase Inverter 2 MPPT WARRANTY
