Original: $2,036.95
-70%$2,036.95
$611.09The Story

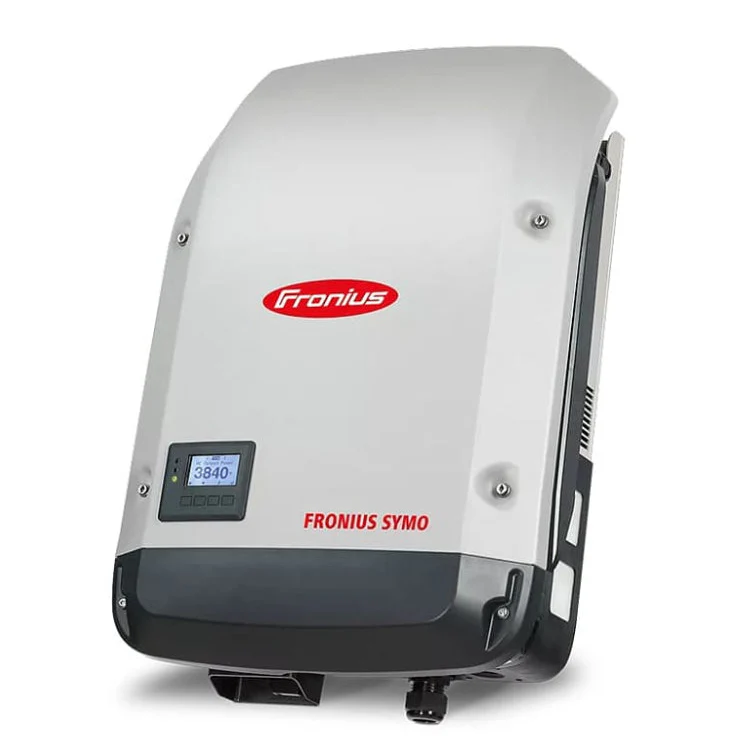

The Fronius Symo 8.2-3-M delivers robust performance for larger solar installations, offering 8.2kW of AC output and up to 16.4kW peak DC input. With two independent MPPTs, it optimises energy harvest across dual-array systems, even in complex layouts.
Note: This model has been superseded and is now in clearance, with limited stock available.
Backed by a European efficiency of 97.7%, this unit comes with advanced grid-ready features, WiFi and Ethernet connectivity, and comprehensive protection systems, making it future-proof and easy to integrate into various energy systems.
Main Features And Technology
SnapINverter Technology. Fronius SnapINverter systems feature a modular design that simplifies both installation and maintenance. The wiring section and power stage are mounted separately—first, the light connection area, then the power unit is hinged into place. This setup allows servicing without removing the whole inverter, as all cabling stays fixed on the wall.
Integrated Data Communication. Fronius inverters come with built-in monitoring features, including WLAN, Ethernet, web server, energy management, and datalogging—no extra hardware needed. Open interfaces such as Modbus TCP/RTU, SunSpec, and Fronius Solar API enable seamless integration with third-party systems and allow parallel access to Fronius Solar.web.
SuperFlex Design. Designed for adaptability, SuperFlex combines dual MPPTs, a wide DC input range, and high voltage tolerance. Each tracker supports full inverter output, enabling efficient performance across complex rooftops, shaded arrays, or irregular system layouts—all within one inverter model.
Dynamic Peak Manager. This advanced MPPT feature scans the entire voltage curve to find the global maximum power point. It automatically adjusts in real-time, helping maximise yield even under partial shading or varied light conditions.
Smart Grid Ready. Fronius inverters include grid-friendly functions to meet modern utility standards. They manage reactive and active power for stable operation in high-density PV networks and support feed-in limits with dynamic control based on household consumption.
Zero Feed-In. To comply with local grid rules, Fronius inverters offer a configurable zero feed-in mode. This ensures only self-consumed energy is used, with no excess sent back to the grid, simply by adjusting settings via the inverter’s interface.
Active Cooling. Fronius inverters use intelligent fan-based cooling to regulate internal temperatures, extending the system's lifespan and improving energy efficiency. This system prevents hot spots and comes standard across all models.
Quick Specs:
-
AC Nominal Power: 8,200W
-
Max Efficiency: 98.0%
-
European Efficiency: 97.3%
-
Includes the Datamanager 2.0 card
-
Dual MPPT Trackers
-
IP66 Rated
-
10-year warranty (registration via Solar.web required)
-
Dimensions: 432 x 642 x 205mm
-
Weight: 19.75kg
- CEC approved until 02/06/2026
Pain Points Addressed:
- Handles larger arrays without sacrificing efficiency
- Reduces complexity in managing split-array systems
- Allows remote updates and real-time data access
Use Cases:
Well-suited for commercial rooftops, large homes, or any site requiring high output and flexible array design.
About The Brand
Fronius Australia is guided by a bold vision: 24 hours of sun—a future powered entirely by clean, renewable energy. Since 2010, the company has delivered high-quality technologies and solutions to help monitor and manage sustainable solar energy systems. Through strategic partnerships, including with Fronius Solutions Partners, Fronius Australia works to drive this mission forward. The company also hosts regular Fronius Solutions Workshops, keeping installers and system integrators informed and competitive. Every solution offered is built around three key principles: Flexibility, Uptime, and Optimisation
Specifications
Fronius Symo Three Phase Inverter 2 MPPT DATASHEET
Manual
Fronius Symo 8.2-3-M 8.2kW Three Phase Inverter Installation Manual
Description
The Fronius Symo 8.2-3-M delivers robust performance for larger solar installations, offering 8.2kW of AC output and up to 16.4kW peak DC input. With two independent MPPTs, it optimises energy harvest across dual-array systems, even in complex layouts.
Note: This model has been superseded and is now in clearance, with limited stock available.
Backed by a European efficiency of 97.7%, this unit comes with advanced grid-ready features, WiFi and Ethernet connectivity, and comprehensive protection systems, making it future-proof and easy to integrate into various energy systems.
Main Features And Technology
SnapINverter Technology. Fronius SnapINverter systems feature a modular design that simplifies both installation and maintenance. The wiring section and power stage are mounted separately—first, the light connection area, then the power unit is hinged into place. This setup allows servicing without removing the whole inverter, as all cabling stays fixed on the wall.
Integrated Data Communication. Fronius inverters come with built-in monitoring features, including WLAN, Ethernet, web server, energy management, and datalogging—no extra hardware needed. Open interfaces such as Modbus TCP/RTU, SunSpec, and Fronius Solar API enable seamless integration with third-party systems and allow parallel access to Fronius Solar.web.
SuperFlex Design. Designed for adaptability, SuperFlex combines dual MPPTs, a wide DC input range, and high voltage tolerance. Each tracker supports full inverter output, enabling efficient performance across complex rooftops, shaded arrays, or irregular system layouts—all within one inverter model.
Dynamic Peak Manager. This advanced MPPT feature scans the entire voltage curve to find the global maximum power point. It automatically adjusts in real-time, helping maximise yield even under partial shading or varied light conditions.
Smart Grid Ready. Fronius inverters include grid-friendly functions to meet modern utility standards. They manage reactive and active power for stable operation in high-density PV networks and support feed-in limits with dynamic control based on household consumption.
Zero Feed-In. To comply with local grid rules, Fronius inverters offer a configurable zero feed-in mode. This ensures only self-consumed energy is used, with no excess sent back to the grid, simply by adjusting settings via the inverter’s interface.
Active Cooling. Fronius inverters use intelligent fan-based cooling to regulate internal temperatures, extending the system's lifespan and improving energy efficiency. This system prevents hot spots and comes standard across all models.
Quick Specs:
-
AC Nominal Power: 8,200W
-
Max Efficiency: 98.0%
-
European Efficiency: 97.3%
-
Includes the Datamanager 2.0 card
-
Dual MPPT Trackers
-
IP66 Rated
-
10-year warranty (registration via Solar.web required)
-
Dimensions: 432 x 642 x 205mm
-
Weight: 19.75kg
- CEC approved until 02/06/2026
Pain Points Addressed:
- Handles larger arrays without sacrificing efficiency
- Reduces complexity in managing split-array systems
- Allows remote updates and real-time data access
Use Cases:
Well-suited for commercial rooftops, large homes, or any site requiring high output and flexible array design.
About The Brand
Fronius Australia is guided by a bold vision: 24 hours of sun—a future powered entirely by clean, renewable energy. Since 2010, the company has delivered high-quality technologies and solutions to help monitor and manage sustainable solar energy systems. Through strategic partnerships, including with Fronius Solutions Partners, Fronius Australia works to drive this mission forward. The company also hosts regular Fronius Solutions Workshops, keeping installers and system integrators informed and competitive. Every solution offered is built around three key principles: Flexibility, Uptime, and Optimisation
Specifications
Fronius Symo Three Phase Inverter 2 MPPT DATASHEET
Manual
Fronius Symo 8.2-3-M 8.2kW Three Phase Inverter Installation Manual
