Enepower EBC50H-ID Black Indoor Open Rack Battery Cabinet 10

The Enepower EBC50H-ID Battery Cabinet is a heavy-duty indoor battery rack designed for 19-inch rack-mount battery modules.

Built to support residential, commercial and light industrial energy storage systems, it provides a clean, organised way to house high-capacity lithium battery modules in a single, compact enclosure. Designed for flexibility, the EBC50H-ID can accommodate up to 10 × 4RU modules or 12 × 3RU modules, allowing installers to configure systems with capacities of up to 51.2 kWh, depending on the selected battery.

Constructed from 2.0 mm galvanised steel with a black powder-coated finish, the cabinet is built for durability in indoor environments. The open-rack design allows easy cable routing and airflow, while compliance with international rack and safety standards ensures compatibility with a wide range of battery brands and system layouts. Clear RU markings and adjustable mounting brackets make spacing and alignment straightforward, reducing installation time and helping ensure consistent module placement.

Please Note: This product is oversized and heavy, additional shipping charges may apply to regional and residential addresses. Contact us for a quote or more information.

Compatible Battery Modules - Suits most standard 19" rack mount batteries, including:

• 4RU size such as Pylontech US5000, Drypower DP-12400-R, DP-24200-R, DP-51100-R, BSL B-LFP48-100E, Mictronix MPS-24-2.5, Mictronix MPS-48-5.1

• 3RU size such as Pylontech US3000, Pylontech UP2500, AERL LiFe2-5120S, Discover AES 5120, ZYC Simpo 5000, Aeson APS5000, BYD LV Flex, 2RU Size, such as Pylontech US2000

Main Features

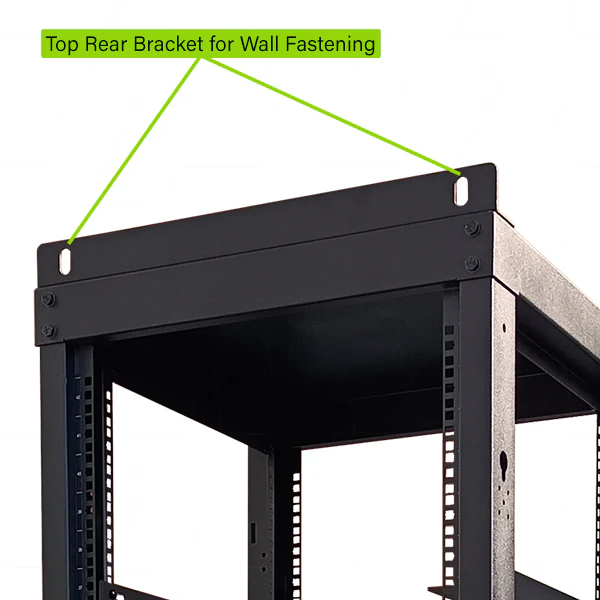

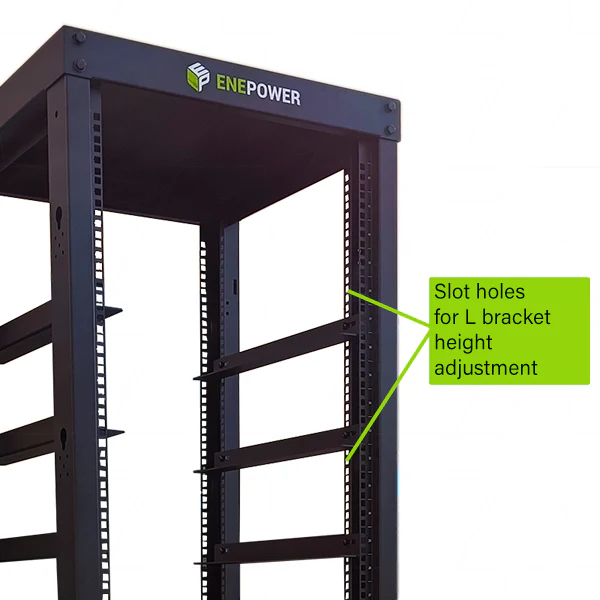

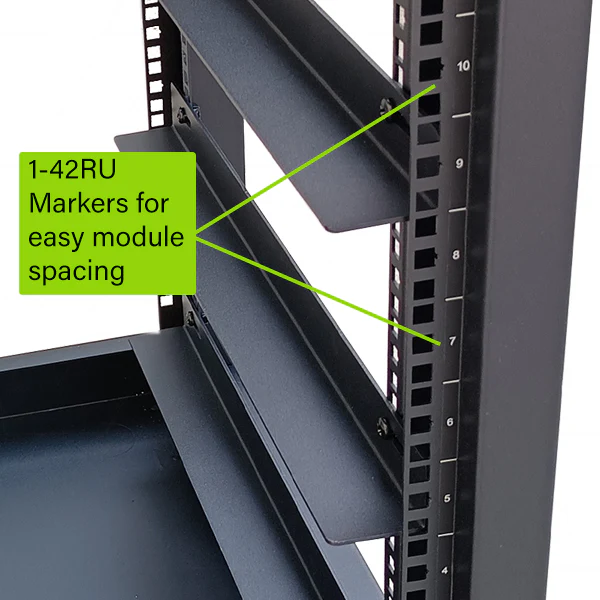

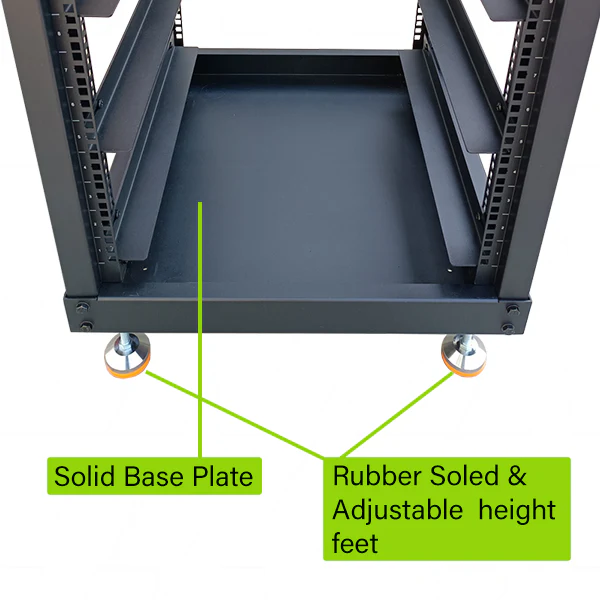

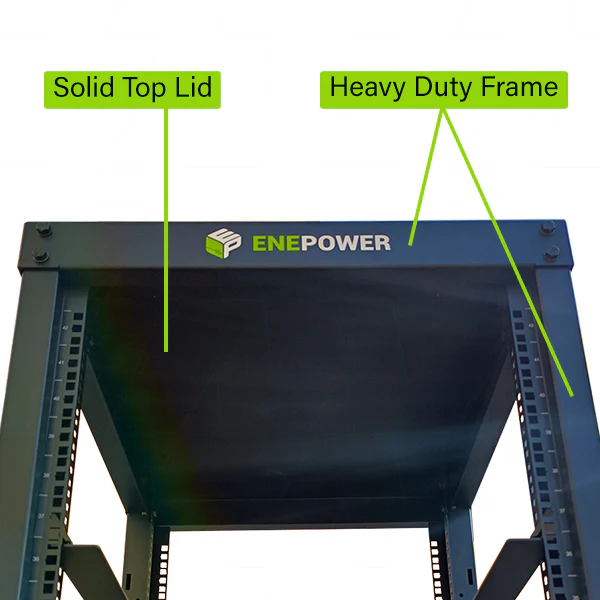

The powder-coated galvanised steel frame offers long-term structural strength and corrosion resistance. Adjustable rubber-soled feet allow the cabinet to be levelled on uneven floors for stable placement. Multiple cable knockouts on the top and bottom plates simplify cable entry and system wiring. A rear top bracket enables optional wall fixing, increasing stability and allowing a load capacity of up to 600 kg when secured. Adjustable L-brackets and clear RU numbering support flexible battery configurations from different manufacturers.

Quick specs:

• Indoor protective battery rack for 19-inch modules

• Capacity: up to 10 × 4RU or 12 × 3RU battery modules

• Maximum system capacity: up to 51.2 kWh (battery dependent)

• Material: 2.0 mm galvanised steel, black powder-coated (RAL9005)

• IP rating: IP20 (indoor use)

• Dimensions: 2071 H × 580 W × 580 D mm

• Net weight: 59 kg

• Cabinet warranty: 3 years

Specifications

Enepower EBC50H-ID Battery Cabinet 10 DATASHEET

Manual

Enepower EBC50H-ID Battery Cabinet 10 ASSEMBLY GUIDE
