The Story

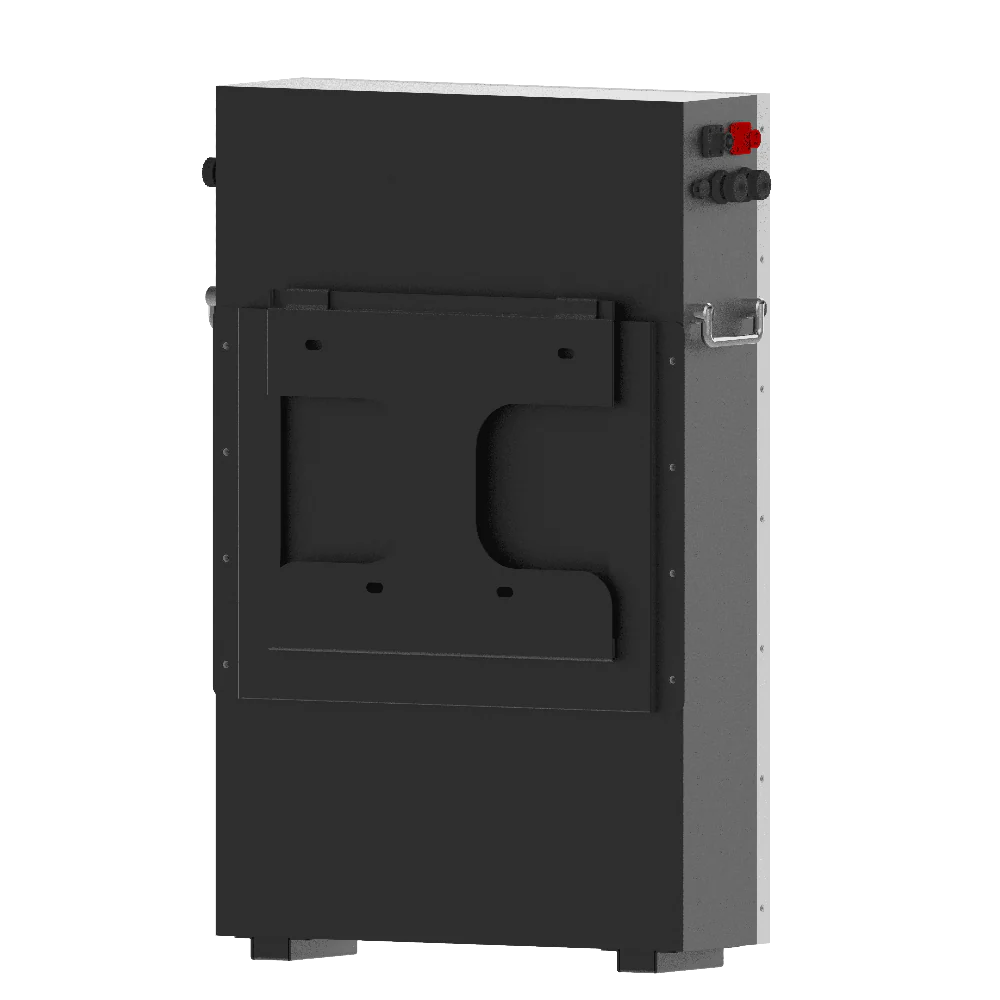

The Deye RW-M 6.1-B is a state-of-the-art Wall mounted Lithium Iron Phosphate (LFP) battery designed to provide reliable, safe, high-efficiency power storage solutions for residential and light commercial applications.
CEC approved and IP65 rated for external installation this battery provides versatile installation options, a long lifespan, high power density and complete protection for your energy storage needs.
Technical Specifications:
- Battery Chemistry: LiFePO4
- Capacity: 120 Ah
- Energy: 6.14 kWh
- Rated DC Power: Peak (2 mins, 25℃) 150 kW
- Dimension (W/H/D): 510 mm 740 mm 145 mm (without base)
- Weight: Approx. 58 kg
- Operating Temperature: Charge: 0～55℃ / Discharge: -20℃～55℃
- IP65 protection level rated enclosure
- Storage Temperature: 0℃～35℃
- Humidity: 5%～95%
- Altitude: ≤ 2000 m
- Warranty Period: 10 years
- Energy Throughput: 20 MWh @ 70% EOL
- Certifications: CEC, UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50
Main Features:
Enhanced Safety. CEC tested and approved, equipped with an advanced Battery Management System (BMS) in a robust IP65 rated external enclosure, the RW-M6.1 offers comprehensive protection for peace of mind.
Versatile Design. With its modular, wall-mounted construction, this battery is easy to install and can expand up to 32 units, accommodating both residential and commercial energy needs up to a huge 196 kWh!
Durable Performance. With over 6,000 charge cycles and a wide operating temperature range (-20°C to 55°C), the RW-M6.1 is built to last in diverse conditions.
Convenient Monitoring. Enjoy hassle-free maintenance and control with remote monitoring, automatic networking and firmware upgrades.
Eco-Friendly Innovation. Non-toxic and pollution-free materials make this battery a greener choice for sustainable energy storage.
Accessories Included:
About The Brand:
Specifications
Click Here To View Deye RW-M6.1-B Lithium Iron Phosphate (LFP) Battery DATASHEET
Manual
Click Here To View DEYE RW-M6.1-B Lithium Iron Phosphate (LFP) Battery MANUAL
