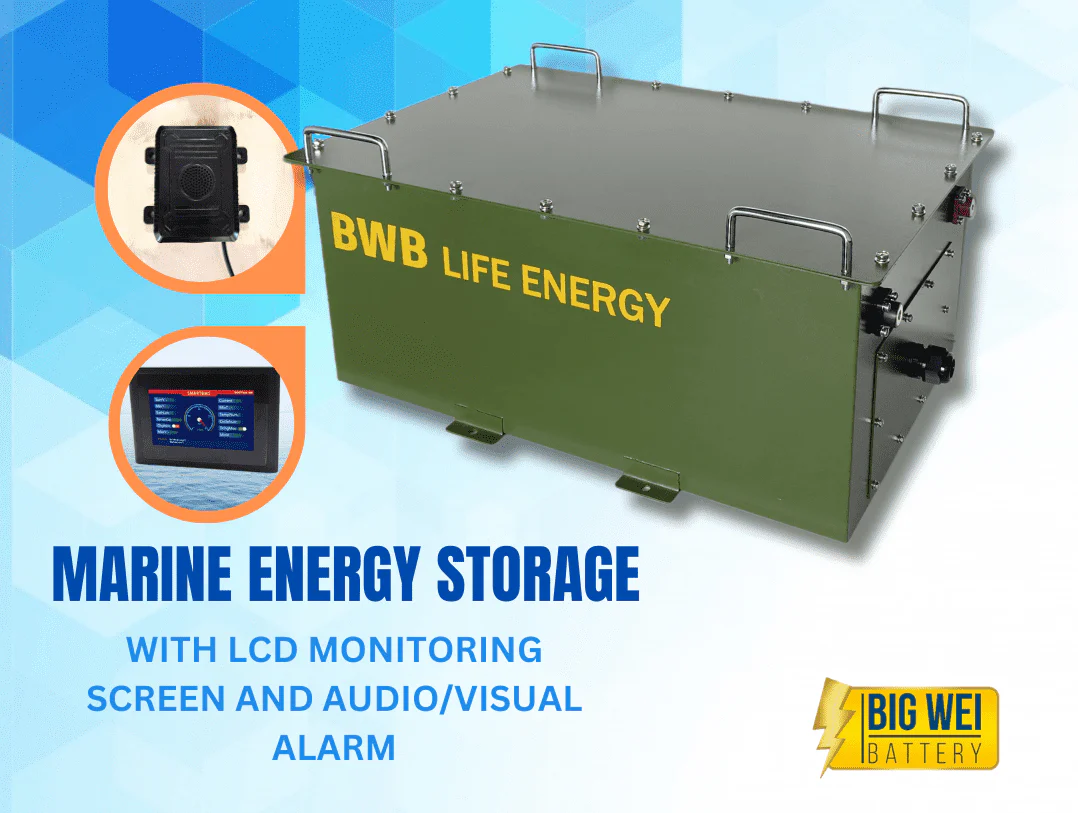

Big Wei 48V 200AH Marine IEC62619 Certified LifePO4 Battery - Aus Made BWB SS48200A(M)

The Big Wei 48V 200AH Marine IEC62619 Certified LifePO4 Battery - Aus Made BWB SS48200A(M) is housed in durable stainless steel and offers long-lasting performance, corrosion resistance, and reliable power for marine applications.

Whether  for business or recreation, Ferry, Fishing or Houseboat, Sailing or Super Yacht...

"Captain, we have a battery to suit your vessel"

Battery Features:

• Audible and visual alarms according to AS/NZS 3004.2 (2014) standards

• Can be connected in parallel up to 3 units

• 304 Stainless Steel construction

• Lifting handle for easy transportation

• Made in Australia
• 8 Year product warranty and Llfetime free service (see manual for conditions)
• IP67 rating

• IEC62619 certified


Also Available in:

• Big Wei  48V 280AH Marine Battery LiFePO4 Deep Cycle BWB SS48280A(M) - IEC62619 Certified
• Big Wei 24V 400AH Marine Battery LiFePO4 Deep Cycle BWB SS24400A(M) - IEC62619 Certified

Quick Specs:

Nominal Voltage: 51.2V
Rated Capacity: 200AH
Usable Capacity: 90%
Max. Charge Voltage: 58.4V
Max. Continuous Charge Current: 200A
Max. Continuous Discharge Current: 200A
Over-Current Charge/ Discharge Delay: 10S
Short Circuit Protection Delay: 400uS
Operating Temperature: 0-70℃
BMS Low Voltage Cut-off: 40V
Weight: 89.6 kg
Dimensions: 62.4 x 41.4 x 26 cm (excluding handles)

Advantages of LiFePO4:

• Lighter weight

• Longer cycle life

• More usable capacity

• Faster charging

• Higher discharge current

• Lower self-discharge rate

Australian Standards Compliance: These marine batteries meet the AS/NZS 3004.2 (2014) standards, including the requirement for the BMS to provide audible and visual alarms before a disconnection event at the vessel’s operating position. For further details, please refer to https://www.amsa.gov.au/.

Manual

Click Here To View The Big Wei Marine Battery MANUAL
