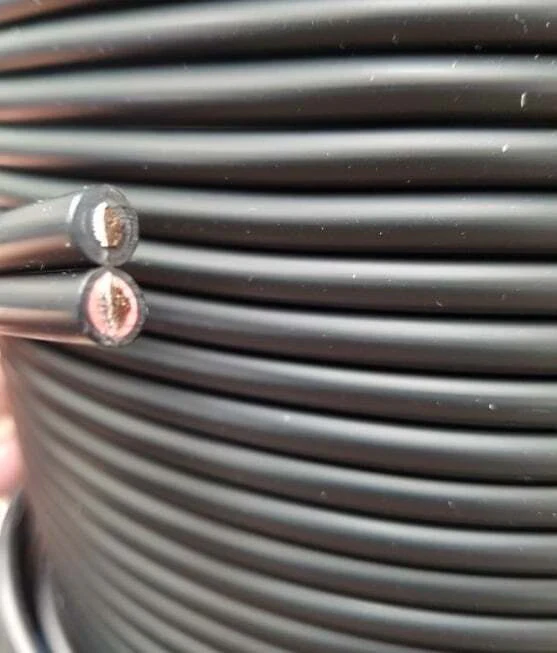

Premium Twin PV1-F Solar Cable is essential for reliable connections for all solar applications.

This listing is for 100m bulk drum - Please contact us for cut lengths.
Available in both 4mm2 and 6mm2 options, with tinned copper conductors and weather and UV-resistant insulation, it ensures safe and consistent energy transfer in outdoor conditions.

This twin-core solar cable is flexible, durable, and designed for long-term performance. Rated up to 55A (4mm²) and 70A (6mm²), it supports higher power systems while meeting strict international safety standards for solar installations.

Main Features

Efficient Power Transfer – Tinned copper conductors reduce energy loss and improve conductivity.
Outdoor-Ready – UV and heat-resistant insulation provides long-lasting protection in all weather.
Easy Installation – Flexible twin-core design simplifies handling and setup.
Certified Safe – Complies with TÜV IEC62930 and EN50618 standards for solar use.

Quick Specs Table

Specification	4mm² Twin PV1-F Solar Cable (100m Roll)	6mm² Twin PV1-F Solar Cable (100m Roll)
Standard / Certification	TÜV IEC62930 / EN50618	TÜV IEC62930 / EN50618
Construction (Twin Core)	2 × 4 mm²; 56 strands × 0.29 mm	2 × 6 mm²; larger conductor size
Insulation Material & Thickness	XLPO; avg. 0.70 mm, min. 0.60 mm	XLPO; similar construction
Jacket Material & Thickness	XLPO; avg. 0.80 mm, min. 0.68 mm	XLPO; similar construction
Voltage Rating	AC 1.0 kV / DC 1.5 kV	AC 1.0 kV / DC 1.5 kV
Temperature Rating	–40 °C to 120 °C; short-circuit 250 °C	–40 °C to 120 °C
Current Rating @ 60 °C	55 A	70 A
Weathering / UV Resistance	720 h UV test, no cracking	UV-resistant
Thermal Endurance / Lifespan	25 years	25 years
