The Sonnen Batterie Evo 10kWh AC Coupled Battery is a CEC approved high-performance home energy storage system engineered for reliability, safety and long-term durability.

With a usable storage capacity of 10 kWh and a continuous output of 5 kW, the Sonnen Batterie Evo is ideal for managing solar energy use day and night. Whether you're maximising self-consumption or preparing for outages, the Evo seamlessly integrates into your home's energy ecosystem.

CEC approved and built for outdoor installation with an IP56-rated enclosure, the Evo is resilient against Australia’s harsh weather conditions. Its lithium iron phosphate battery chemistry ensures a longer lifecycle and added safety. Designed and manufactured in Germany, this all-in-one system simplifies energy storage with single-phase grid connection and robust backup capabilities.

Customers Please Note: This is a very heavy item, free shipping to the nearest freight depot or unloading facilities are required, otherwise tailgate fees may apply. Please contact us for more information.

Kit includes:

Carton 1 - 3000286 enclosure, inverter and plinth
Carton 2 - 3000292 accessory kit (energy meter, CTs, MCBs, label kit, etc.)
Carton 3 - 4000630 5kWh battery module 1
Carton 4 - 4000630 5kWh battery module 2

Main Features

10 kWh usable storage: Optimised for daily solar energy cycling and household needs.
5 kW continuous output: Consistent power delivery for essential loads.
CEC approved: Eligible for rebates and incentives
Outdoor-rated (IP56): Weather-resistant design for flexible installation.
Integrated backup power: Supports up to 7.05 kVA for 60 seconds and 5.3 kVA for 30 minutes.
Long service life: 10-year warranty or 10,000 cycles with high-efficiency LFP cells.
Smart control: Ethernet connectivity for monitoring and control.

Quick Specs

Battery capacity: 11kWh nominal/10kWh useable
Inverter capacity: 5kW continuous /7.05kW surge
Supports up to 6kW 1PH PV inverter in backup mode
Ethernet internet connection only per Sonnen warranty - Wifi not supported
Dimensions (W×H×D): 710 × 1400 × 427 mm
Weight: Approx. 163.5 kg
Backup Current: 22 A
Operating Temp: -5°C to 45°C

Sonnen Batterie Evo - Quick & Easy Installation

Installer training (required for commissioning): https://sonnen.com.au/become-installer/

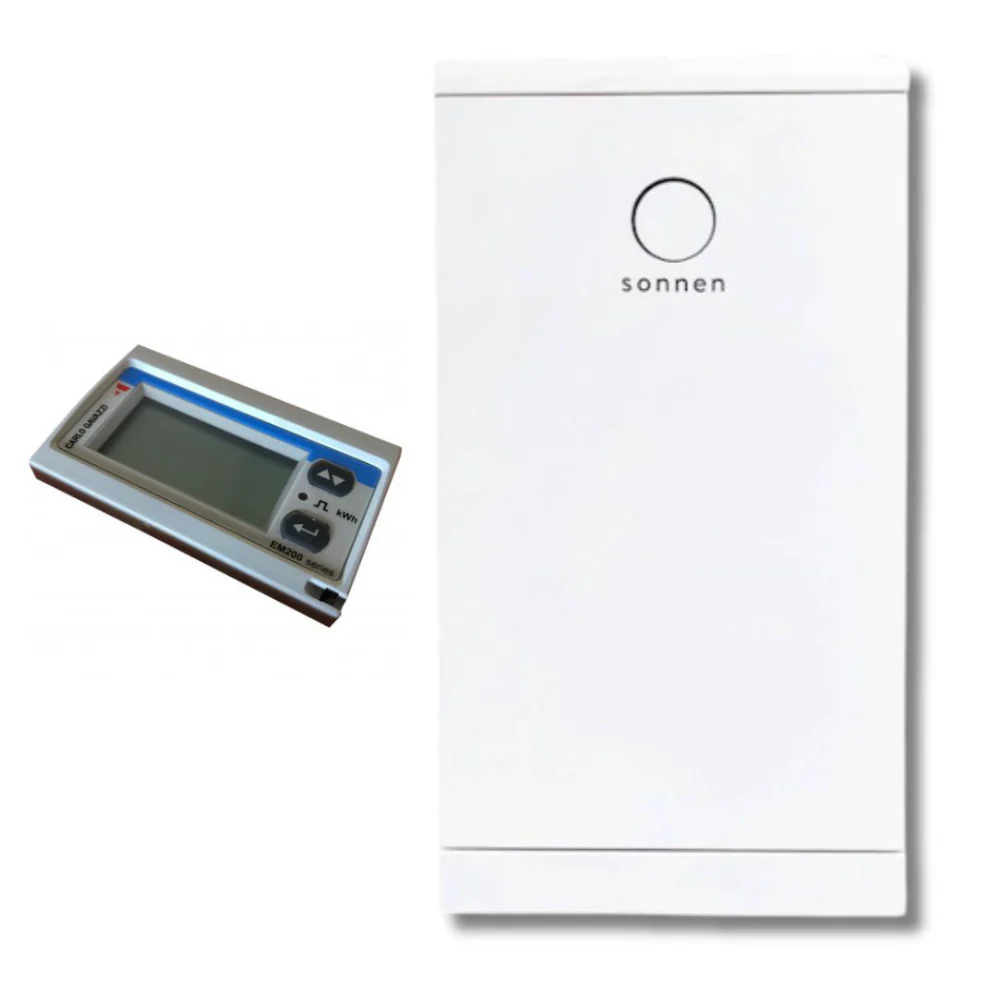

Available with sonnenBatterie LCD

The Sonnen LCD Display Programming Tool is a dedicated interface device used to program and configure Sonnen energy and power meters, particularly in three-phase Sonnen Batterie installations.

This tool is essential for correctly setting up the included energy meter to ensure accurate monitoring and communication between the meter and the battery management system.

Main Features

Specifically built for sonnen energy and power meters
Enables accurate configuration of meter settings
Required for three-phase and advanced system setups
Simple LCD interface for on-site programming
Durable and portable—designed for field use
